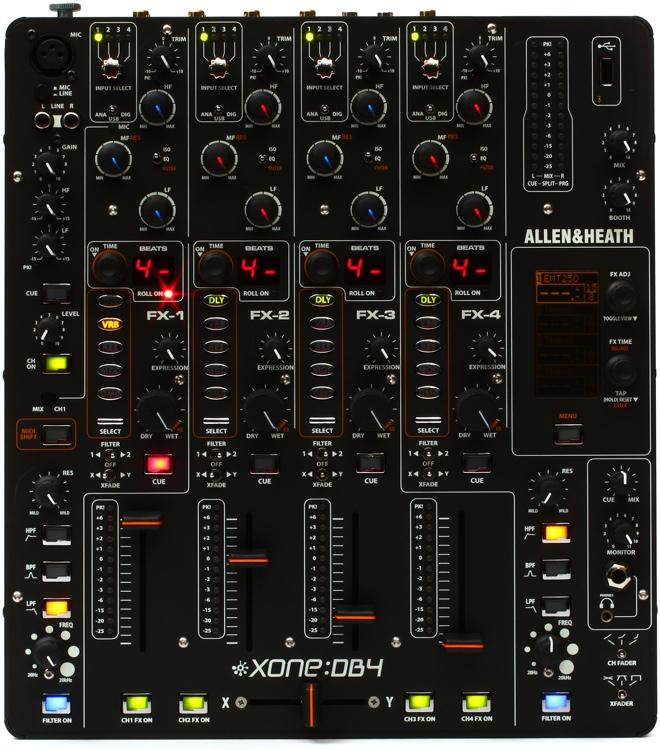

Allen & Heath XONE:DB4 4-Channel Digital DJ Mixer with Effects

The Ultimate Digital DJ Mixer!
Redefine your DJ rig with an Allen & Heath Xone:DB4 digital DJ mixer! Quite possibly the most advanced 4-channel DJ mixer money can buy, the Allen & Heath Xone:DB4 puts a world of flexible routing, must-have tools, and freakishly powerful effects at your fingertips. Each of the Xone:DB4's channels comes loaded a killer DSP effects engine, 3-mode EQ/filter section, tempo syncing looper, and more. And it gets even better. There's also an 16-channel USB 2.0 audio interface and a full-fledged MIDI controller onboard, making it super easy to travel light when you DJ with an Allen & Heath Xone:DB4 mixer.





Watch Xone:DB4 - Sasha Interview Video
Watch Xone:DB4 - Dubfire Interview Vid...




Allen & Heath Xone:DB4 Digital DJ Mixer at a Glance:

Quad FX Core DSP effects engine lets you get totally creative with your tracks
Amazing EQ and filter sections give you total control over your sound
Built-in audio interface and MIDI controller gives you total integration with your favorite DJ software

Quad FX Core DSP effects engine lets you get totally creative with your tracks
You're just not going to find another digital DJ mixer that brings as much to the table as the Allen & Heath Xone:DB4. That's because Allen & Heath loaded the Xone:DB4 with their powerhouse Quad FX Core DSP engine, giving each of its four main channels a dedicated effects processor. This isn't just any effects processor either, it's the based on Allen & Heath's iLive console effects system, so it sounds amazing! Choose from delays, reverbs, modulators, resonators, and damage effects types for each channel. What's more, a beat-detection engine automatically locks your effects to the tempo. Each channel also gets its own looper. These loopers let you go from full 4-bar loops to 16th notes - perfect for creating massive buildups!
Amazing EQ and filter sections give you total control over your sound
Allen & Heath has always been known for their fantastic-sounding EQs and filters, and the Xone:DB4 DJ mixer only adds to that well-deserved reputation. Each of the Xone:DB4's four main channels gives you a 3-band trimodal EQ with standard asymmetric +6/-25dB curves or a 24dB/octave-slope +6dB/OFF isolator on each band. You can also reconfigure each channel's EQ as a highpass/lowpass filter system with adjustable resonance. That's not all! The Xone:DB4 also comes loaded with Allen & Heath's Xone dual filter system, which lets you assign each channel to one of two additional fully adjustable filters.
Built-in audio interface and MIDI controller gives you total integration with your favorite DJ software
Designed to be the beating heart of the most technologically advanced DJ rigs in the world, the Xone:DB4 comes fully equipped to integrate completely with the DJ software you use. Built into the Xone:DB4 is a fantastic-sounding 24-bit/96kHz USB 2.0 audio interface, which lets you send and receive up to four stereo channels to and from your computer. All controls except for the microphone and headphone volumes on the Xone:DB4 can also send MIDI information to your software, allowing it to play double duty as your MIDI controller. And when you hit the MIDI shift button, the Xone:DB4's loop and FX selection controls send MIDI data without changing your settings.
Allen & Heath Xone:DB4 Digital DJ Mixer Features:

Super-versatile 4-channel DJ mixer with effects, looping, and other useful performance tools onboard
Flexible routing on each channel lets you select from 12 individual stereo inputs
Inputs include 4 x stereo RCA analog, 4 x stereo S/PDIF digital, and 4 x stereo via USB 2.0
Available identical inputs on multiple channels lets you easily perform on-the-fly remixing and cool changeovers
Output patch bay makes routing signal to the mains, headphones, and other outputs easy
High-visibility OLED display lets you perform comfortably in the darkest clubs and on the brightest sunlit stages
Quad FX Core DSP effects engine gives each channel its own effects bank with delays, reverbs, modulators, resonators, and "damage" distortion effects types
Includes over 50 effects presets
Each channel has a built-in looper with selectable loop length from 1/16 beat to 4 bars
Loopers always record the full 4 bars, allowing you to continuously expanded or shrink your loops
BPM detection system automatically adjusts all time-related effects and loops to the tempo of your music
Each main channel includes a 3-band Trimodal EQ
Channel EQs can be configured with standard asymmetric EQ (+6/-25dB) bands, Isolator (+6dB/OFF with a 24dB/octave slope) bands, or as highpass/lowpass filter systems with adjustable resonance
Xone dual filter system also lets you assign each channel to 1 of 2 additional filters
Mic/Line input has 2-band EQ, gain, cue, and mix level, and you can route it to channel 1 to add effects
Built-in 24-bit/96kHz USB 2.0 interface lets you send and receive up to 4 stereo channels to and from your computer
All controls (except microphone input level and the headphones output level) send MIDI data via USB
MIDI shift button allows the Loop and FX Selection controls to send MIDI data without changing your mixer settings
User-defined settings such as meter mode, BPM range, USB audio routing scheme, and display brightness can be saved to a USB thumb drive for recall on another Xone:DB4
Allen & Heath's X:LINK protocol lets you daisy chain MIDI and power with other X:LINK-equipped devices via Ethernet cable
Heavy-duty yet lightweight aluminium chassis makes transportation easy
Custom carrying case included

Take your DJ rig to the next level with an Allen & Heath Xone:DB4 digital DJ mixer!


Tech Specs



Channels
4 + mic


Analog Inputs
2 x stereo RCA line, 2 x stereo RCA line/phono, 1 x XLR mic


Analog Outputs
2 x XLR, 2 x TRS, 1 x stereo RCA


Digital Inputs
4 x stereo S/PDIF (coaxial)


Digital Outputs
1 x stereo S/PDIF (coaxial)


Headphones
1 x 1/4"


MIDI I/O
via USB


USB
1 x Type A, 1 x Type B


Other I/O
1 x X:LINK (RJ45), 4 x Deck Start (1/8")


Faders
4 x Long Throw


Crossfader
Adjustable


EQs
Configurable as asymmetric 3-band (+6/-25dB) with kills, Isolator (+6dB/off), or Highpass/Lowpass filters


Effects
4 x effects engines, each with delays, reverbs, modulators, resonators, and damage effects


Audio Interface
4-in/4-out, 24-bit/96kHz via USB


MIDI Control
Complete MIDI control


Playback Built-in
4 x onboard loopers


Rackmountable
Yes (requires optional X:DB4-RK19 rack ear kit)


Width
12.6" (19" with rack ears fitted)


Depth
14"


Height
3.5"


Weight
11 lbs.


Manufacturer Part Number
AH-XONE:DB4
