Crane Song HEDD 192 Digital Signal Processor with 24-bit A/D & D/A Convertors

Sound Less Digital and More Analog with the HEDD192
Crane Song HEDD192 - When choosing analog-to-digital and digital-to-analog converters, you have a choice to make - do you go for something that delivers transparent conversion, or look for a little color? Thanks to Crane Song's HEDD192 (Harmonically Enhanced Digital Device), now you can have your cake and eat it too. HEDD gives you independent 2-channel A/D and D/A converters that offer transparent conversion up to 192kHz via AES/EBU or S/PDIF I/O. Once the signal is in the digital domain, HEDD's powerful DSP takes over. With the ability to mimic the distortion characteristics of analog tape and triode and pentode tubes, HEDD can turn the crispiest digital signal into something that sounds like it was recorded in 1976.
Crane Song HEDD192 at a Glance:

Breakthrough technology generates tube/analog sounds in the digital domain
Use for tracking, mixing, or mastering
Selectable input sources
Transformerless balanced I/O

Tube Sound in the Digital DomainHEDD, short for harmonically enhanced digital device, is a technological breakthrough in signal processing. HEDD is engineered to be musically transparent while providing the capability of generating tube/analog sounds in the digital domain. HEDD gives any user who works with digital the ability to sound less digital and more analog.
Tracking, Mixing, MasteringApplications include: CD preparation, work station input and output, DAT machine A/D and D/A convertor replacement and effects generation (warming or changing sounds in the digital domain). HEDD 192 can be used in tracking, mixing or mastering.

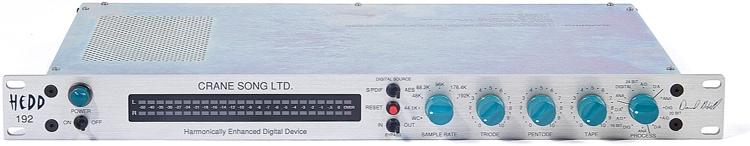

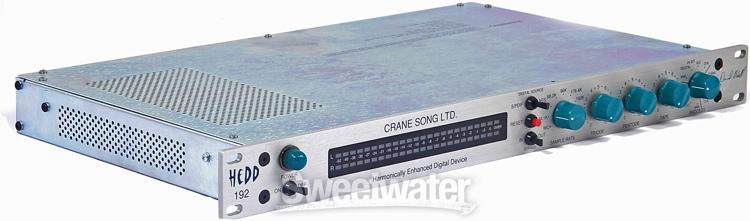

Selectable Input SourcesThe front panel controls allow the user to select input source, sample rate, and continuously variable triode and pentode sounds. The HEDD can operate as an effects device or as separate A/D and D/A convertor with the sound enhancement process applied to either the A/D or D/A convertor.

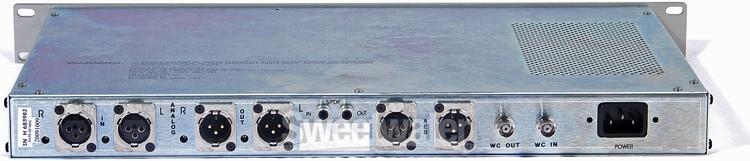

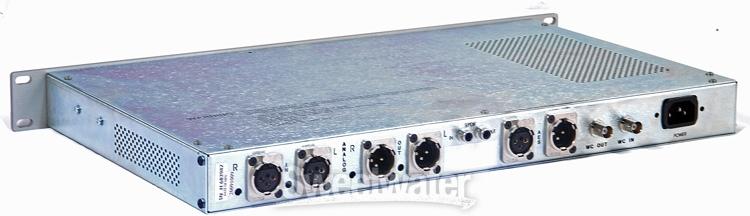

Transformerless I/OHEDD has transformerless balanced analog inputs and outputs, transformer isolated digital inputs and outputs, and uses separate power transformers and supplies for the analog and digital sections. The unit is 1 rack space tall and operates from 115V or 230V mains.
Crane Song HEDD192 Applications:

Pro Studio Recording
Project Studios
Live Audio Engineering
CD Mastering/Preparation
DAW Input & Output

Crane Song HEDD192 Features:

High-quality 24-bit A/D and D/A Convertors
24-bit Processing
Adjustable Triode, Pentode and Tape sounds
Digital I/O, AES and S/PDIF
External WC Sync Input and Output
22 Element VU Metering
Triode & Pentode Sounds
Analog Tape Compression
100V or 230V Mains
Upgradable to 192K Sample Rates

Crane Song HEDD can turn the crispiest digital signal into a sweet analog-like sound!


Tech Specs



Channels
2


A to D
Yes


D to A
Yes


Sample Rate
192kHz


Bit Depth
24-bit


Analog Inputs
2 x XLR


Analog Outputs
2 x XLR


Digital Inputs
2 x AES/EBU, 2 x S/PDIF cox


Digital Outputs
2 x AES/EBU, 2 x S/PDIF cox


Clock Inputs
1 x Word Clock


Clock Outputs
1 x Word Clock


Rack Spaces
1U


Height
1.75"


Depth
10"


Width
19"


Weight
15 lbs. shipping weight


Manufacturer Part Number
HEDD-192
