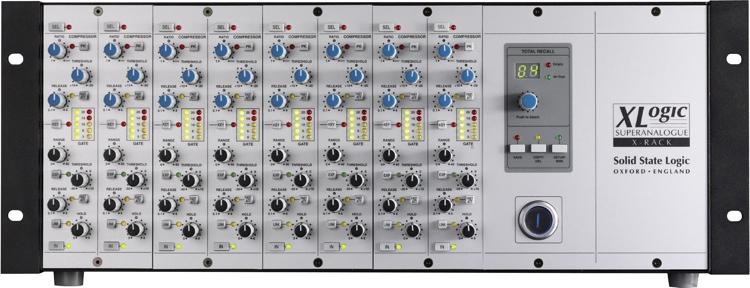

Solid State Logic X-Rack with 8 Dynamics Modules

SSL XRack with 8 Dynamics Modules
Note: Must be installed in an XRack or Mynx to function.
SSL's innovative new XRack Dynamics comes pre-loaded with eight dynamics sections of a classic SSL XL 9000 K. The SSL XRack Dynamics incorporates eight channels of compression, limiting, expansion and gating with hard or soft knee operation and peak, or RMS sensing in a single 4U rackmountable unit. All of this circuitry is designed using SSL's acclaimed SuperAnalogue design techniques to deliver fantastic sound quality with very low noise and distortion.
SSL XRack Dynamics Module At-a-Glance

SSL's Capacitor-less SuperAnalogue Design
Compression, Limiting, Expansion, and Gating with Hard or Soft Knee Operation
Total Recall

SSL's Capacitor-less SuperAnalogue DesignSSL put the same ultra-quiet, capacitor-less circuitry in the XRack Dynamics Module that they put in their super-expensive XL 9000 K mixing boards. With this capacitor-less design, you are assured that your XRack Dynamic Modules will remain phase linear year after year. This also means that each XRack Dynamics Module is an identical copy of any other one, providing a uniform sound. The SSL XRack Dynamics Module is the perfect way to get the classic sound of an SSL dynamics section and take it with you in your rack wherever you need to record or mix.
Compression, Limiting, Expansion, and Gating with Hard or Soft Knee OperationThe XRack Dynamics Module provides the classic sound of the dynamics section of a SSL XL 9000 K console which includes compression, limiting, expansion, and gating. With the XRack Dynamics Module you get Variable Ratio, Threshold and Release compressor adjustments, with RMS/Peak operation and fast/slow attack switches with LED monitoring to help keep an eye on the levels. The XRack Dynamics features balanced inputs and outputs, and has an external key to further expand its dynamic capabilities.
Total RecallThe truly amazing thing about the XRack Dynamics 8 Module is that the XRack integrates Total Recall - an absolute first in analog equipment. Total Recall allows you to set any or all of the modules in the XRack, dial in your perfect sound, and then save the preset to one of the 32 flash memory locations. Saving presets was once territory only traversed by digital outboard gear and plug-ins, but the XRack from SSL gives you the classic SSL true analog sound with the convenience of digital. Once you've found your ideal sound, save the settings for the next time you need that awesome compression you used on the last session.
And thanks to the innovative modular design of the SSL XRack Dynamics, if you should ever decide to add an EQ or mic pre to the XRack Dynamics, you can simply switch out one (or more) of the Dynamics Modules for either an EQ Module or a Mic Amp Module.
SSL XRack Dynamics 8 Module Features:

Fully Balanced inputs and outputs
Unlimited number of units can be connected together using dynamic linking
RMS compressor, over-easy. switchable to peak sensing, hard knee via pull switch
Selectable fast attack mode for fast transients
Variable Ratio, Threshold and Release compressor
adjustments, with RMS/Peak operation and fast/slow attack switches
External key operation
Independent Hold time and Release controls.
Selectable Fast Attack. Switchable Gate ratios for 40:1
Gate or 2:1 Expander Compressor and Gate LED metering
SEL switch for selecting channel to be displayed on total recall plus null LEDs per control.



Tech Specs



Number of Channels
16 (8 Stereo Channels)


Controls
Ratio, Threshold, Release (Compressor), Range, Threshold, Release, Hold (Gate)


Threshold
-20 dB to 10 dB


Ratio
1:1 to Inf.


Frequency Response
20Hz-20kHz


Side Chain Inserts
Yes


Inputs
16 x 1/4"


Outputs
16 x 1/4"


Sidechain I/O
8 x 1/4 (In)


Rack Spaces
4U


Height
7"


Depth
7.2"


Width
19"


Weight
11 lbs.


Manufacturer Part Number
729935X2
