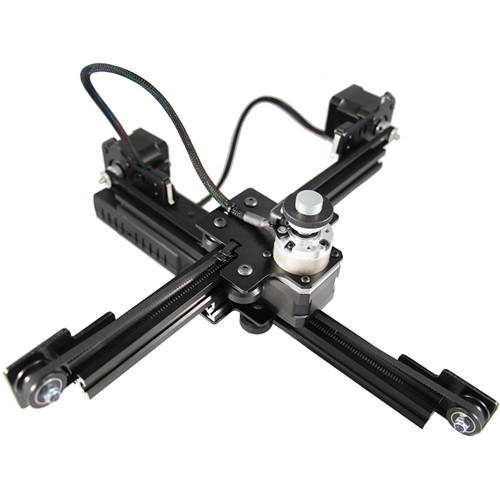

DynaMount X1-R Dual-Axes with Rotation Robotic Microphone Mount

The X1-R from DynaMount is a dual-axes, with rotation robotic microphone mount that can be controlled via Wi-Fi or USB using iOS, Android, and Chrome apps. It can be used in various applications horizontally, vertically, or at an angle, and will attach to a standard mic stand for live stage, theater, studio recordings, rehearsals, and more.
The apps make controlling your DynaMount X1-R a breeze and share an intuitive and fluid layout. Position presets are simple to use, gauges provide visual feedback of the mic's position, and after setting up your device, you can sync to it with the push of a single button.



Control Options
Adjust the position and orientation of any mounted microphone from your smartphone, tablet, laptop, or desktop using the free iOS, Android, & Chrome apps


A/B Microphone Placement
Save & use multiple position presets at the push of a button. Enjoy the freedom to precisely A/B microphone placements and ensure that you are capturing the exact sound you want


Compatible with Most Microphones & Stands
Nearly every typical microphone used in studio and live applications can be used with your DynaMount. They also attach easily to the microphone stands you already own


Dual-Axes Model
You can compare multiple measures using dual axes, which are two independent axes that are layered on top of each other. Axis-1 range of motion is 5-1/2". Axis-2 range of motion is 6-1/4" and works great for recording guitars in the studio or for live stage applications







In the Box


DynaMount X1-R Dual-Axes with Rotation Robotic Microphone Mount


12 VDC Power Adapter
10' Power Cable
Limited 90-Day Warranty for Parts and Labor








Control Method
Wi-Fi, USB


Range of Motion
Axis-1: 5.5" (14 cm) Axis-2: 6.25" (15.9 cm)


Range of Motion (Rotation)
360°


Axial Nudge Increment
Axis-1: 0.056" (0.14 cm) Axis-2: 0.063" (0.16 cm) Rotation Nudge Increment: 1°


Mounting Method
5/8"-27 thread (1.59 cm)


Max Microphone Weight
Horizontal/Level Use: 5 lb (2.3 kg) Inclined/Vertical/Upside-Down Use: 2 lb (0.91 kg)


Power
12 VDC. 2.5 A


Dimensions (L x W x H)
14.75 x 14.75 x 5.75" (37.5 x 37.5 x 14.6 cm)


Weight
5.2 lb (2.4 kg)
