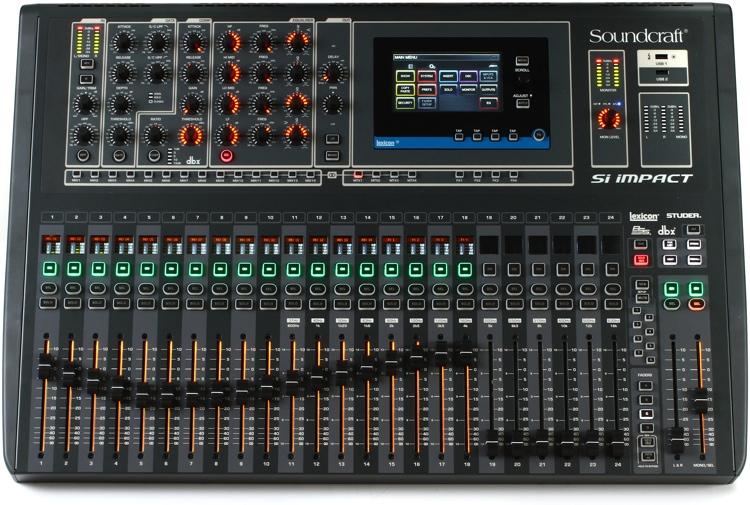

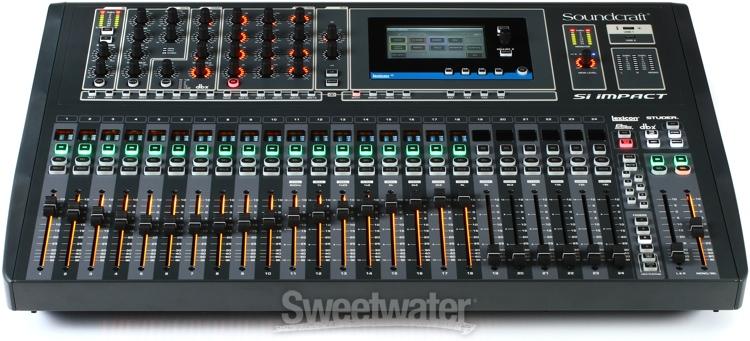

Soundcraft Si Impact 32-Channel Digital Mixer

Analog Simplicity, Digital Flexibility
Innovative digital mixing with uncompromising audio quality
The Soundcraft Si Impact digital mixer not only gives you a simplicity and ease of use that rivals an analog console, but you also get the excellent sound quality that Soundcraft has become known for over the past 40-plus years. You'll love the Si Impact's unique FaderGlow system, which provides you with at-a-glance status information, as well as its ample DSP power, great-sounding 32-in/32-out USB audio interface, and generous I/O options. Complete with a 5" touchscreen display for instant access to your parameters, the Si Impact is an ideal digital mixer for broadcasting, houses of worship, music venues, and theaters.

32 mic preamps
Eight XLR/1/4" combi jacks
40 DSP input channels
31 output buses
4-band parametric EQ on each channel
Eight VCAs and eight mute groups
26 motorized faders


Built-in stagebox connectivity
5" touchscreen display
Multicolor LCD displays on each fader
Onboard DSP
20 aux buses
Four matrix buses
Built-in 32 x 32 USB audio interface



Soundcraft Si Impact Overview



Hover over features below for a detailed description




Its streamlined design makes the Si Impact a breeze to use


Going Beyond Analog Control
Delivers analog workflow with digital flexibility

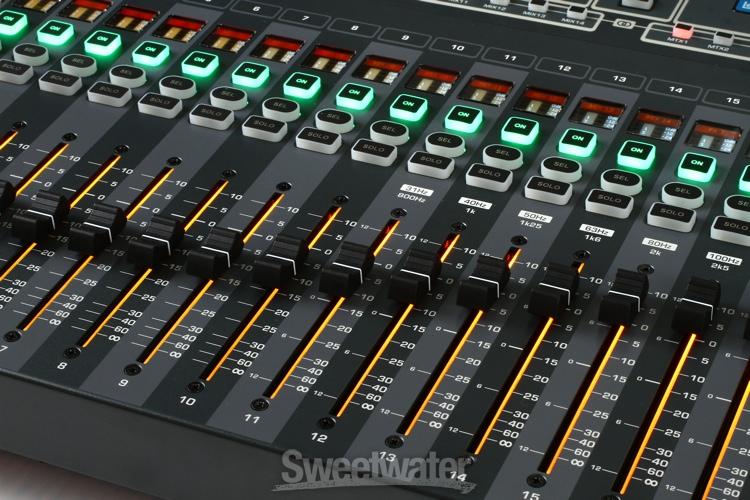

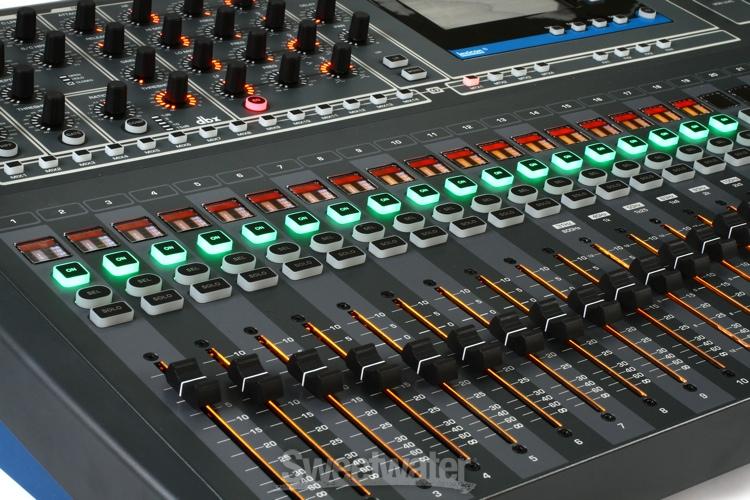

One of the Soundcraft Si Impact's strengths is that it provides you with a simple analog workflow while also offering you the flexibility that you can only obtain with a digital mixer. One-knob-one-function control means you won't have to jump around the board to change parameters, while the FaderGlow system ensures that you know exactly which functions are being controlled by which faders simply by looking at them. Each fader channel also provides you with a clear multicolor LCD display, giving you quick at-a-glance information on your levels and a fully customizable "scribble strip" to name your channels.

Streamlined analog workflow with digital flexibility
One-knob-one-function control
FaderGlow system
Clear multicolor LCD displays





Legendary British Sound
Graham Blyth-designed mic preamps and "British" equalizer
Like all Soundcraft mixers, the Si Impact is positively packed with that highly sought-after "British" sound. Thanks to its stellar-sounding mic preamps (designed by Soundcraft founder Graham Blyth) and 4-band, fully parametric "British" equalizers, the Si Impact provides you with a sound that will imbue your mixes with plenty of classic distinctive character.

Sought-after "British" sound
Graham Blyth-designed mic preamps
4-band parametric EQs on each channel



4-band parametric EQs deliver that sought-after "British" sound





World-class Effects
DSP processing from Lexicon, dbx, and BSS Audio
Featuring studio-grade reverb and effects from Lexicon, legendary dbx dynamics, and industry-standard BSS graphic EQs, the Soundcraft Si Impact's onboard DSP carries quite a pedigree. Thanks to these world-class effects, you'll be able to create polished, pro-sounding mixes without a rack full of outboard gear.

Lexicon reverb and effects
dbx dynamics processing
BSS graphic EQs on each bus





Put Your I/O Wherever You Need It
Built-in connectivity and a complete range of I/O expansion cards

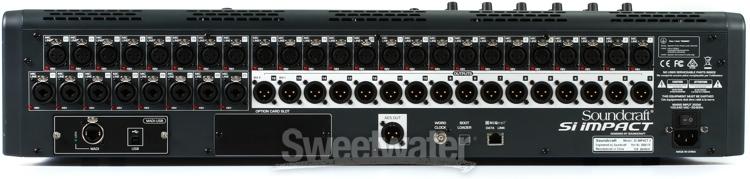

With built-in connectivity for their optional stagebox, Soundcraft's Si Impact lets you put your I/O wherever you need it. You can set up the stagebox by the band and route your sound to front of house, or you can position it in the live room for studio recording — all through a single Cat 5 cable. You can also use the Si Impact's 32 x 32 expansion card slot to integrate it with existing systems and hardware that use any of multiple I/O formats, including MADI, CobraNet, Aviom A-Net, AES/EBU, BLU link, RockNet, and Dante.

Built-in stagebox connectivity
32 x 32 expansion card slot
Compatible with MADI, Rocknet, CobraNet, Dante, and more



The Si Impact lets you send audio to your stagebox via a single Cat 5 cable




Make multitrack recordings of your performances


Make Multitrack Recordings
Pipe phenomenal-sounding audio directly into your DAW
Making multitrack recordings with the Soundcraft Si Impact is a snap, thanks to its built-in 32-in/32-out USB audio interface. A single connection to your Mac or PC is all it takes — you'll be ready to record straight to your favorite digital audio workstation.

32-in/32-out USB audio interface
Make multitrack recordings with a single connection
Compatible with all major DAWs





Remote Mixing with Your iPad
Hands-on control from anywhere
If you have an iPad, you can access the mix power of the Soundcraft Si Impact from anywhere. Simply download the iPad app, and you'll be able to mix front of house from the audience location, set mic gains and phantom power from onstage, adjust monitor levels while standing next to the musicians, or allow performers to create their own monitor mixes.

Mix from anywhere in the venue
Set mic gain and 48-volt phantom power from the stage
Adjust monitor levels while standing next to the artist
Extend the fader count of an existing control surface
Allow multiple users to control their monitor mixes



Mix from anywhere using your iPad




The easy-to-use Si Impact sounds great regardless of where you use it


A Phenomenal Digital Mixer
Streamlined workflow, flexible performance, and excellent sound quality
With its streamlined analog workflow and digital flexibility, you just can't beat the Soundcraft Si Impact digital mixer for ease of use and stellar sound quality. Whether you're in a broadcasting studio, house of worship, music venue, theater, or anywhere else, the Soundcraft Si Impact is a phenomenal digital mixer!








Tech Specs



Type
Digital


Channels
40


Inputs - Mic Preamps
32 x XLR


Outputs - Main
16 x XLR


Outputs - Digital
1 x AES/EBU (XLR)


Data I/O
Ethernet


Phantom Power
32 x Channels


EQ Bands
4-band


Busses/Groups
31 x Bus


Faders
26 x Motorized


Effects
Yes


Computer Connectivity
2 x USB (Type A), 1 x USB (Type B)


Height
6.3"


Depth
19.7"


Width
29.5"


Weight
44.1 lbs.


Manufacturer Part Number
5056170
