Toft Audio Designs ATB24

The Series 80 24-channel Console, Reborn!

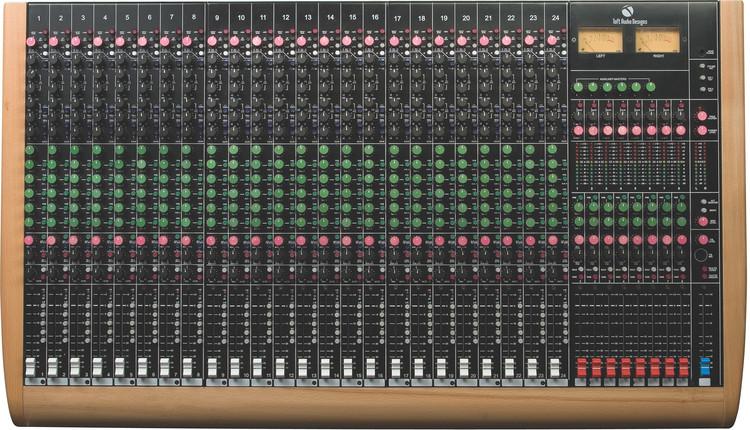

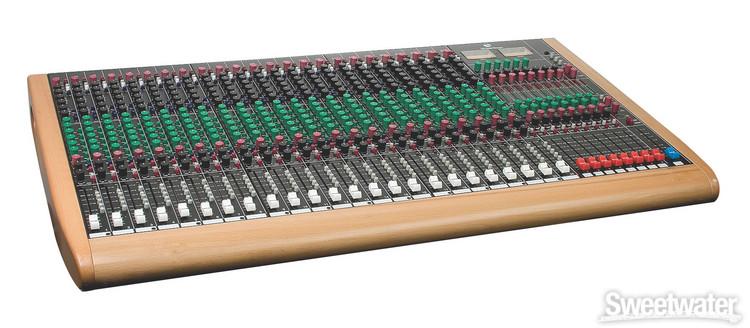

The Toft ATB24a console brings the incredible sound and features of the venerable Trident Series 80 board back to life! One of the very best analog consoles ever made, the Series 80 is revered for its accuracy, quality, and incredible vintage EQ. Malcom Toft, original designer of the Series 80 board, built all that into the ATB24a, including a premium master section. Nothing beats the feel and sound of a great analog board, and you get all the features you need plus compact functionality with the Toft ATB24a!





Watch ATB Series - Sweetwater Video
Watch Keith Nelson of Buckcherry talks ab...
Watch Malcolm Toft discusses the ATB s...




Toft ATB24a 24-channel Console at a Glance:

A legend reborn
Great onboard channel EQ
For pros and projects alike
Master control

A legend rebornOver the years, the Trident Series 80 console has heard its praises time and time again for its excellent quality, pristine accuracy, and most of all, its premium vintage equalizer. This powerful combination produced an enormous amount of hit records and is still revered as one of the best analog recording consoles made to date. Now, the Series 80 boards have been redesigned by the original designer himself, Malcolm Toft.
Great onboard channel EQThe Toft ATB Console packs the same powerful equalizer that was used on the Trident Series 80 boards. The ATB's EQ section is regarded as one of the best sounding EQs on the market today! The highly musical four-band EQ on the Toft ATB unleashes all your creativity without any limits or boundaries. The Toft ATB equalizer is an incredibly useful, great-sounding studio tool.
For pros and projects alikeThere is no doubt that the Toft ATB Console was designed to be used in professional studios. Designed by Malcom Toft, the ATB console went through countless grueling tests to meet Toft's detailed standards. For this reason, the ATB console is trusted and used by the some of the best engineers and producers around the world. But there's nothing stopping you from making stellar tracks with the ATB Series consoles - their compact footprint and value let you bring pro studio sound and features into any recording room!
Master controlThe Toft ATB Series consoles are loaded with a master control section normally seen in more expensive, high-end recording consoles. The ATB features everything from the super accurate meters, wide-range of routing capabilities, talkback function, to the eight-bus mixdown section. From top to bottom, you have everything you'll need to take control of your mix and produce the best possible recording.
Toft ATB24a 24-channel Console Features:

24 premium channel strip modules
Eight mix busses with outputs
Direct outs on every channel
Inline monitoring for every input channel strip
Additional eight monitor returns in group section
Vintage Series 80 EQ for every input channel
Six aux sends on every input channel strip
Eight fully-dedicated stereo aux returns
Super-accurate 12-stage LED meter
Balanced DI outputs
Balanced Speaker Outputs
Solo indication evey channel
Better and supported Pots
New V-Bar Module Support system
Standoff Module Support
Bourns Faders
Internal Meter Bridge Cable Included
T-Nut Support on Side Rails for easy installation on Meter Bridge

The Toft ATB24a console puts professional quality, sound, and features at your fingertips!


Tech Specs



Type
Analog


Channels
24


Inputs - Mic Preamps
24 x XLR (CH 1-24)


Inputs - Line
24 x 1/4" (CH 1-24), 24 x 1/4" (MON)


Outputs - Main
2 x 1/4"


Outputs - Direct
24 x 1/4" (CH 1-24)


Outputs - Other
2 x 1/4" (Alt), 2 x 1/4" (Master), 2 x 1/4", 8 x 1/4" (Sub)


Headphones
1 x 1/4"


Send/Return I/O
6 x 1/4" (Aux Masters), 8 x 1/4" (Monitor Returns), 8 x 1/4" (Stereo FX Returns)


Phantom Power
24


EQ Bands
4-band Sweepable Hi-Mid, Lo-Mid (CH 1-24)


Aux Sends
1 x Post, 5 x Pre/Post


Busses/Groups
8 x Bus


Faders
33 x 100mm


Channel Inserts
Yes (CH 1-24), 2 x 1/4" (Master Inserts), 8 x 1/4" (Subgroup Inserts)


Talkback
Yes


Height
5"


Width
41"


Depth
22.5"


Weight
155 lbs.


Manufacturer Part Number
ATB24a
