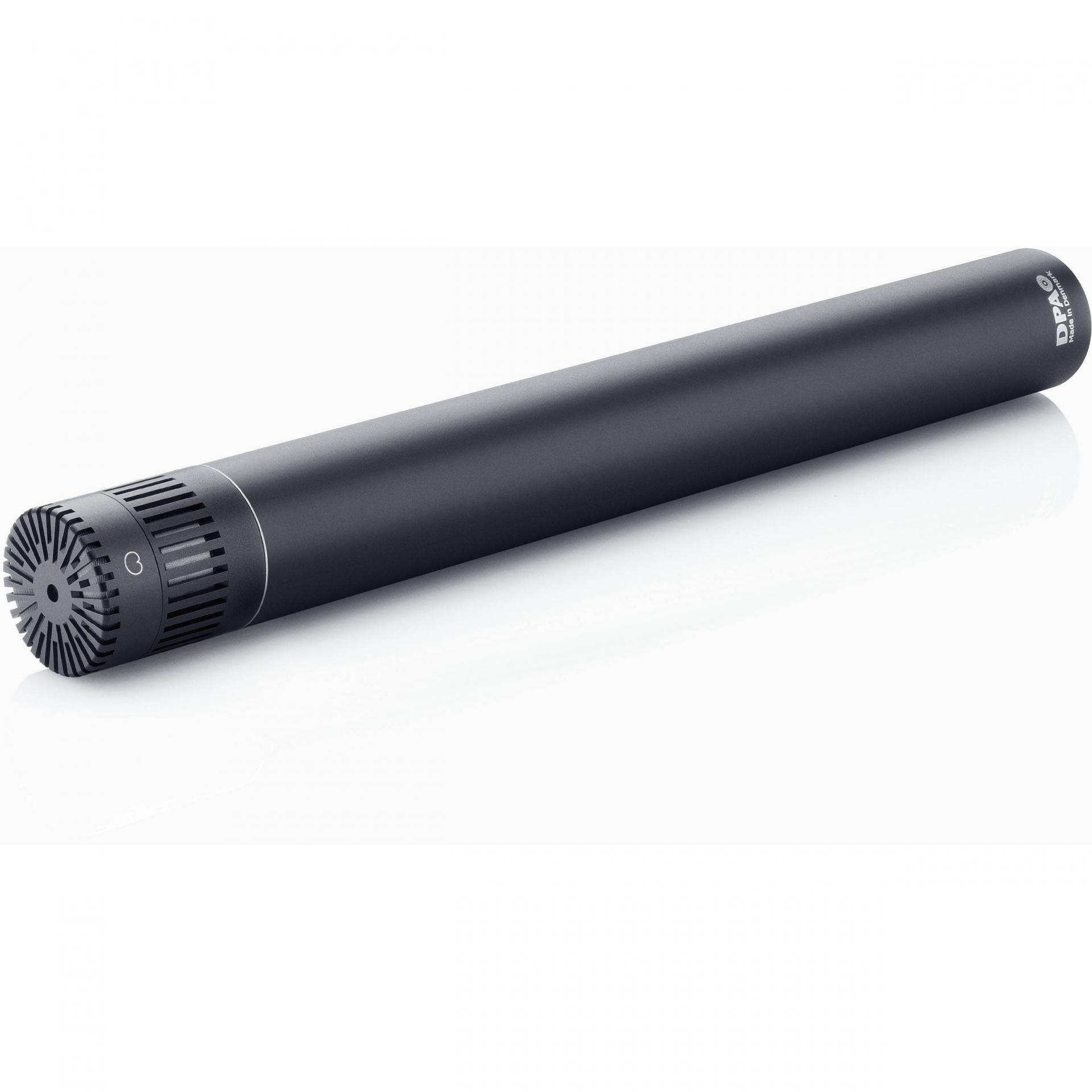

DPA Microphones 4011A Cardioid Microphone

The 4011A Cardioid Microphone from DPA is designed for capturing vocals, close miking instruments, amplifier cabinets, and other sources in live sound reinforcement and crucial recording applications. It features a cardioid condenser element for minimizing off-axis noise in spot-miking applications and an output stage that provides faithful recreations of the original source material. A switchable 20 dB pad provides added headroom and minimizes distortion while capturing transient signals. Additionally, the microphone allows you to maintain a linear tonal response when closely positioning it near speaker cabinets, percussion, and other instruments.


Cardioid pickup pattern provides superb separation between sound sources


Equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments, and vocals


Flat on-axis frequency response and maximum phase response


20 dB pad switch in the center of the XLR connector to attenuate the output of the microphone




Spec:



Operating Principle
Pressure Gradient


Transducer
Condenser


Diaphragm
0.75" (19 mm)


Polar Pattern
Cardioid


Frequency Range
20 Hz to 20 kHz


Signal to Noise Ratio
76 dB A-Weighted


Equivalent Noise Level
18 dB A-Weighted25 dB ITU-R 468


Maximum SPL
159 dB SPL


Impedance
200 ohms


Load Impedance
2 kOhms


Sensitivity
-40 dB, re: 1 V/Pa


Power Requirements
48 V+/- 4 V


Pad
Yes, 20 dB


Output Connectors
3-Pin XLR


CMMR
60 dB


Operating Relative Humidity
90%


Operating Temperature
-40 to 113°F (-40.00 to 45.00°C)


Operating Current Consumption
2.8mA


Dynamic Range
121 dB


THD
< 1.0% up to 139 dB SPL Peak






General


Length
6.69" (170 mm)


Diameter
0.75" (19 mm)


Weight
5.57 oz (158 g)






Packaging Info


Package Weight
0.85 lb


Box Dimensions (LxWxH)
10.7 x 6.1 x 2.9"
