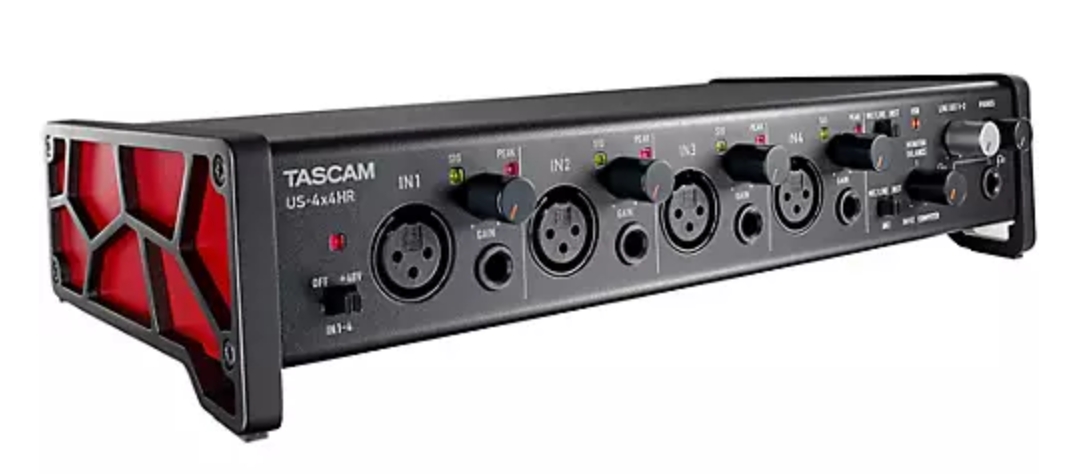

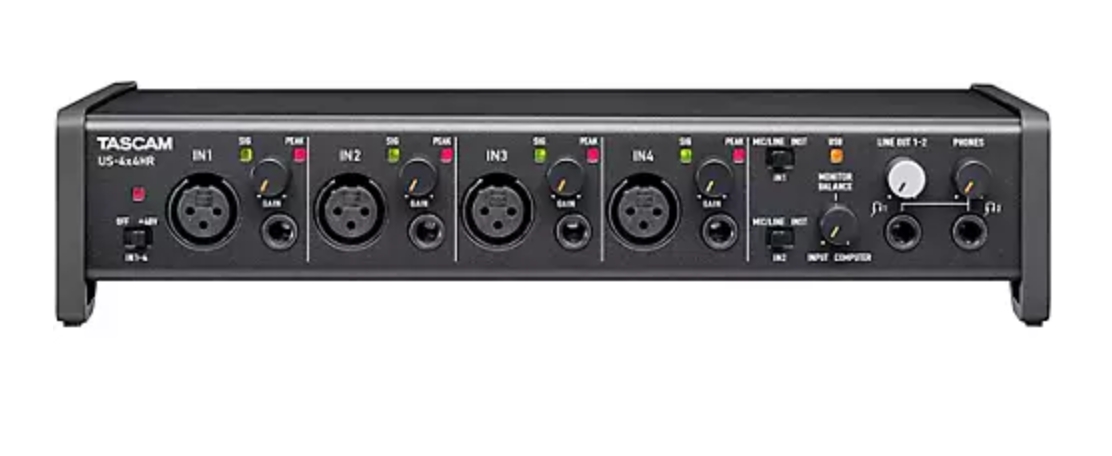

Tascam US-4X4HR 4-Channel USB Audio Interface

Audio interface with implemented MIDI In/Out ports.

The US-4X4HR is a 4 XLR mic input and 4 TRS line input (IN 1-2 guitar input support) audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support makes this interface an excellent choice for podcasts and livestreaming. This US-4x4HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192kHz support, thanks to the newly enhanced audio circuit.
Features

4-in/4-out USB audio interface
Supports up to 24-bit/192kHz audio formats
Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
4 XLR/TRS combo inputs equipped with Ultra-HDDA mic preamps and +48V phantom power
Combo TRS line inputs with guitar input support on IN1-2
TRS line outputs 1-2/3-4
Two headphone outputs
Equipped with MIDI IN/OUT terminals
USB Type-C connection (USB Type-A to Type-C cable included)
USB bus powered
*48V phantom power requires PC power supply via USB-C connection.
Zero-latency direct monitoring
Compatible with iPad and other iOS devices
Extensive lineup of bundled software, including:
Steinberg Cubase LE, Cubasis LE 3
IK Multimedia Sample Tank 4 SE
Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
OBS support


US-4X4HR 4-Channel USB Audio Interface Specifications:
Sampling frequency

44.1k/48k/88.2k/96k/176.4k/192k Hz

Quantization bit rate

24-bit

MIC IN

IN 1 / IN 2, IN 3 / IN 4
Connector
XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance
2.2k ohms
Maximum input level
(GAIN:MIN) +9dBu (2.183Vrms)
Gain
56dB

INST IN

IN 1 / IN 2
Connector
6.3 mm (1/4") TS-jack (T:HOT, S:GND), UNBALANCED
(When set to "INST" at MIC/LINE INST switch)
Input impedance
1M ohms or more
Maximum input level (GAIN:MIN)
+10dBV (3.162Vrms)
Gain
56dB

LINE IN

IN 1 / IN 2, IN 3 / IN 4
Connector
6.3 mm (1/4") TRS-jack (THOT, RCOLD, SGND), BALANCED
(When set to "MIC/LINE" at MIC/LINE INST switch)
Input impedance
10k ohms
Maximum input level
(GAIN:MIN) +20dBu (7.746Vrms)
Gain
56dB

LINE OUT

1-2, 3-4
Connector
6.3 mm (1/4") TRS-jack (T: HOT, R: COLD, S: GND), BALANCED
Output impedance
210 ohms
Nominal output level
+4dBu (1.228Vrms)
Maximum output level
+20dBu (7.746Vrms)

PHONES

Connector
6.3 mm (1/4") stereo phone jack
Maximum output level
45mW+45mW or more (THD+N 0.1% or less, 32 ohms loaded)

MIDI IN /OUT

Connector
Din 5-pin
Format
Standard MIDI format

USB


Connector
USB Type-C
Format
USB 2.0 HIGH SPEED
(480Mbps)

Power

When connected to PC
USB bus powered
AC Adapter (TASCAM PS-P1220E, included)
When connected iOS/iPadOS
AC Adapter (TASCAM PS-P1220E, included)

Power consumption


2.25W

Dimensions (WxHxD)

296 x 65 x 160 mm (including protrusions)

Weight

3.53 lb. (1.6kg)

Operating temperature


5 to 35°C

Accessories

AC adapter(TASCAM PS-P1220E)
USB cables (Type-A to Type-C)
Set of DAW software installation guides
Set of DAW plug-in software installation guides
Owner's Manual (including warranty)

Computer system requirementsWindows

Compatible computers
Windows computer with a USB 2.0 (or higher) port
CPU type/speed: 2GHz or faster dual core processor (x86)
Memory: 2GBor more
Driver: ASIO ASIO2.0, WDM, MIDI

Mac

Compatible computers: Mac with a USB 2.0 (or higher) port
CPU type/speed: 2GHz or faster dual core processor
Memory: 2GB or more
Driver: Core Audio, Core MIDI

iOS/iPadOS device

Driver: Core Audio

Supported OSWindows

Windows 10 (October 2020 Update) New, Windows 8.1, Windows 7

Mac

macOS Big Sur New, macOS Catalina, macOS Mojave, macOS High Sierra (10.13)

iOS

iPadOS 14 New, iOS 14 New, iPadOS, iOS 13, iOS 12
