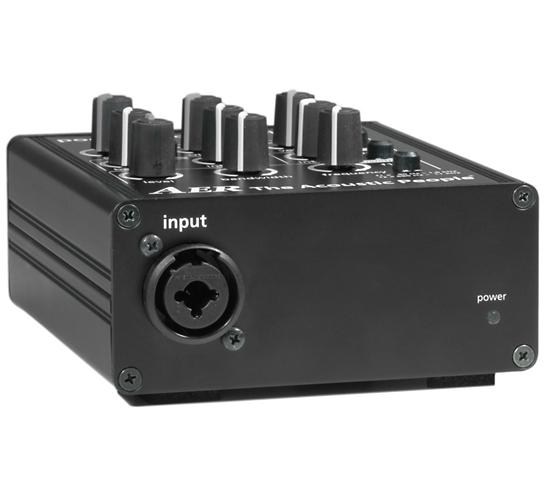

AER Colourizer 1 Channel preamp / DI-Cox with Sound Shaping Controls

OVERVIEW


The AER Colourizer is a preamplifier for instrument or microphone.Simply insert The Colourizer into the signal chain between source and next point in the audio path (e.g. amplifier or mixing desk ) and your signal will be stronger, richer and more stable. It is an ideal recording companion, and also works well to stabilize your feed to the snake in a live environment. Quiet, clean, and made with a rugged build quality, the Colourizer is designed to give you quiet, clean reliable signal for many years without operational inconsistencies.
Top quality DI.



FEATURES

Parametric EQ
Enhancer
Tone control
Dead silent



Step up to uncompromising quality. Order today.



SPECIFICATIONS
AER Colourizer 1 Channel preamp / DI-Cox with Sound Shaping Controls


Input
Switchable microphone or line input
Combo socket, XLR and 1â4" jack (6.35 mm)
Line mode (jack input)
Unbalanced high impedance input for
instrument pick-ups and line-level sources
Gain adjustment range: +3...+20 dB
Min. input voltage: 100 mV (-20 dBV)
Max. input voltage: 3 V (+10 dBV)
Input impedance: 2.2 Mï "" 150 pF
Signal-to-noise ratio (A-weighted)
Min. gain: 104 dB
Max. gain: 98 dB
Frequency response: 20 Hz...20 kHz / ï±1 dB THD + N (1 kHz): < 0.3%
Phantom power: Ring contact of line out is
connected to ring contact of input.
Any external phantom power applied at the ring of line out will be available at the input.
mic mode (XLR input)
Balanced microphone input 1 = ground, 2 = positive (+), 3 = negative (-) Gain adjustment range: +4...+40 dB Min. input voltage: 10 mV (-40 dBV) Max. input voltage: 3 V (+10 dBV) Input impedance: 2.1 kï
Unbalanced: 1.1 kï Signal-to-noise ratio (A-weighted):
Min. gain: 104 dB
Max. gain: 95 dB Frequency response: 20 Hz...20 kHz / ï±1 dB THD + N (1 kHz): < 0.1% Phantom power: 24 V, R = 1.2 kï per
terminal, switchable, total current max. 10
mA, short circuit protected Warning: External equipment may be
damaged by inappropriate use of phantom power.
In case of doubt keep the 24 V phantom power switch off (not pushed).
Clip indicator Red LED Headroom: 12 dB

Outputs
Line out: Unbalanced line output after master
Mono jack, 1â4" (6.35 mm) Nominal output voltage: 1 V (0 dBV)
Max. output voltage: 9 V (+19 dBV) Output impedance: 47 ï
Min. load impedance: 2 kï
Residual noise (master fully anticlockwise):A-weighted: 1.2 μV (-118 dBV) Balanced XLR output 1 = ground, 2 = positive (+), 3 = negative (-) Level control Nominal output voltage (differential),adjustment range: 41...410 mV (-28...-8 dBV) Output impedance:47 ï each terminal to ground
Min. load impedance (differential): 1 kï
Residual noise (both channels in line mode):A-weighted: 2.3 μV (-113 dBV)
