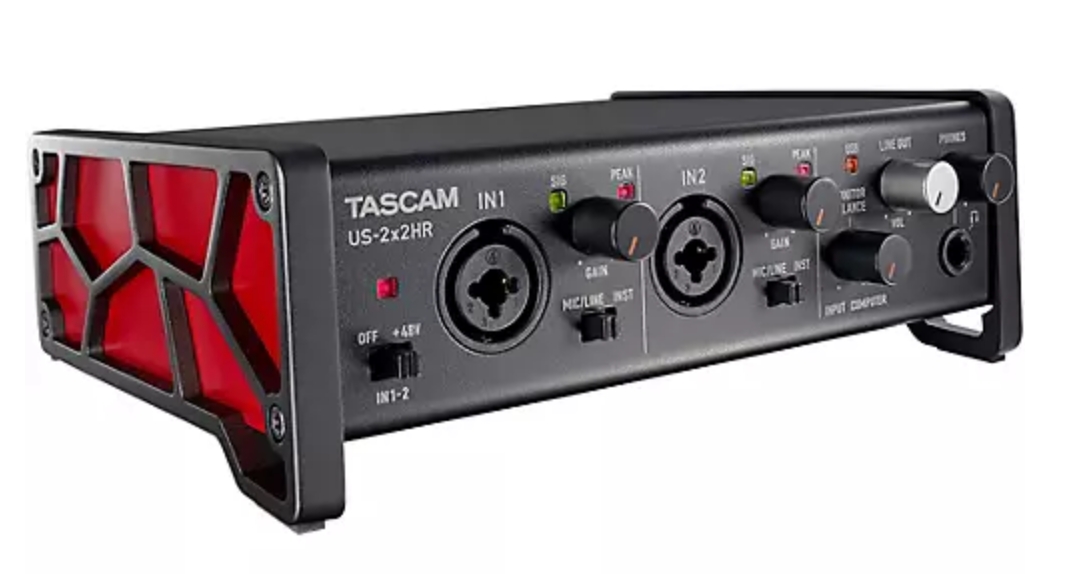

TASCAM US-2X2HR 2-Channel USB Audio Interface

Simple and intuitive operation, plus sophisticated looks.

The US-2X2HR 2-Channel USB Audio Interface features 2 combo jack mic/line inputs with guitar input support audio interface with implemented MIDI IN/OUT ports. It is equipped with a loopback function and OBS support making this interface applicable for podcasts and live streaming. The US-2x2HR offers simple and intuitive operation, plus sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192kHz support, thanks to the newly improved audio circuit.

Features


2-in/2-out USB audio interface
Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
Supports up to 24-bit/192kHz audio formats
2 Combo (XLR) combo inputs equipped with Ultra-HDDA mic preamps and +48V phantom power
2 Combo (TRS) line inputs with guitar input support
TRS line output 1-2
Headphone output
Equipped with MIDI IN/OUT terminals
USB Type-C connection (USB Type-A to Type-C cable included)
Powered by USB bus power
Zero-latency direct monitoring
Compatible with iPad and other iOS devices
Extensive line-up of bundled software
Steinberg Cubase LE, Cubasis LE 3
IK Multimedia Sample Tank 4 SE
Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
OBS support

Included items


US-2x2HR
USB cable (Type-A to Type-C)
DAW software installation guide
DAW plug-in software installation guide set
Owner's manual?warranty card included)


US-2X2HR 2-Channel USB Audio Interface Specifications:
Sampling frequency

44.1k/48k/88.2k/96k/176.4k/192k Hz

Quantization bit rate

24-bit

MIC IN-IN 1 / IN 2

Connector:
XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance:
2.2k ohms
Maximum input level (GAIN:MIN):
+9dBu (2.183Vrms)
Gain:
56dB

INST IN-IN 1 / IN 2

Connector:
6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED
(When set to "INST" at MIC/LINE INST switch)
Input impedance:
1M ohms or more
Maximum input level (GAIN:MIN):
+10dBV (3.162Vrms)
Gain:
56dB

LINE IN-IN 1 / IN 2

Connector:
6.3 mm(1/4") TRS-jack (T: HOT, R: COLD, S: GND), BALANCED
(When set to "MIC/LINE" at MIC/LINE INST switch)
Input impedance:
10k ohms
Maximum input level:
(GAIN:MIN) +20dBu(7.746Vrms)
Gain:
56dB

Analog audio outputs LINE OUT 1-2

Connector:
6.3 mm (1/4") TRS-jack (T: HOT, R: COLD, S: GND), BALANCED
Output impedance:
210 ohms
Nominal output level:
+4dBu (1.228Vrms)
Maximum output level:
+20dBu (7.746Vrms)

PHONES

Connector:
6.3 mm (1/4") stereo phone jack
Maximum output level:
18mW+18mW or more (THD+N 0.1% or less, 32 ohms loaded)

MIDI IN /OUT

Connector:
Din 5-pin
Format:
Standard MIDI format
USB
Connector:
USB Type-C
Format:
USB2.0 HIGH SPEED (480Mbps)

Power

When connected PC USB bus powered
AC Adapter (TASCAM PS-P520E, sold separately)
When connected iOS/iPadOS AC Adapter (TASCAM PS-P520E, sold separately)
Power consumption:
1.75W

Dimensions

186(W) × 65(H) × 160(D) mm (including protrusions)

Weight

2.43 lb. (1.1kg)

Operating temperature

5 to 35°C

Accessories

USB cables (Type-A to Type-C)
Set of DAW software installation guides
Set of DAW plug-in software installation guides
Owner's Manual (including warranty)

Computer system requirements

Windows
Compatible computers: Windows computer with a USB 2.0 (or higher) port
CPU type/speed: 2GHz or faster dual core processor (x86)
Memory: 2GB or more
Driver: ASIO ASIO2.0, WDM, MIDI

Mac

Compatible computers: Mac with a USB 2.0 (or higher) port
CPU type/speed: 2GHz or faster dual core processor
Memory: 2GB or more
Driver: Core Audio, Core MIDI
iOS/iPadOS
Device: Driver Core Audio
Supported OS
Windows
Windows 10 (October 2020 Update) New , Windows 8.1 , Windows 7
Mac
macOS: Big Sur New , macOS Catalina , macOS Mojave , macOS High Sierra (10.13)
iOS
iPadOS: 14 New , iOS 14 New , iPadOS , iOS 13 , iOS 12

THSD: www.music-blvd.com $179
