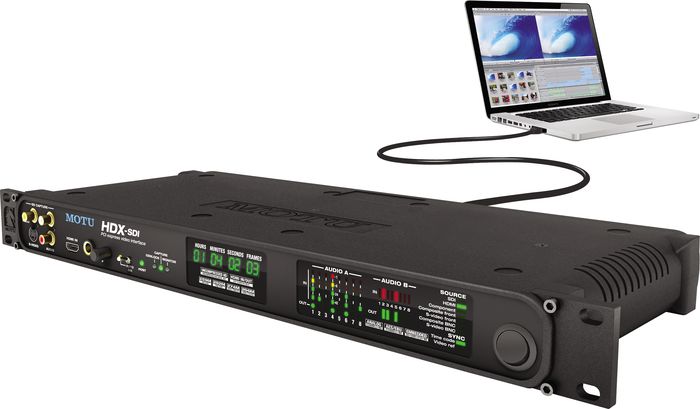

MOTU HDX-SDI (Laptop)

Transform your Mac or PC laptop into an HD/SD video production workstation with plenty of I/O.

The MOTU HDX-SDI Video Interface with Express card adds comprehensive, professional video capture and monitoring to your Mac or Windows laptop. The HDX-SDI also brings support for uncompressed HD and SD, Apple ProRes, and many other popular workflows—support for Premiere Pro on Windows is coming soon. With the blazing speed of PCI Express, the HDX-SDI interface turns your Mac or PC desktop or laptop computer into a powerful HD/SD video production workstation equipped with all the I/O you need. Connect the MOTU HDX-SDI to any source, from SD camcorders to today's latest professional HD cameras, then log and capture HD or SD clips directly into your video editing software. For the best-possible image quality, capture uncompressed video via HD-SDI or HDMI with 4:2:2 10-bit color depth and full-raster 1920 x 1080 HD resolution. Many cameras feed their uncompressed SDI, HDMI, or component output directly to the HDX-SDI from the camera's optics and imager, before compression, for absolutely pristine picture quality during capture. If you prefer to edit more conveniently at a lower data rate, use Apple ProRes, ProRes HQ or the codec of your choice in Apple Final Cut Pro or Adobe Premiere Pro. Because the MOTU HDX-SDI interface delivers 10-bit uncompressed video to the computer, you are not limited to a particular codec and are instead free to go with the host-based workflow of your choice, including many popular file-based formats now supported by today's video editing software. By using a codec directly supported by your editing software, you eliminate unnecessary extra stages of compression and decompression for maximum CPU efficiency and smooth editing. As you edit, monitor your timeline with pixel-for-pixel accuracy on a large plasma screen via digital HDMI output, with color-corrected balance on an LCD reference monitor via HD-SDI output, or with the real-world look of a consumer display via analog HD or SD component, composite or S-Video output. Use the MOTU HDX-SDI to capture and monitor up to 16 channels of audio (analog, AES/EBU or embedded) at sample rates up to 96 kHz. Employ Sony 9-pin machine control for advanced Batch Capture and Edit to Tape operations. Keep everything frame-accurate using time code and video reference. For high-performance desktop operation, the HDX-SDI interface provides PCI Express card connectivity for today's ultra-fast, multi-core Mac and PC towers. Need to go mobile? The MOTU HDX-SDI is also available with an ExpressCard adapter for any current-generation Mac or Windows laptop equipped with an ExpressCard slot. From initial capture to final finishing, the HDX-SDI delivers exceptional video I/O performance and quality. MOTU Video I/O The HDX-SDI provides comprehensive video input and output connectivity. Its SDI section supplies 2 mirrored outputs so that you can connect both a deck and a monitor simultaneously. The front panel provides convenient inputs for legacy SD capture and full 10-bit uncompressed HDMI capture from today's latest HD camcorders. The component section provides both RGB and YPbPr, but they can alternatively serve as CVBS (composite) in/out or even Y/C (S-Video) in/out. Sync The MOTU HDX-SDI provides comprehensive video and audio synchronization features, including time code I/O, video ref with loop through, large front panel time code readout and RS-422 (Sony 9-pin) machine control. Synchronize your HDX-SDI system with reliable performance and fast lock-up times. Perform batch capture and edit/export to tape operations in Final Cut or Premiere with a 9-pin compatible camera or deck connected to the HDX-SDI video interface. Audio I/O Audio I/O The MOTU HDX-SDI delivers comprehensive audio capture and monitoring in stereo or full surround with support for both 5.1 or 7.1 configurations. The HDX-SDI provides four 8-channel banks of audio input and output: analog, AES/EBU digital, SDI embedded, and HDMI embedded. Up to two banks can be active at a time, giving you 16 channels of simultaneous audio input and output. The front panel provides comprehensive audio activity LEDs, plus eight channels of assignable 4-segment input metering. The HDX-SDI video interface's unique bank of quarter-inch analog TRS connectors makes it a snap to connect cameras and a wide range of video and audio gear up to eight channels at a time. No other interface offers professional analog audio connectivity with this much convenience. The MOTU HDX-SDI's stereo (BNC) AES/EBU digital audio input and output are continuously sample-rate converted. This means trouble-free digital audio transfers, regardless of clock source. Say goodbye to clicks, pops, and headaches due to digital audio clocking issues.


Features

HD/SD PCI Express video interface for Mac and Windows provides HD and SD capture and playback for any current-generation PCI- or ExpressCard-equipped computer
Connects to a laptop via ExpressCard connectivity for mobile operation
Comprehensive video capture & monitoring supports all standard SD and HD video formats up to, and including, 1080p30 (720p, 1080i, 1080p & 1080PsF)
Cross-platform software support—supports Apple Final Cut Pro on the Mac and Adobe Premiere Pro on Windows
Captures and plays uncompressed HD and SD: 10-bit 4:2:2 color depth and 1920 x 1080 resolution
Support for ProRes and other popular codecs: capture and monitor full-raster (1920 x 1080 or 1280 x 720) Apple ProRes, ProRes HQ, or other popular host-based codecs supported by Apple Final Cut Pro and Adobe Premiere Pro
Support for file-based workflows lets you capture, edit, and monitor in any codec supported natively in Final Cut or Premiere, with no transcoding needed
Broadcast-quality: 10-bit 4:2:2 signal path throughout
ASC CDL color grading provides flexible, industry-standard color adjustment with separate settings for capture and playback
HDMI capture and monitoring provides both HDMI in and out
Sync and machine control advanced sync features include time code, large front-panel time code display, video ref input, and 9-pin machine control
Comprehensive audio: capture or monitor up to 16 channels of audio via any two 8-channel banks of TRS analog, AES/EBU digital, or embedded (SDI or HDMI) at sample rates up to 96kHz
Single rack space form factor: professional rack-mount operation, or remove the rack-mount brackets for convenient desktop use
International operation: auto-switching internal power supply with powersave mode
Apply industry standard color adjustments to your video signal during either capture or monitoring

Sync

Video reference in / thru: resolve to blackburst, composite, or HD Tri-level sync
Time code in and out generate and resolve to time code in all formats, including LTC, VITC (SD analog), D-VITC (SD-SDI), and embedded (SD/HD-SDI)
RS-422 machine control: control the transports of a connected camera or video deck from Final Cut or Premiere via standard 9-pin protocol
Front panel time code display provides frame-accurate time code readout when converting or generating time code, or during playback from host software
Direct Digital Synthesis: DSP-driven phase lock engine provides ultra-low jitter

Video I/O

Video reference in/thru: resolve to blackburst, composite, or HD Tri-level sync
Time code in and out: generate and resolve to time code in all formats, including LTC, VITC (SD analog), D-VITC (SD-SDI) and embedded (SD/HD-SDI).
RS-422 machine control: control the transports of a connected camera or video deck from Final Cut or Premiere via standard 9-pin protocol
Front panel time code display: provides frame-accurate time code readout when converting or generating time code, or during playback from host software
Direct Digital Synthesis: DSP-driven phase lock engine provides ultra-low jitter

Audio I/O

16 channels of simultaneous audio input and output
Supports all standard audio sample rates from 44.1 to 96kHz
8 x quarter-inch TRS analog in and out via direct connection (no breakout cable)
2 x RCA analog input on the front panel for SD Composite/S-Video capture
2 x AES/EBU digital in and out on BNC connectors with sample rate conversion (SRC)
8 x AES/EBU digital in and out on standard DB25 breakout cable (purchased separately)
8 x HD/SD-SDI embedded audio in and out
8 x HDMI embedded audio in and out
Front panel headphone jack with dedicated volume control
Front panel audio channel metering: two 8-channel banks of status LEDs assignable to any 8-channel audio bank (analog, AES/EBU, or embedded) in or out



Quality post-production video work can now be done on the road. Get this interface today!
