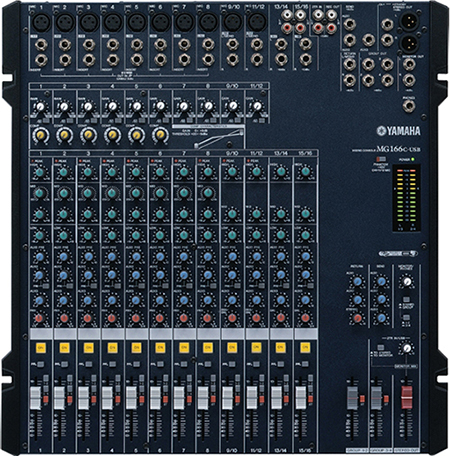

Yamaha MG166C-USB 16 Channel USB Mixer With Compression

Superior sound quality backed by technology from the Yamaha professional MG166CUSB live sound mixer.

Whether you have a mixing application that involves only a few channels, or up to 32 inputs with substantial signal routing versatility, Yamaha's MG series offers a console that will give you the capacity, control, and performance you deserve. All models are remarkably compact and lightweight for superior handling and portability, but absolutely no compromises have been made in terms of features, performance, or durability. The MG audio mixers offer an extraordinary blend of technology: some inherited from professional Yamaha mixing consoles you're likely to see in distinguished halls throughout the world, and some developed specifically to deliver optimum performance in the MG-console format. In either case these performance-packed Yamaha mixers are founded on a world-spanning network of human and technological resources that crystallize to deliver features that really matter, and sound that is undeniably superior.

Features

Easy operation

Lightweight, portable design


Versatile connectivity and pro-class connectors


Built-in channel compressors


High-performance microphone preamplifiers with switchable phantom power


3-band Channel EQ and high-pass filters


Aux/Effect sends


Smooth 60mm faders and illuminated channel ON switch


The MG series mixers offer the sound quality and performance your music deserves. Click or call to order today!


MG166C-USB 16 Channel USB Mixer With Compression Specifications:



Mic/Line inputs: 10


Line inputs: 8 mono + 4 stereo


Mixer input channels: 16


Group busses: 4


AUX busses: 3


Main busses: stereo


Total harmonic distortion (THD+N): Less than 0.1%, 20Hz-20kHz


Frequency response: 0, +1, -3dB, 20Hz-20kHz


Equivalent input noise (EIN): -128dBu


Residual output noise: -98dBu


Crosstalk (1kHz): -70dB


Power supply adaptor: PA-30 AC adaptor (AC35VCT, 1.4A); 100V, 120V, 220V, 230V or 240V, 50/60Hz


Power consumption: 30W


Dimensions: 478x105x496 mm


Net weight: 5.3 kg


Accessories: Owners manual, AC adaptor
