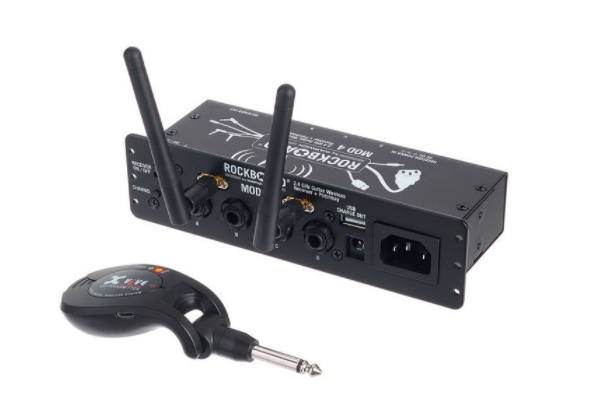

Rockboard MOD 4 & U2 Transmitter

Wireless receiver and patchbay for pedalboards incl. transmitter

Compatible with the XVive U2 Guitar Wireless System
2.4 GHz ISM band for worldwide use
30 m average range (without obstacles)
24 Bit / 48 kHz uncompressed digital signal transmission
20 Hz - 20 kHz frequency range
Latency: 5 ms
> 103 dB Dynamic range
- 85 dBm RF sensitivity
0.2% distortion (THD)
4 Selectable channels
Suitable for MOD slots in RockBoard pedalboards
Compatible with a wide range of other pedalboards
Acts as a central access point to your effects setup
Removable front panel for mounting on or under pedalboards
Power supply via optional 9 V DC power supply (2.1 x 5.5 mm barrel connector, polarity (-) inside)
Current consumption 500 mA
Passive operation possible (only patchbay without wireless system)
Dimensions with front panel (W x D x H): 175 x 85 x 47 mm
Dimensions without front panel (W x D x H): 160 x 85 x 33 mm
Weight: 500 g

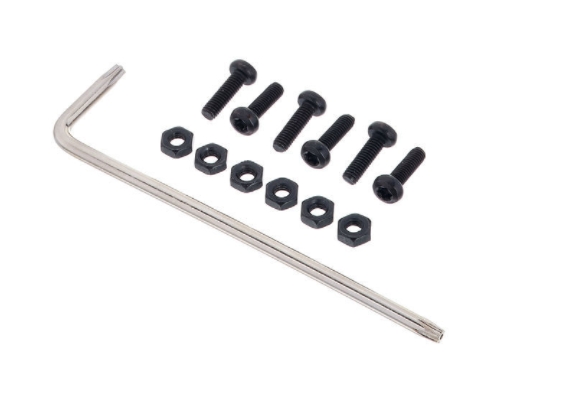

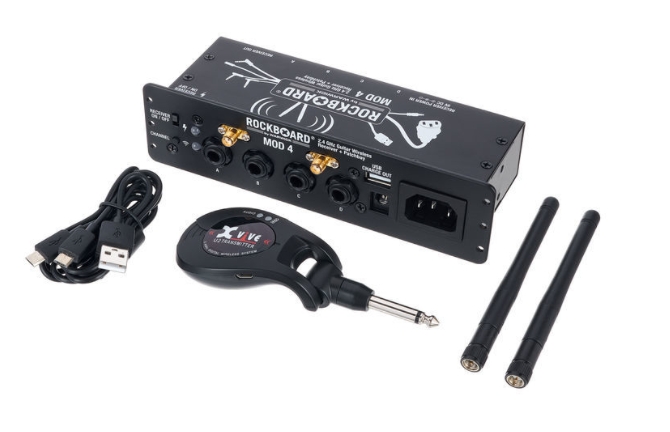

Includes XVive U2 wireless transmitter, 2 antennas, 1 USB cable, mounting screws and nuts

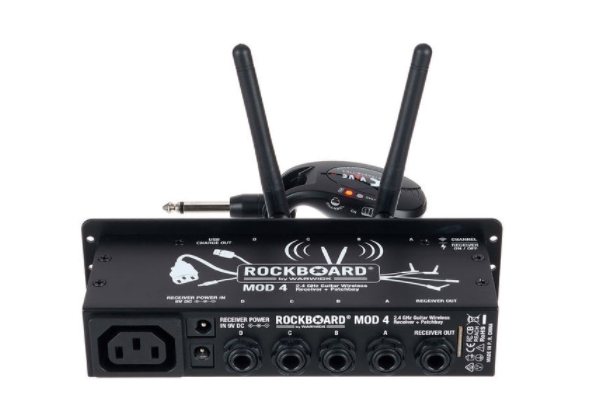

Connectors:

4 x 6.3 mm Stereo jack thru (TRS)
1 x 6.3 mm Mono jack receiver audio output (TS)
1 x DC 2.1 x 5.5 mm Hollow plug Thru
1 x AC IEC Thru
1 x USB Type A Charge output
