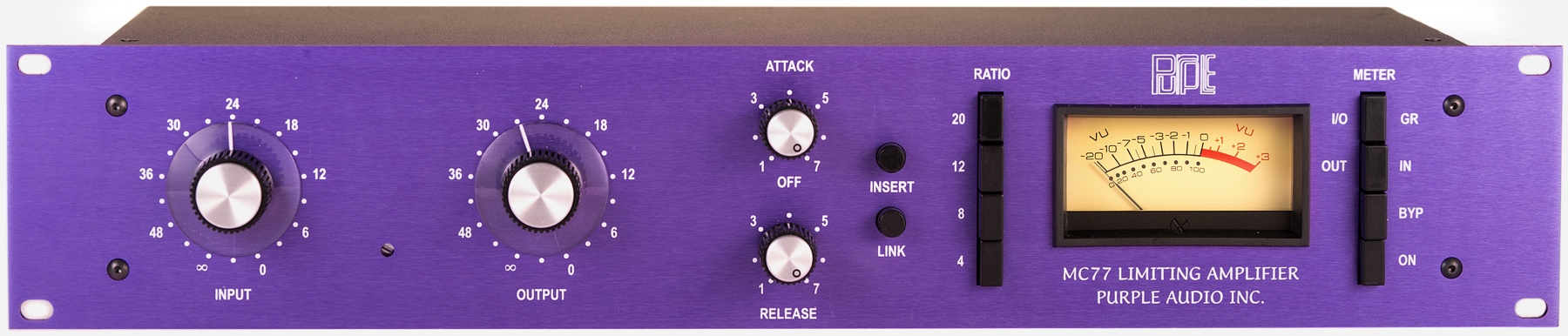

Purple Audio MC77

How Do You Improve On a Classic Limiting Amp?
How do you improve on a classic? In the case of the MC77, Purple Audio began by re-creating the circuit schematic of the "E" revision of the most iconic solid-state limiting amplifier in history. Off to a great start, they then spec'd modern, high-performance components matched to the original, for a pristine all-discrete signal path. The MC77 matches the functionality and lightning-fast response time of the original, but goes further with sidechain and stereo linking functionality. Bottom line: the Purple Audio MC77 can be a major asset in your quest for better-sounding recordings. Purple Audio MC77 Limiting Amplifier at a Glance:

What can the MC77 do for you?
Top-tier performance - and a huge value

What can the MC77 do for you? Every studio needs a good limiter, and the Purple Audio MC77 is designed after the mother of all limiters. With its lightning-fast response time and pristine, all-discrete signal path, the MC77 is your go-to device for everything from subtle, transparent dynamics control to full-on brickwall limiting. It's fabulous on bass, kick drum, vocals, you name it. It's a must-have for punchy parallel processing on drums. The MC77 also sports a sidechain input and stereo linking - two conveniences the original didn't have. Top-tier performance - and a huge value At Sweetwater, we're all about performance and value, and that's what the MC77 gives you. Top-notch performance, in fact, and incredible value. At this price, you can double your value and get two. With a pair of these in your rack, you can make that stereo piano sit proud in a thick track. Punch up your toms. Strap 'em across your stereo buss for some mastering magic, and juice your mix with serious slam factor. The MC77's stereo linking makes it easy. The Purple Audio MC77. Do something nice for your studio. Purple Audio MC77 Limiting Amplifier Features:

A modern re-creation of the iconic solid-state limiting amplifier
Discrete transistor audio path electronics
Single-element Class A output amplifier
Transformer-balanced XLR inputs and outputs
Zener shunt regulated audio power supply
Compression Ratios - 4:1, 8:1, 12:1 and 20:1
Fast Attack Time - 20 to 800 microseconds
Release Time - 50 milliseconds to 1.1 second
Gain of 45dB (full gain with no limiting)
Rugged design, with PCB stiffener and chassis mounts
Purple-anodized aluminum front panel
True Bypass via sealed relay, with front panel switch
Stereo linking with front panel switch
Sidechain insert loop/key input with front panel switch
Buffered VU meter can monitor input or output level at +4dBu
LED meter lights that don't burn out
Heavy-gauge black cold-rolled steel enclosure
155V/230V operation (switchable from rear panel)
3-year warranty

Purple Audio's MC77: put a purple classic in your rack!



Specification
Detail


Number of Channels
1


Controls
Input, Output, Attack, Release, Ratio (Buttons)


Threshold
No Threshold Control


Ratio
4:1, 8:1, 12:1, 20:1


Side Chain Insterts
Yes

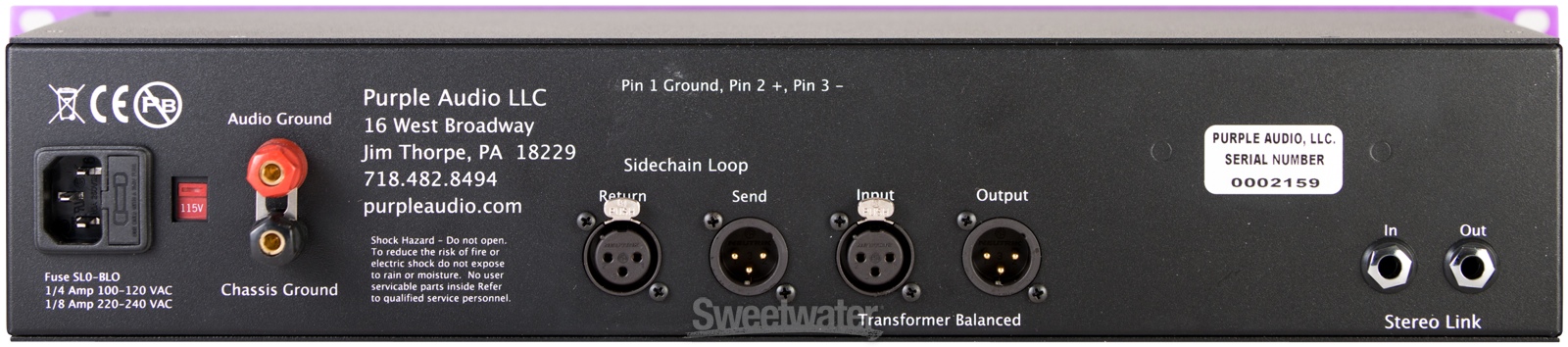

Inputs
1 x XLR, 1 x TRS


Outputs
1 x XLR, 1 x TRS


Sidechain I/O
Yes, with front-panel switch


Rackmount Spaces
2U


Height
3.5"


Width
19"


Manufacturer Part Number
MC77
