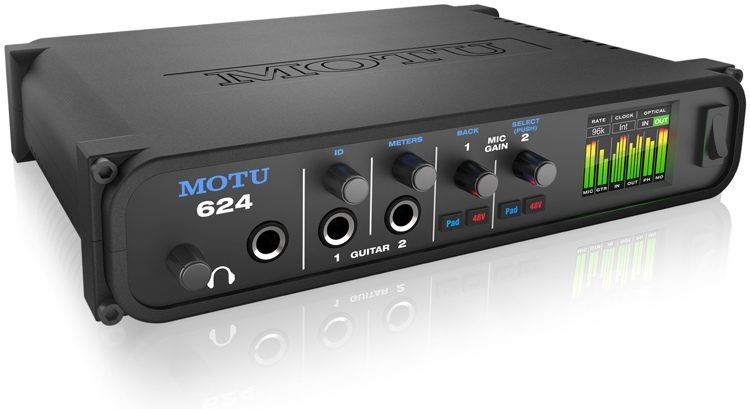

MOTU 624

A Portable Hybrid Interface with Stellar Performance
The MOTU 624 hybrid audio interface packs high-end sound, ultra-low latency, and generous I/O into a portable half-rack unit. ESS Sabre32 DAC technology delivers an impressive 123dB of dynamic range on balanced, DC-coupled analog outputs. Experience round-trip latency as low as 1.6ms at 96kHz via Thunderbolt and 1.9ms via USB. 32 total channels of audio I/O make connecting your instruments, microphones, and outboard gear easy. An onboard DSP mixer provides latency-free routing, along with an array of powerful digital effects. Use the 624 as a standalone mixer, or control it wirelessly from your tablet, smartphone, and laptop. Both onstage and in the studio, the MOTU 624 delivers.











High-end converters, ultra-low latency, and ample I/O offer top-shelf performance
Sweetwater and MOTU have enjoyed a long-standing relationship, due to MOTU's products offering our customers superb sound and solid performance. The 624 follows suit, packing top-notch sound, impressively low latency, and ample I/O into a portable half-rack enclosure. Renowned ESS Sabre32 DAC technology delivers 123dB of dynamic range, ensuring the 624's analog audio quality can hang with the most impressive gear on the market. Optimized drivers yield round-trip latency as low as 1.6ms at 96kHz via Thunderbolt and 1.9ms via USB. Packed with connectivity, the 624 includes 8-in/8-out of analog I/O with two stellar microphone preamps, two hi-Z guitar inputs, 4 x 6 line ins/outs, and a stereo headphone output. The 624 also supplies you with eight channels of digital I/O via ADAT.






DSP-fueled mixer with EQ, compression, and effects
The MOTU 624's built-in digital mixer delivers large-console-style mixing with 48 channels, 12 stereo buses, and 32-bit floating-point effects processing, so building complex, latency-free routing schemes is a piece of cake. And routing is extremely flexible — send any input to any output, or even multiple outputs. Add Classic Reverb, with lengths up to 60 seconds, sculpt your sound with a 4-band British parametric EQ, and apply vintage compression that's modeled after the legendary LA-2A. The 624's mixing and effects DSP engine exhibits virtually unlimited headroom and outstanding sound quality.




Control everything from your laptop, tablet, or smartphone
If you connect a wireless router to your 624, you can access all of its internal mixing functions, including effects and processing on your tablet, smartphone, or laptop, turning this powerful audio interface into a fully capable standalone mixer. Best of all, the control software is web-based. It runs in your favorite web browser on Mac, Windows, Linux, iOS, or Android — basically anything — as long as it's on the same network.




MOTU AVB Switch (not included)

Expand your system with additional AVB networkable audio interfaces
Another extremely cool use of the 624's Ethernet connection is the ability to link more MOTU AVB-equipped audio interfaces to it. You can do this in one of two ways: directly via a simple Ethernet cable or as part of an audio network via one or more MOTU AVB Switches. If you go with just a single Ethernet cable, you can easily link a second 624 or other AVB-ready device directly to your first one. With MOTU AVB Switches, you can create an audio network of up to five units, potentially linking hundreds of channels of I/O across multiple rooms. And since it's all over standard Cat 5e Ethernet cable, latency or cable runs aren't any kind of issue.




MOTU 624 Hybrid Audio Interface Features:

16-in/16-out hybrid audio interface for studio and live sound
ESS Sabre32 DAC technology delivers 123dB of dynamic range and superb audio quality
Optimized drivers yield round-trip latency as low as 1.6ms at 96kHz via Thunderbolt and 1.9ms via USB
2 pristine microphone preamps offer clear and transparent sound
8 channels of ADAT optical digital I/O expands your system with additional gear
Onboard 32-bit floating point DSP-driven digital mixer with EQ, dynamics, and effects provides latency-free routing
Hook up a wireless router and take complete control of the onboard mixer from your laptop, tablet, or smartphone
MOTU's AVB audio networking expands your system with additional AVB-equipped audio interfaces
Create an AVB network via optional AVB Switches with support for up to 5 compatible interfaces





Additional Media
Audio Interface Buying Guide
MOTU 624 Audio Interface Review by Sweetwater
Two New Mobile Interfaces from MOTU


Tech Specs



Computer Connectivity
Thunderbolt, USB 3, AVB Ethernet


Form Factor
Half Rack / Desktop


Simultaneous I/O
16 x 16


A/D Resolution
24-bit/192kHz


Number of Preamps
2 x mic, 2 x instrument


Phantom Power
2 channels


Analog Inputs
2 x 1/4" (Hi-Z instrument), 4 x 1/4" (line in), 2 x XLR


Analog Outputs
4 x 1/4" (line out), 2 x 1/4" (main out)


Digital Inputs
1 x Optical Toslink (ADAT, SMUX, S/PDIF)


Digital Outputs
1 x Optical Toslink (ADAT, SMUX, S/PDIF)


Headphones
1 x 1/4"


USB
1 x Type B 3.0


Data I/O
Thunderbolt 2, AVB Ethernet


Software
MOTU Discovery App (included), AudioDesk 4.0 (download)


OS Requirements - Mac
OS X 10.8 or later, iOS


OS Requirements - PC
Windows 7 or later, Android


Rack Spaces
0.5U Half Rack


Power Supply
12-18V DC power supply


Depth
7"


Width
8.6"


Height
1.75"


Weight
2.2 lbs.


Manufacturer Part Number
9355
