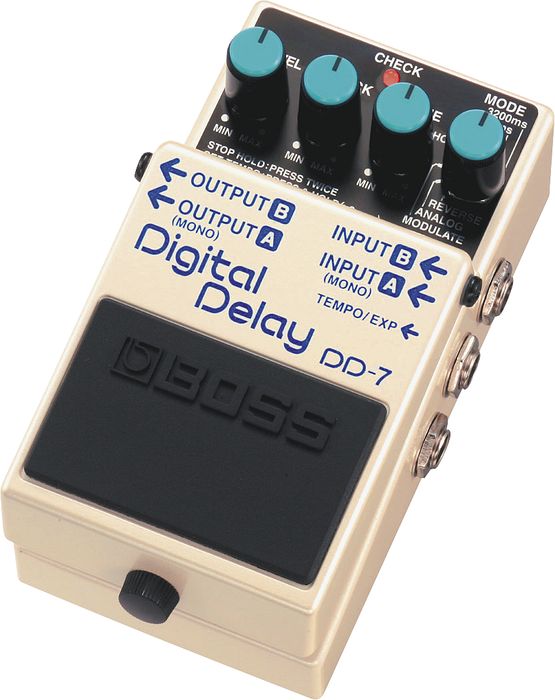

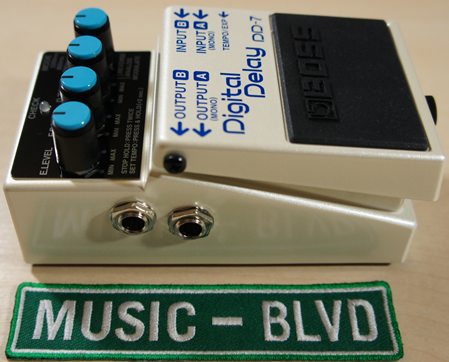

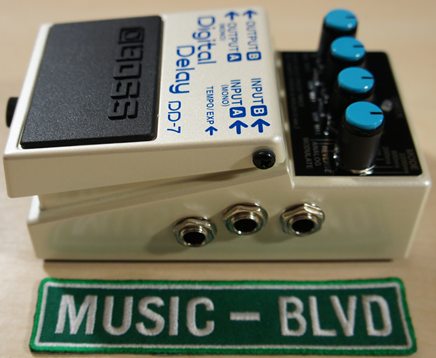

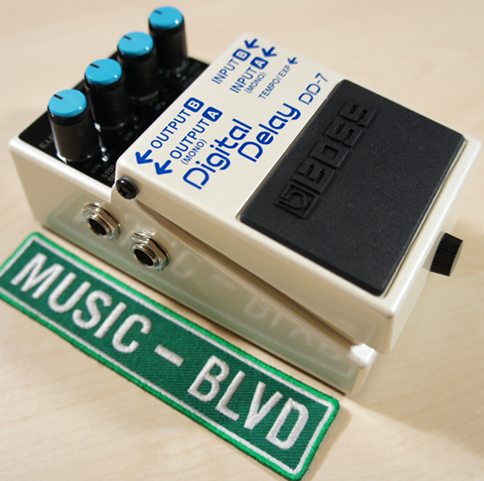

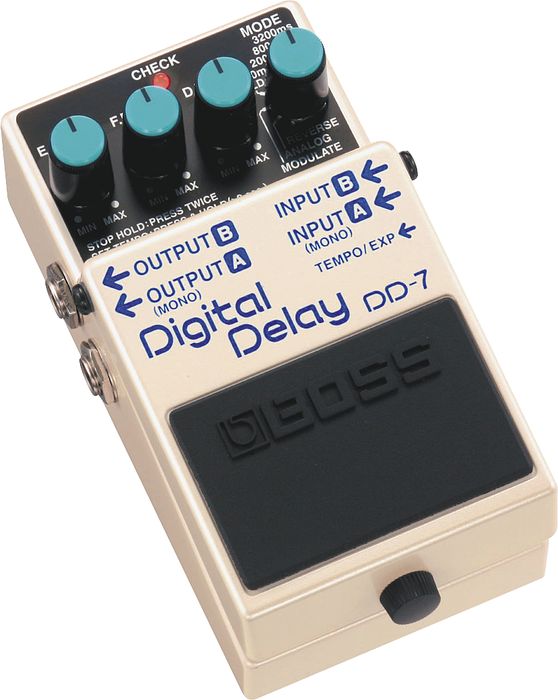

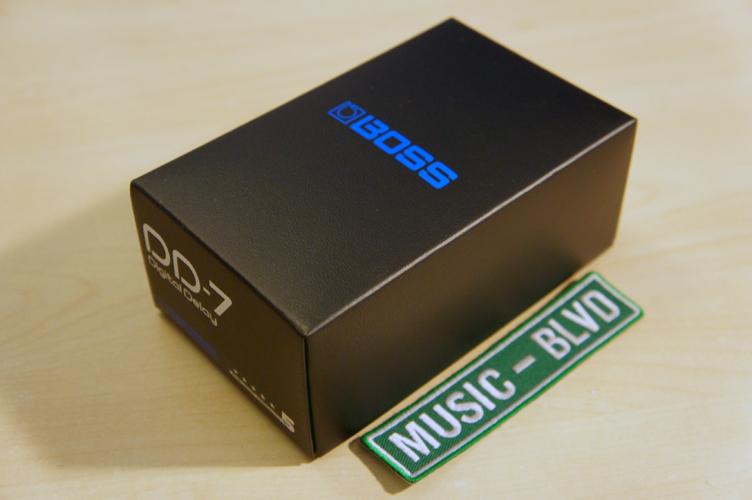

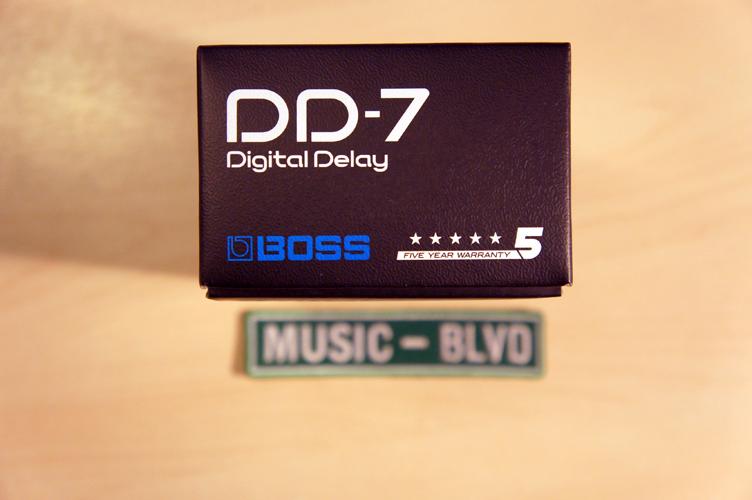

Boss DD-7 Digital Delay Guitar Effects Pedal

The next step in compact delay.

The BOSS DD-7 Digital Delay is a guitar effects pedal that takes the best features from its predecessors and expands their creative potential. You get Modulation Delay mode, classic modeled Analog Delay mode, External pedal control options, longer delay time, and more. Even with the best-selling delays in compact-pedal history, BOSS continues to push the envelope and innovate. Expanded Delay TimeUp to 6.4 seconds of delay time are available with the DD-7, a marked increase from its predecessor. In addition, Hold mode allows up to 40 seconds of input to be recorded for creating "sound on sound" performances.Delay ModesThe BOSS DD-7 pedal is equipped with two innovative and advanced delay modes. Modulation Delay provides chorus-flavored sounds. Analog Delay offers a modeled simulation of the classic BOSS DM-2, beloved for its characteristic warmth.External ControlFor handsfree control of the DD-7 pedal, an external footswitch and Expression pedal (sold separately) can be used. Tap tempo can be controlled from an external footswitch, while delay time, feedback, and effect level can be changed on the fly via Expression pedal.Stereo OutputCreate amazing effects with the BOSS DD-7 pedal's stereo output, such as spatial audio sweeps via true stereo panning. You can also use the stereo outputs to create separate dry and wet signal paths -- handy for recording and live-performance control.


Features

Expanded delay time, up to 6.4 secondsModulation Delay mode offers natural, chorus-type soundsAnalog Delay mode models the classic warm BOSS DM-2 analog delay soundTap tempo controllable via external footswitchDelay time, feedback, and effect level can be controlled via external Expression pedal (sold separately)Up to 40 seconds of recording for sound on sound (Hold mode)



Delay when you get the pedal, but order now. Call or click today.
DD-7 Digital Delay Guitar Effects Pedal Specifications:

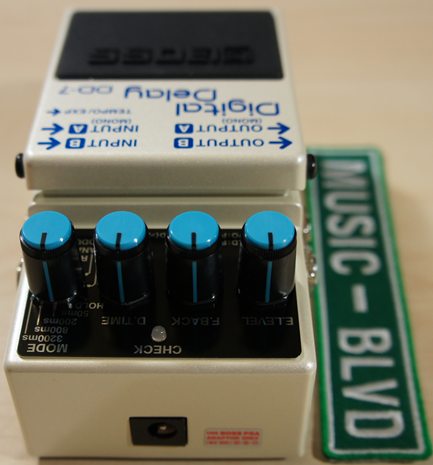

Controls: E.LEVEL, F.BACK, D.TIME, MODE, Pedal switchIndicator: CHECK (Used for indication of TEMPO, HOLD, and to check battery)Connectors: INPUT-A (MONO) jack, INPUT-B jack, OUTPUT-A (MONO) jack, OUTPUT-B jack, TEMPO/EXP jack, AC adaptor jack (DC 9 V)Delay Time: 1 ms to 6400 ms*, Maximum recording time: 40 sec (in Hold mode) *Values may vary according to the mode and connections.Nominal Input Level: -20 dBuInput Impedance: 1 M ohmNominal Output Level: -20 dBuOutput Impedance: 1 k ohmRecommended Load Impedance: 10 ohms or greaterPower Supply: DC 9 V, Dry battery, 9 V type (6F22/carbon, 6LR61/alkaline) AC Adaptor (PSA-series: optional), DC 9 V: Dry battery 6F22 (9 V) type (carbon)/ Dry battery 6LR61 (9 V) type (alkaline), AC Adaptor (PSA-series: optional)Current Draw: 55 mA (DC 9 V)* Expected battery life under continuous use: Carbon: 1.5 hours, Alkaline: 6 hours. These figures will vary depending on the actual conditions of use.Accessories: Owner's Manual, Mode Sticker, Application Sticker, Leaflets ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (9 V type, 6LR61) *1Options: AC adaptor (PSA-series), Footswitch: FS-5U, Expression pedal: Roland EV-5Size and WeightWidth: 73 mm (2-7/8 inches)Depth: 129 mm (5-1/8 inches)Height: 59 mm (2-3/8 inches)Weight: 0.4 kg (1 lb.)* 0 dBu = 0.775 Vrms*1 The battery that is supplied with the unit is for temporary use, intended primarily for testing the unit's operation. Alkaline battery recommended when replacing the battery.*The specifications are subject to change without notice.


















THTH : www.music-blvd.com
