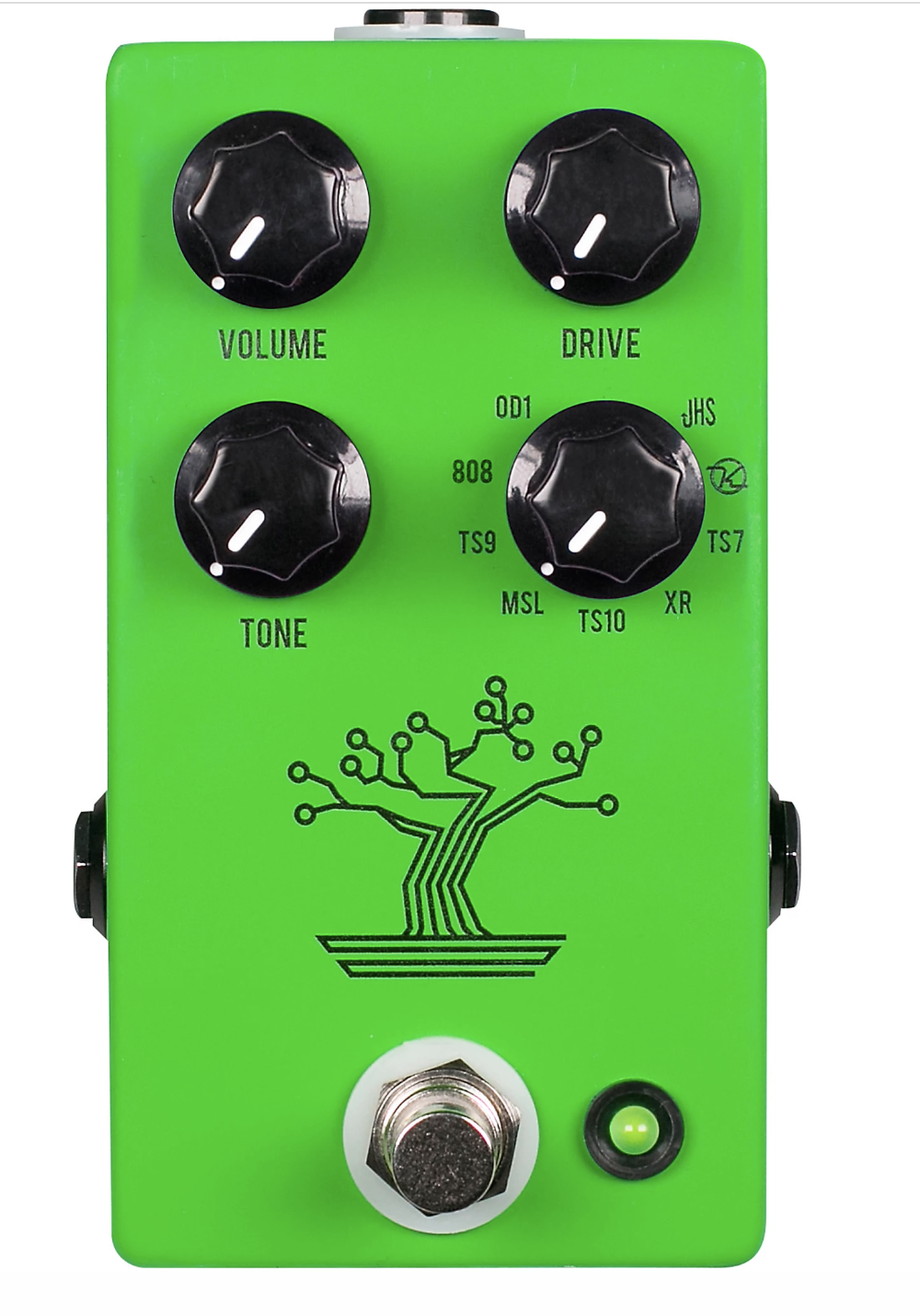

JHS Bonsai 9-way Screamer Overdrive Pedal

Screaming Valves of Overdrive
What the Muffuletta did for big fuzzes, the JHS Bonsai does for screaming green overdrives. Slap the Bonsai on your pedalboard, and enjoy unhindered access to four decades worth of pedals. There are nine different sonic textures to choose from. Want some classic mid-bump grind? It's in there. SRV-style dirty boost? Yep. Mayer-esque low-gain grit? You got it — and a whole lot more. The Bonsai isn't a modeler — it boasts the exact same components as the source units. So when you select a mode with the Bonsai's rotary control, your guitar signal actually passes through a replica of the original pedal's circuitry. With the Bonsai, you truly get nine overdrive pedals packed into one housing.














Now Playing: JHS Bonsai Multi-overdrive Pedal Demo







JHS Pedals, The Bonsai







JHS Pedals, The Bonsai






Replication, not emulation
The Bonsai packs nine vintage and often hard-to-find versions of the definitive green overdrive into a single pedal. When he designed the Bonsai, JHS founder Josh Scott examined dozens of versions of this famous stompbox and authentically reproduced their circuits. He was meticulous, capturing every quirk of the original components using an Audio Precision analyzer. He even accounted for drift, as the original pedals were decades old, and their components had strayed from their original values. The result is a replication, not an emulation. When you plug into the Bonsai, you're playing through the exact same circuitry as the original pedals. No digital modeling is involved — it's pure analog all the way. At Sweetwater, we love the authentic vintage mojo that we get from the Bonsai.





9 overdrive pedals packed into one housing

OD1 (1977) A brighter and somewhat higher gain mode that doesn't utilize the tone knob.
TS808 (1979) The classic low-gain grind with the signature mid bump.
TS9 (1982) Similar to the TS808, but with a brighter, SRV-style sound.
MSL (1985) The "metal" version produces a higher-gain sound with more low end.
TS10 (1986) Replicates the bluesy low-gain sound popularized by John Mayer.
XR (1989) Duplicates the Polish-made EXAR OD1, known for its unique drive character and slightly higher gain.
TS7 (1999) The late-'90s overdrive with a "hot mode" that yields more gain and low-end dirt.
Keeley (2002) Robert Keeley’s classic Mod+ tightens up your tone and gives you less noise, along with smoother mids and highs and increased bass.
JHS (2008) JHS's "Strong Mod" gives you a cleaner sound with a serious power boost.





JHS Bonsai Features:

Overdrive pedal that packs 9 classic overdrives into a single housing
Replicates 4 decades worth of pedals using analog circuitry
Boasts the exact same components as the source units
Dial in the perfect sound with Volume, Tone, and Drive controls
True-bypass switching preserves your tone when the pedal is off
Ruggedly built and handwired pedal





Tech Specs

Pedal Type: 9-way Overdrive
Inputs: 1 x 1/4" (instrument)
Outputs: 1 x 1/4"
Power Source: 9V DC power supply required (sold separately)
Power Usage: Less than 100mA
Height: 1.6"
Width: 2.2"
Depth: 4.8"
Manufacturer Part Number: Bonsai
