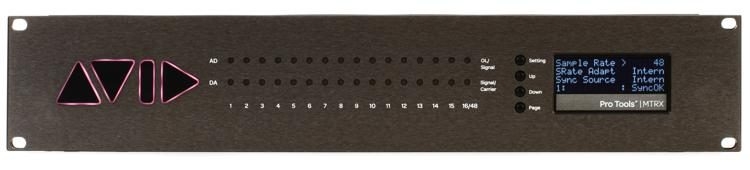

Avid MTRX - 8x8 Analog Interface

The Ultimate Audio and Monitor Interface from Avid
For our Pro Tools | HDX and HD Native users seeking off-the-charts sonic quality and extensive routing and monitor control flexibility, Sweetwater recommends Avid's cutting-edge Pro Tools | MTRX audio interface. Avid worked closely with Digital Audio Denmark in the development of this groundbreaking interface to deliver stellar sound, with support for up to 384kHz DSD audio. And you'll find it an especially versatile addition to your workflow, serving both as your audio interface and monitor control center. Designed for deployment in demanding professional post-production and music production environments, MTRX operates both as a high-performance Pro Tools | HD interface and an integrated monitor section for Avid Control Surfaces.




Configured for 8 x 8 analog connectivity
This Avid MTRX is configured for analog connectivity. It is pre-loaded with an 8-channel MTRX analog line-input card, and an 8-channel MTRX analog line-output card. You'll be well-equipped for tracking and mixdown, with the expansive routing and monitoring capabilities MTRX provides.






MTRX adapts to your workflow
Avid HDX features include Eucon-controlled monitoring, extensive integrated routing, and ultra-high-quality analog input, output, and microphone preamp card options. And you can choose which combination of modular interface options you need to adapt MTRX to your studio workflow preferences. The MTRX base unit gives you 16 channels of AES I/O, one coaxial MADI I/O pair, two Mini-DigiLink ports, Pro | Mon 2 Eucon monitoring capabilities, and the DADman app for configuration and remote control from a Mac or PC.




Connectivity, reinvented
Offering a total of eight interface protocol options, HDX reinvents the concept of connectivity. For analog input and output, it lets you install up to six 8-channel AD/DA cards (including 8- and 2-channel mic preamp card options) for up to 48 channels of high-quality Avid conversion. From there, the I/O options are plentiful: up to 144 channels of AES/EBU (16 channels on the chassis), an AES3 card option with 16 channels plus SRC in, up to 256 channels of 3G-SDI, 64 channels of DigiLink (using the two rear-panel ports), 64 channels of coax MADI (via rear-panel I/O), over 1024 channels of MADI (up to 192 channels on the chassis), a Dual MADI card option with up to 128 channels via SFP coax and optical I/O, and a Dante option with up to 64 channels.






Avid MTRX Audio/Monitor Interface Features:

Flagship Pro Tools interface with modular flexibility
Digital Audio Denmark AD/DA converters with support for up to 384kHz DSD audio
Configured with one 8-channel MTRX analog line-input card and one 8-channel MTRX analog line-output card
Extended monitor control and flexible routing with S3, S6, or other Eucon surfaces
Pro | Mon 2 enables complete monitoring, talkback, summing, and fold-down control
Use as a high-quality 64-channel Pro Tools | HD interface
Connect and route your entire studio through AES3, MADI, Dante, and/or SDI I/O
Use DADman software to feed any input to any output, send audio to multiple outputs simultaneously, and otherwise route, split, and patch audio
Add high-quality mic preamps as an option, and remotely control them from Pro Tools
8 x 8-channel card slots let you customize MTRX for your needs
Rock-solid sync via Word Clock, AES11, Video, and all digital I/O
Automatic sample rate conversion on inputs
MADI, Dante, and SDI I/O option cards available separately
