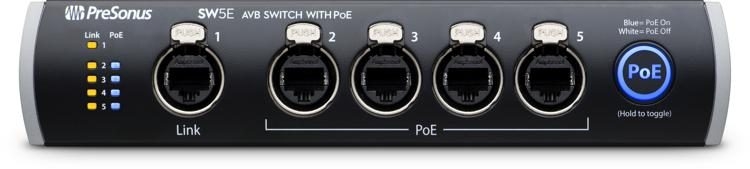

PreSonus SW5E 5-port Audio Video Bridging Switch w/ PoE

Network Your StudioLive Mixers
The PreSonus SW5E is a five-port AVB switch for networking multiple StudioLive Series III consoles. You can also link a StudioLive AI-series console and StudioLive RML rack mixer, using the rack mixer as a stagebox. Or connect a StudioLive RML rack mixer with a StudioLive CS18AI control surface. You can also use an SS5E to cascade a pair of StudioLive RML-series mixers into one large system via AVB networking. A heavy-duty all-metal chassis and rugged etherCON connectors ensure reliable road-worthiness. At Sweetwater, we appreciate that the SW5E eschews a wall wart for an internal power supply. If you want to network your second- or third-generation PreSonus StudioLive gear, the SW5E makes it easy.




Audio Video Bridging (AVB) in a nutshell
AVB, or Audio Video Bridging, is a set of IEEE standards that employ a local Ethernet network to transport audio signals in real-time. It maintains the full quality of encoded audio and video and supports nanosecond sync accuracy, regardless of network activity. AVB networks use standard Cat 5e or Cat 6 cables for connections, and multiple AVB devices can be connected via AVB switches like the PreSonus SW5E. Using an Ethernet network in lieu of analog cables simplifies installation drastically — instead of running bulky audio cables all over a building, you can simply take advantage of the existing Ethernet infrastructure.





PreSonus SW5E Features:

5-port AVB switch for second- and third-generation StudioLive gear
4 ports feature Power over Ethernet (PoE) for carrying electrical power over network cables
Network multiple StudioLive Series III consoles
Link a StudioLive AI-series console and StudioLive RML rack mixer, using the rack mixer as a stagebox
Connect a StudioLive RML rack mixer with a StudioLive CS18AI control surface
Cascade a pair of StudioLive RML-series mixers into one large system via AVB networking
Heavy-duty all-metal chassis and rugged etherCON connectors ensure reliable road-worthiness
Employs an internal power supply in lieu of a wall wart
Also compatible with non-PreSonus AVB-enabled gear
Rackmountable (rack tray not included)





Tech Specs




General




AVB Ports
5


PoE Ports
4


PoE Supported
IEEE 802.3at-2009 (Type 1)


Operational Bandwidth
10 / 100 / 1 Gigabit


Front Panel
5 Activity LEDs, 4 PoE active LEDs


Power
100-230V, 50-60 Hz, 65W


Dimensions
1.7" x 8.5" x 7" (44 x 217 x 178 mm)






Manufacturer Part Number
SW5E





Weight, Dimensions, and Manufacturer Part Numbers
Shipping Weight: 2 lbs
Shipping Dimensions: 14 x 10 x 5 in
Manufacturer Part Number (MPN): SW5E
