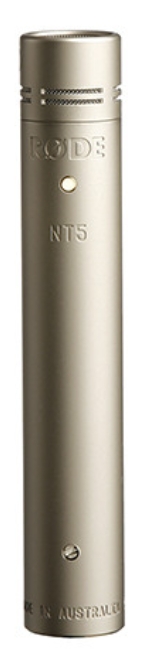

RODE NT5

Externally biased condenser
Gold sputtered 1/2” capsule
Heavy-duty satin-nickel plated body
Dual power operation
Surface mount circuitry
Low noise
Full frequency response
Available as Certified Match Pair
10 year extended warranty when you register your microphone


The NT5 is RØDE's premier small-diaphragm cardioid condenser microphone, sometimes referred to as a 'pencil mic'.
Intended for recording acoustic instruments, drum overheads, cymbals and live performances, the compact externally polarized mic employs a 1/2" capsule, an active J-FET impedance converter with bipolar output buffer.
Its tight cardioid pickup pattern also makes it ideal for use as an indoor dialogue microphone for filmmaking on a mic stand or boom.
Expanding the NT5's versatility, an interchangeable omnidirectional capsule (NT45-O) is available.
Finished in durable satin nickel, the NT5 available as a single microphone or as an acoustically matched pair.
The NT5 is designed and made in Australia, and covered by RØDE's industry leading 10 year warranty.



NT5 Specifications








Active Electronics
JFET impedance converter with bipolar output buffer


Capsule
0.50"


Polar Pattern



Address Type
End


Frequency Range
20Hz - 20kHz


Output Impedance
100Ω


Maximum SPL
143dBSPL


Maximum Output Level
13.9mV (@ 1kHz, 1% THD into 1KΩ load)


Sensitivity
-38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz


Equivalent Noise Level (A-weighted)
16dBA


Power Options



Weight
101.00g


Dimensions
118.00mmH x 20.00mmW x 20.00mmD


Output
