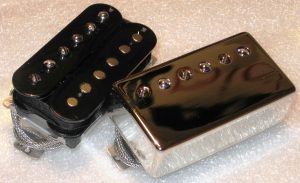

Amalfitano Pickups - The Fullbucker or PAF Set

The Fullbucker set are full bodied, rich sounding, humbucker pickups incorporating hand-assembled, over wound bobbins that are specifically designed for the Bridge (approx. 8.50K ohms) and Neck (approx. 8K ohms) positions.
Using quality construction materials, these humbuckers are assembled with vintage enameled #42 gauge magnetic wire, hardwood maple spacer blocks, nickel/steel base plates and single conductor shielded lead wires. (Four conductor wire leads are also available so you can customize coil selections on each pickup). These can be assembled with double black, zebra or creme coils as well as nickel or chrome covers, (please specify when ordering). Also utilized are stronger grade Alnico 5 bar magnets which promotes their harmonic tonal attributes during all volume settings.
I also construct a low output, vintage sounding, PAF® style humbucker which uses old school rough sand cast Alnico 2 magnets for that true vintage tone, along with genuine hardwood maple spacer blocks. These are not wax potted as were the original PAF®'s.
For those requiring more distortion from their pickups, ceramic magnets and high output windings are the way to go.
Most Amalfitano Pickup Humbucker sets are assembled using vintage braided wire leads or 4 wire leads and are lightly wax potted to reduce the chance of microphonics. **PAF® replacement sets are not wax potted.
Bear in mind that Fullbuckers can virtually be constructed having an infinite combination between magnet strength and output levels in order to achieve your tone. Let me know what Amalfitano Pickups can build for you. Click here to contact me.
Media
Amalfitano PAF® set on youtube


Specifications: vintage enameled #42 gauge magnetic wire Hardwood maple spacer blocks Alnico 5 magnets Nickel / Steel base plates Single conductor shielded lead wires
PAF® Specifications: Sand cast Alnico 2 magnets NO wax potting
Values: Bridge: +/- 8.5K ohms Neck; +/- 8K ohms
Price....................... $350.00 Individual............... $175.00
