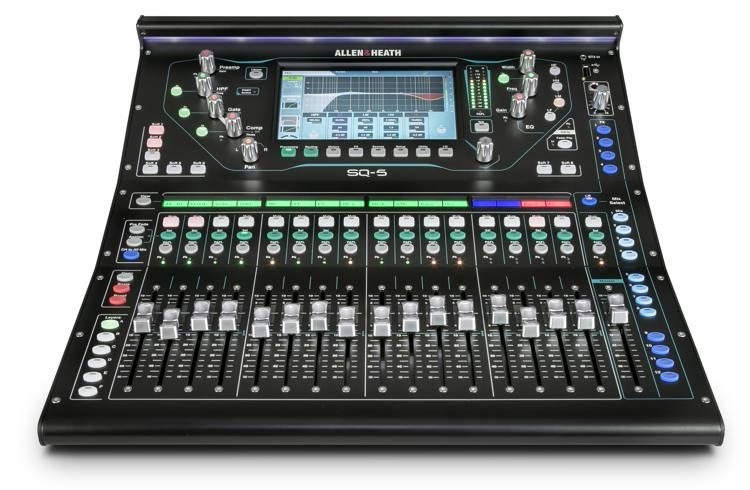

Allen & Heath SQ-5 Digital Mixer

Next-generation Digital Mixing
Based on Allen & Heath's acclaimed XCVI 96kHz FPGA audio engine, the SQ-5 digital mixer delivers extensive live sound mixing capabilities. Even with its powerful processing, the SQ-5 delivers best-in-class audio quality with less than 0.7ms of latency. You'll have a lot of flexibility when it comes to creating monitor mixes, with up to 12 stereo mixes (groups or auxes) in addition to the main LR out. Eight stereo FX engines provide studio-quality effects, with dedicated returns. Complete with a 32 x 32 USB audio interface, and dedicated controls for mixing convenience, the Allen & Heath SQ-5 is a smart mixing solution for live music, worship sound, and educational facilities.














Now Playing: Introducing Allen & Heath SQ Digital Mixers







Allen & Heath SQ - Part One: Overview w/ Keith Johnson






Capable mixer that's ready to expand
Right out of the box, the SQ-5 digital mixer offers 48 input channels. You have 17 faders for hands-on mixing, arranged in six fader layers for managing larger mixes. The SQ-5 also offers an SLink port for remote audio and expansion. And a 64-channel I/O port is ready for network audio integration.






Manage large mixes easily with Automatic Mic Mixing
When you're mixing a multi-mic setup, you'll find the SQ-5's Automatic Mic Mixing capabilities to be a huge help. It's also a fantastic "safety net" when relying on inexperienced volunteers to manage the sound system. With Automatic Mic Mixing, you can be sure that you'll never experience an excessive imbalance between mic levels in large multi-mic applications.




Built-in audio interface and comprehensive I/O
Multitrack recording is made simple with the Allen & Heath SQ-5, with its built-in 32 x 32 USB audio interface. Engineers at Sweetwater also appreciate the convenience of direct recording to a USB drive. A 64-channel I/O port is also present for connecting to network audio. And an SLink port allows for remote audio and I/O expansion.






Allen & Heath SQ-5 Digital Mixer Features:

48-input digital mixer with 96kHz FPGA processing
Best-in-class audio quality, with less than 0.7ms latency
17 faders for hands-on mixing, with 6 fader layers
Create up to 12 stereo mixes in addition to the main LR mix
3 stereo matrices
8 stereo FX engines with dedicated effects returns
7" capacitive touchscreen for navigation
SLink port for remote audio and I/O expansion
64-channel I/O port for network audio
Built-in 32 x 32 USB audio interface for multitrack recording
SQ-Drive allows for direct recording to a USB drive
Dedicated physical controls, plus 8 assignable SoftKeys
Automatic Mic Mixing makes it easy to manage large multi-mic setups
AES digital output
Rackmountable





Tech Specs

Type: Digital
Channels: 48
Inputs - Mic Preamps: 16 x XLR
Phantom Power: 16 channels, Talkback
Talkback: 1 x XLR
Inputs - Line: 16 x XLR (mic/line)
Inputs - Other: 2 x 1/4" (ST1), 2 x 1/4" (ST2), 1 x 1/8" (ST3)
Outputs - Main: 2 x 1/4" (A out, B out), 2 x XLR (L,R)
Outputs - Digital: 1 x XLR (AES)
Outputs - Other: 12 x XLR (stereo mixes, L/R)
MIDI I/O: USB (control)
Remote: 1 x 1/4" (footswitch)
Data I/O: 1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
USB: 1 x Type B, 1 x Type A
Computer Connectivity: USB (32 x 32), Ethernet
Inserts: Internal Pre EQ/Compressor
Busses/Groups: 36 bus
I/O Expansion Slots: 1 x Option card port (Dante, Waves)
Headphones: 1 x 1/4"
A/D Resolution: 24-bit/96kHz
Faders: 17 x 100mm motorized
EQ Bands: Parametric EQ, 28-band Graphic
Effects: Delay, Reverb, Chorus, Flanger, Phaser (8 x RackFX engine)
Signal Processing: Dynamics
DAW Control: MIDI DAW control via USB
Screen: 7" color touch screen
Storage: USB Type A (16 x 16)
Software: Wireless Remote Mixing app iPad/Android (network router not included)
Rackmountable: Yes (kit sold separately)
Height: 7.8"
Depth: 20.3"
Width: 17.3"
Weight: 23.1 lbs.
Manufacturer Part Number: AH-SQ-5






Packaging Info


Package Weight
33.0 lb


Box Dimensions (LxWxH)
27.0 x 24.0 x 14.5"
