UnderToneAudio MPEQ-1

Product Description


















Eric Valentine Explains The UnderToneAudio MPEQ-1







UTA Demo Vid #1: Eq Basics







UTA Demo Vid #2: One Mic Drum Sound







UTA Demo Vid #3: Variable Phase Adjustments

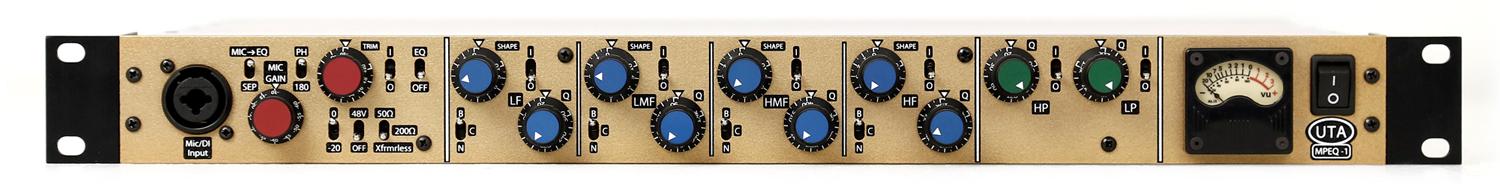

The UnderToneAudio MPEQ-1 is the amalgamation of the UTA EQ and UTA's new custom mic pre. You can use the equalizer and the mic pre separately or as a complete channel strip.
The mic pre has a custom input transformer and a carefully chosen output transformer. Both are optimized to accentuate the most flattering sonic qualities inherent in audio transformers. The unique mic pre design makes both of the transformers bypass-able. This offers users a choice between the detailed clarity of a Class-A transformer-less design or the vintage musicality of a dual transformer mic preamp.

Features:

-10 to -60 dB boost range (in stepped 5 dB increments)
Switchable 20 dB pad
Instrument DI
Front panel XLR–1/4" (DI) combo input
Phase reverse switch
+ 48 V phantom power
+/- 10 dB trim knob
Bypass-able input and output transformers
Ability to use mic-pre and UTA EQ on seperate signals.
Inputs/Outputs (all XLR):

Mic-pre Input
Mic-pre direct Line Output
Line Input
EQ Line Output - w/ output transformer
EQ Line Output - w/o output transformer




Specifications:
Input Impedance:

Mic In transformerless: 2K ohms
MIc In 200 Ω: 2K ohms
MIc In 50 Ω: 500 ohms
Line In: Greater than 10K


Output Impedance:

Mic Out: 47 ohms
Main Out Transformerless: 47 ohms
Main Out with Transformer: 120 ohms


Frequencey Response:

Mic Preamp: 10 Hz - 80 kHz +0 /-1 dB
Line In/Out: 10 Hz - 50 kHz +0 /-1 dB


Noise Floor:

Mic Preamp: -128 dBu (20 Hz - 20 kHz)
Line Level Circuit: -91.5 dBu (20 Hz - 20 kHz)


Max Level Before Clip:

Mic Preamp: +27 dBu (or better)
Line Level Circuit: +27 dBu (or better)


Distortion:

Mic Preamp: .003% at +27 dBu
Line Level Circuit: .015% at +27 dBu


Dimensions:

Front to Back: 12.25” (with heat sinks and knobs: 14”)
Left to Right: 17.25” (with rack ears: 19”)


Weight: 10 lbs









www.music-blvd.com $2,795 (T)
