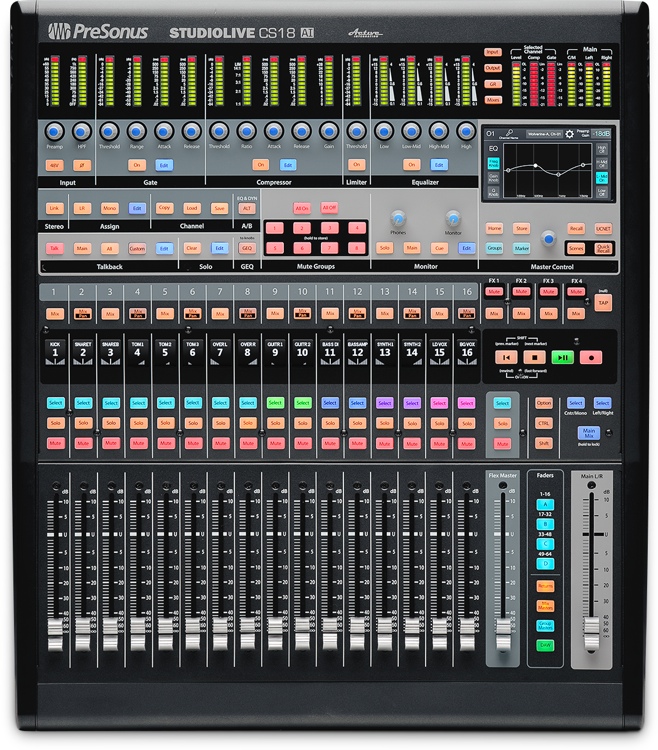

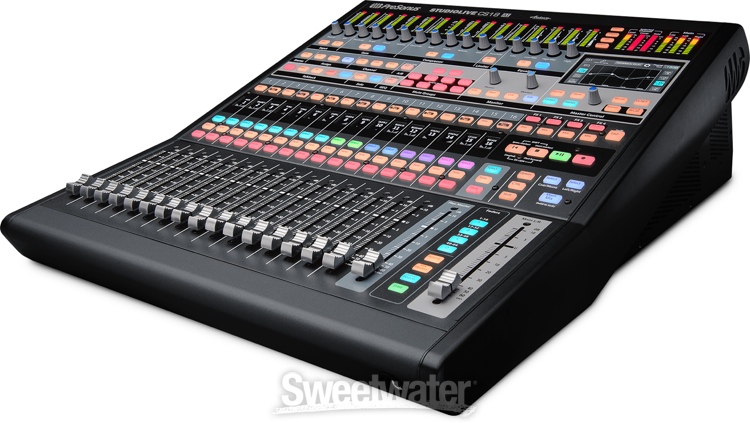

PreSonus StudioLive CS18AI

Maximum Control for Your StudioLive AI Rig
If you want serious flexibility, then build your live sound or studio recording rig around the PreSonus StudioLive CS18AI AVB Ethernet control surface. When you couple the CS18AI's 18 motorized faders and extensive onboard controls with StudioLive gear, you can get upwards of 64 channels of mixing and recording I/O, plus total control of PreSonus Studio One. AVB Ethernet delivers both instantly responsive control and bidirectional audio, allowing you to monitor through your CS18AI and provide talkback, room mics, or control room recording capabilities. However you put it to work, the PreSonus CS18AI AVB Ethernet control surface will add a special level of convenience to your music rig.






Watch Feature Overview
Watch Walkthrough Video
Watch Direct networking (without...
Watch Networking with an AVB Switch




PreSonus StudioLive CS18AI Control Surface at a Glance:

AVB delivers total control from the stage to the studio
Flexible StudioLive technology lets you expand your rig
Onboard I/O provides vital communication and more

AVB delivers total control from the stage to the studio
Forget about cumbersome snakes or dropping cable in your walls - with the PreSonus CS18AI control surface at the heart of your StudioLive RM mixer rig, all you need is a single standard Cat 5e Ethernet cable, and you're all set. That's because your CS18AI operates on the same AVB Ethernet protocol as StudioLive RM mixers. This not only provides extremely responsive control over your mix, but it also lets you send audio both ways, allowing you to use your CS18AI mixer (or mixers) as stage boxes or remote preamps.
Flexible StudioLive technology lets you expand your rig
Over the decades, Sweetwater Sales Engineers have helped countless studio and live sound professionals adapt their rigs to ever-changing needs. That's one of the reasons we're so excited about the PreSonus CS18AI and StudioLive gear. With this kind of a setup, you're free to grow and change your system as needed. If 32 channels isn't enough, you can cascade two StudioLive RM mixers together for expanded I/O, and thanks to the CS18AI's scribble-strip display and DCA groups, managing a higher channel count is totally painless. What's more, you still get the StudioLive AI iOS integration, so you can always add iPhones or iPads for personal monitor mixing and remote access.
Onboard I/O provides vital communication and more
One additional and highly important way that the PreSonus CS18AI differs from typical control surfaces is its integrated I/O. Acting as a 4-in/2-out AVB audio interface in its own right, the CS18AI provides you both a pair of line-level inputs and a pair of microphone inputs as well as stereo XLR and headphone outs. This I/O configuration lets you monitor on headphones or speakers while providing talkback and room mics. And since the onboard mic inputs are remote XMAX preamps, you're all set to record in the control room with the same amazing sound you'd expect from your StudioLive RM mixer.
PreSonus StudioLive CS18AI Control Surface Features:

An Ethernet AVB control surface that integrates with StudioLive RM AI mixers and Studio One DAW software
18 x 100mm touch-sensitive motorized faders let you take control of your mixer channels and DAW tracks
4-in/2-out AVB audio interface offers monitoring, talkback, and control-room recording options
64px x 96px scribble strip display with pan indicator included on all 16 channel faders
Variable-color select buttons provide easy at-a-glance channel and group identification
4.3" color touchscreen lets you dive into deeper setup control and settings manipulation
Full PreSonus Fat Channel DSP control onboard makes setting up channels simple
Multipurpose footswitch input offers you hands-free punching and access to other functions
Built on the same footprint as the StudioLive 16.4.2AI to make rackmounting easy

Add amazing hardware and software control to your rig with a PreSonus StudioLive CS18AI!

Tech Specs



Type
Audio Mixer


Faders
18 x 100mm (Touch Sensitive)


Knob Type
Encoders


Analog Inputs
1 x XLR/TRS Combo, 2 x 1/4", 1 x 1/4" (Footswitch)


Analog Outputs
2 x XLR


Computer Connectivity
Ethernet


Hardware Requirements - Mac
Intel Core i3 processor or better, 4GB RAM


Hardware Requirements - PC
Intel Core i3 processor or better, 8GB RAM


OS Requirements - Mac
OS X 10.8 or later


OS Requirements - PC
Windows 7 (SP1) or later


Height
6.9" (Max)


Depth
22.35"


Width
17.22 (Chassis only)


Weight
23 lbs.


Manufacturer Part Number
SLCS18 AI
