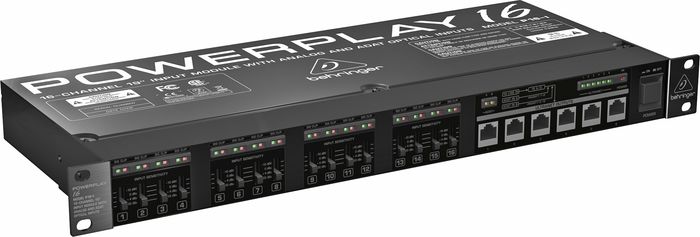

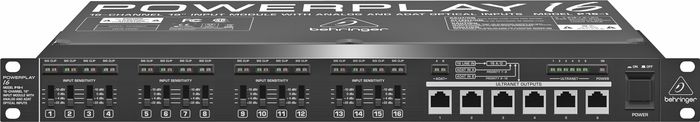

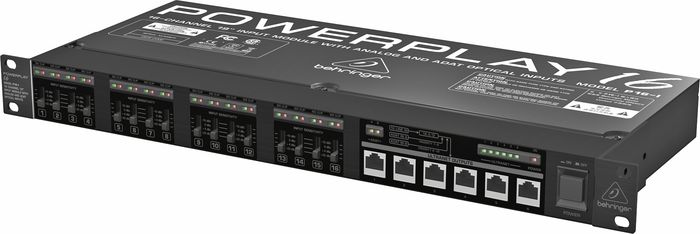

Behringer POWERPLAY P16-I 16-Channel 19 Input Module with Analog and ADAT Optical Inputs

Part of an amazing 16-channel digital personal monitoring system.

The BEHRINGER POWERPLAY P16 system is the easy, affordable way to give your musicians and vocalists what they really want—“more me!” P16-M Personal Mixers lets each performer take control of what they hear, allowing the engineer to concentrate on providing the audience with the best possible listening experience. Fast and easy to set up, a basic system can be installed and configured in a matter of minutes—and the system can be expanded to adapt to changing needs. Tech-Free Zone The P16-M’s simple user interface makes it easy for even non-techies to dial-in the perfect monitor mix. For example, let’s say the electric guitar is too loud in the lead vocalist’s mix; they simply press the appropriate channel button (the one labeled E. GTR) and turn the Volume control to lower the guitar level in their mix. They can also adjust Pan (left to right mix), EQ (Bass, Mid with sweepable Freq control and Treble), and much more. All of these adjustments can be made without affecting anyone else’s personal mix. Easy Installation A basic installation consists of one P16-I Input Module, which connects to the main mixing console, and up to six P16-M Personal Mixers, creating a system big enough to equip a typical recording studio, a small to medium-sized band, or a worship team. You’ll also need a few standard audio and CAT5 cables. The optional P16- MB mounting bracket allows the P16-M Digital Personal Mixer to be attached to any standard microphone, music or drum stand. The system can easily be expanded via the P16-D Digital ULTRANET Distributor, six of which can be combined to drive up to forty-eight P16-M Personal Mixers. Extraordinary Value The POWERPLAY P16 puts total control of the monitor system where it belongs—in the hands of the performers, freeing up the engineer to sculpt the perfect front-of-house mix. The POWERPLAY P16 system is the easy, affordable way to tame runaway stage volume and give your musicians and vocalists what they really want—“more me!”
Consumer Alert:
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones. Features




Converts 16 analog inputs into 24-bit digital audio to be transmitted via
standard CAT5e cable
2 x 8-channel ADAT optical inputs with auto detect and priority select

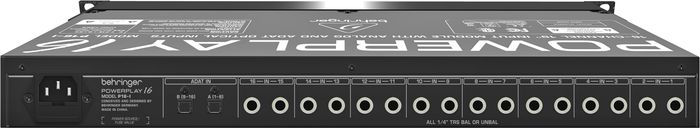

16 balanced, high-headroom TRS audio inputs
State-of-the-art 24-bit A/D converters for premium audio quality
4-position gain switches per channel pair (-10, 0, +4, +22 dB)
Digital inputs support 44.1 and 48 kHz sample rates
Ultra-low system latency of less than 1 millisecond
Signal Present and Clip LEDs per channel plus ADAT status LEDs
Standard CAT5e connection delivers power and signals for up to
6 Personal Mixers
ULTRANET expansion network connector (RJ45)
Internal autorange power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
Extremely rugged construction ensures long life even under the most demanding conditions
Conceived and designed by BEHRINGER Germany



THBS: www.music-blvd.com  $259
