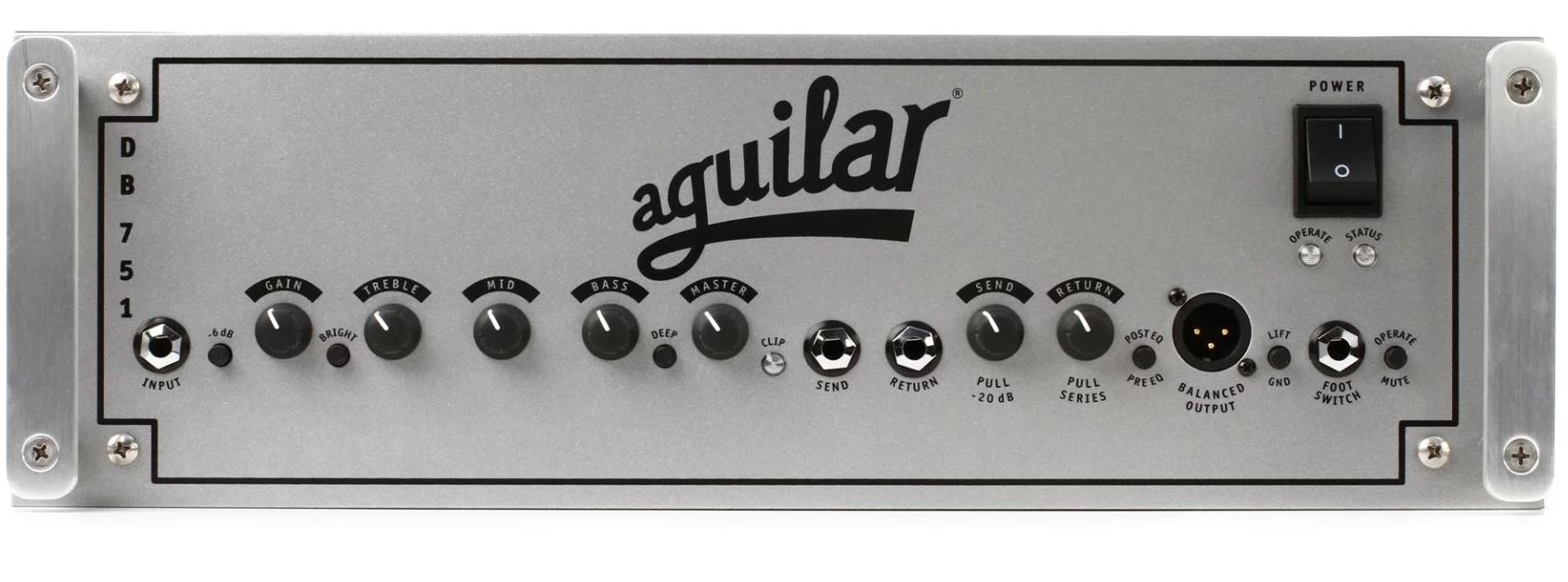

Aguilar DB 751 750 Watt Hybrid Bass Head

Description
The DB 751 features an improved preamp that combines the legendary tube driven tone of the DB 750 with greater EQ control. A perfect combination of raw power and excellent tone, the DB 751 continues the legacy set by the world famous DB 750. Delivering 975 Watts at 2 ohms and 750 Watts at 4 ohms this amp has the headroom you need to play any size venue.
Spec


Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED indicators)
Power Output: 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms
Preamp Section: Three 12AX7’s
Power Section: 12 complimentary lateral MOSFETs
Transformer: Custom Aguilar toroidal power transformer
EQ Section: passive tone stack with active midrange element, bass: +12 / -12 @ 40Hz; midrange: +12 / -12 @ 750Hz; treb: +12 / -7 @ 4kHz
Deep Switch: Adds 5 dB of broadband boost at 30 Hz
Bright Switch: Adds 5 dB of broadband boost at 5-7 kHz


Effects Loop: Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation
Inputs: One 1/4″ input jack with an active/passive switch
Outputs: Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out.
Cooling: High quality whisper fans with thermal speed control
Dimensions: 17″ W x 14″ D x 5.25″ H
Rack Size: Three Spaces, Includes detachable rack ears
Weight: 42 lbs
Warranty: Ten Year Limited
Includes: Rack Ears
Optional: FS-1 Mute Switch, Head Cases in DB Colors
