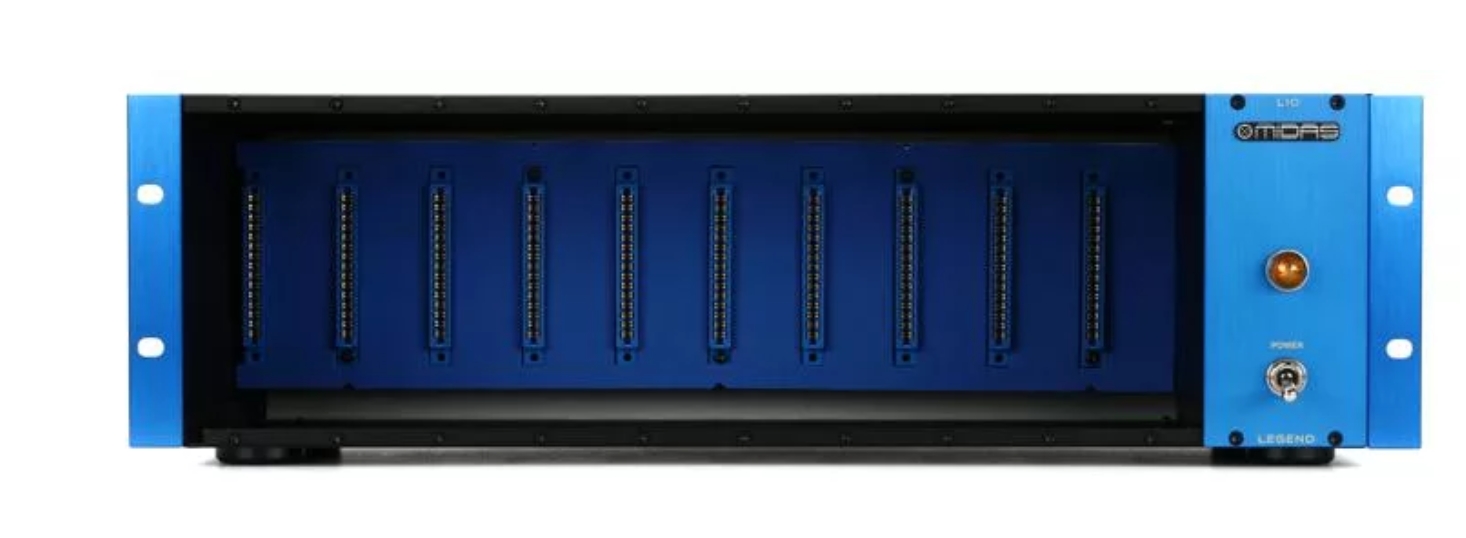

Midas L10 10-slot 500 Series Chassis

A Streamlined 10-slot 500 Series Rack
Create your ideal signal chain with the Midas Legend L10 500 Series Rackmount Chassis. The 10-slot L10 features advanced audio routing to streamline your cabling and a beefy auto-ranging universal switch-mode power supply so you can confidently travel anywhere in the world with your favorite modules. The L10 chassis provides I/O connectivity and 48V phantom power for up to 10 modules in a roadworthy steel chassis that occupies just three 19" rack spaces. And if your compressor modules support it, the L10's Comp Bus Link switches even let you link them together for stereo or multi-channel sidechain operation without the necessity of insert cables.




Optimized signal quality, simplified setup
If your 500 Series chassis does double duty in the studio and on the road, you want to minimize cabling issues. Sweetwater gets that. Which is why the L10 will be a welcome breath of fresh air. Midas spec'd the rack with cool audio output link switches that make short work of connecting and rearranging your modules without cable hassles. Simply install your modules in the order you want and the signal will daisy-chain through them without the need for additional cables. So you can keep your rack neat while optimizing signal integrity.



Midas Legend L10 500 Series Rack Features:

Accommodates 10 single-width 500 Series modules
Advanced audio routing tames cabling complexity

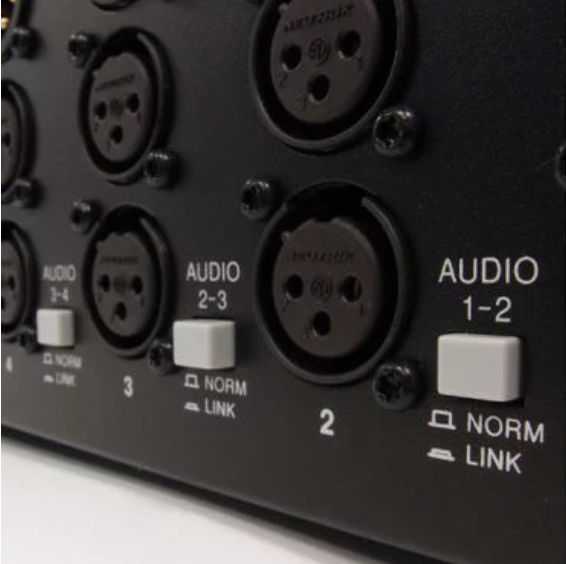

Audio output link switches for cable-free daisy-chaining between modules

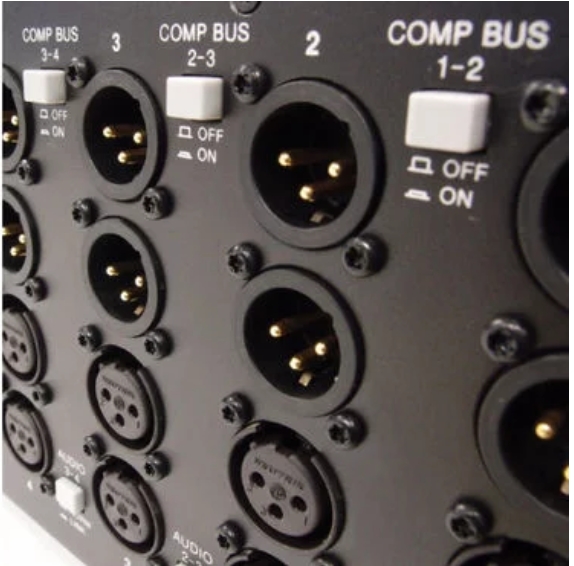

Compressor bus link switches enable stereo and multi-channel sidechain linking
Roadworthy 3U 19" rackmount chassis
Ground switch eliminates ground loop issues
High-power, auto-ranging universal switch-mode power supply for confident worldwide use
High-spec ultra-low-noise power supply output provides 3.2A @ ±16V and 300mA @ +48V

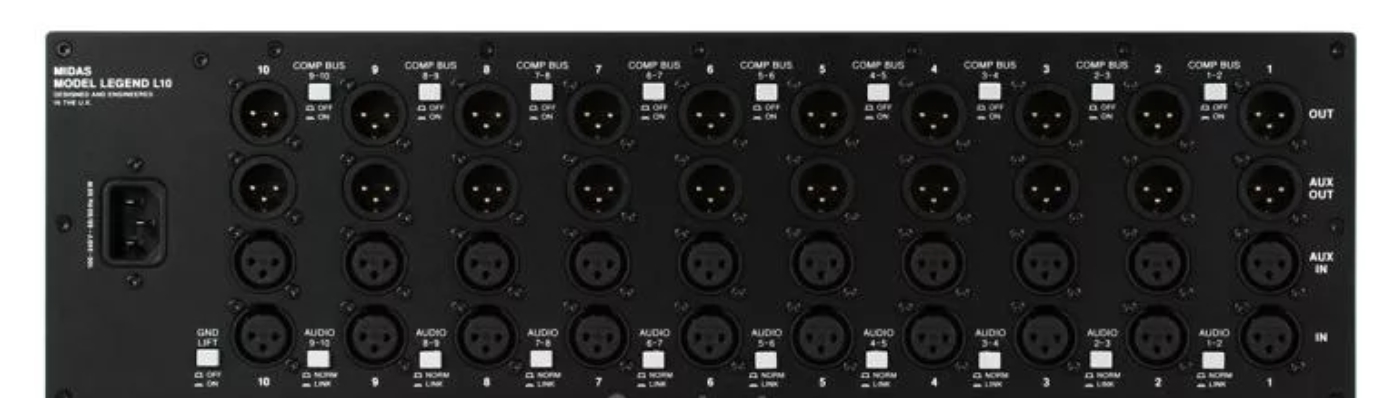

Per-channel main and aux I/O on Neutrik XLR connectors
Premium quality components used throughout for audiophile-grade signal path
Designed and engineered in the U.K.
Midas 10-Year warranty




Tech Specs

Number of Slots: 10
Inputs: 10 x XLR, 10 x XLR (aux)
Outputs: 10 x XLR, 10 x XLR (aux)
Module Power: ±16V DC 3.2A, +48V DC 300mA
Power Supply: Built-in, standard IEC AC cable
Manufacturer Part Number: 000-BR502-00010
