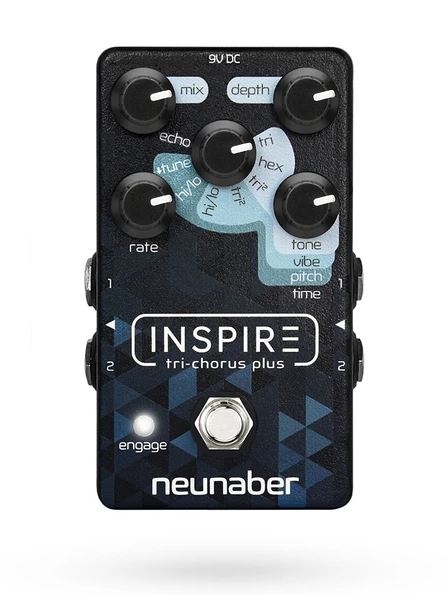

Neunaber Inspire Tri-Chorus Plus

Inspire’s newly-designed circuitry offers increased headroom while maintaining low noise. A numerically-optimized analog mix control results in unity-gain dry/wet blend throughout the range, from 100% dry to 100% effect.

Tri — the classic rack chorus effect
Hex — two tri-choruses paralleled for an ultra-dense effect
Tri2 Tone (Cascade Tone) — two tri-choruses in series create a rich, lush effect
Tri2 Vibe (Cascade Vibe) — tri-chorus and tri-vibrato in series makes for a complex sound
Hi/Lo Vibe (Harmonic Vibe) — Low-frequency tri-chorus and high-frequency tri-vibrato, a more subtle effect that works well with overdrive
Hi/Lo Detune (Harmonic Detune) — low-frequency detune and high-frequency tri-chorus, even more subtle and sounds great with heavy distortion
+Detune — tri-chorus+detune for that ultimate rack chorus tone
+Echo — tri-chorus+echo is a classic combo

Features


Controls for Effect Select, Mix, Depth (Echo Repeats), Rate, and Effect Adjust (depends on effect)
True bypass
Inputs/outputs may be used mono or stereo
Analog dry signal for low noise and zero latency
Pedalboard-friendly small footprint (4.6” × 2.9”)
Requires standard 9V or 12V pedal power supply (not included, but you may add one).
Designed and manufactured in California, USA

Electrical



Input level
instrument / consumer line level


Input impedance
> 1 MΩ


Gain
unity


Frequency response
20 Hz—20 kHz


Total harmonic distortion
< 0.002%


Signal-to-noise ratio
> 103 dBA



*See the User Guide for complete specifications.

Power



Input
9-12 V DC, 95 mA


Connector
center-negative, 5.5 mm OD x 2.1 mm ID




Physical



Dimensions
2.9” x 4.6” x 2.0” / 73 mm x 117 mm x 51 mm


Weight
8.84 oz / 251 g



www.music-blvd.com $249
