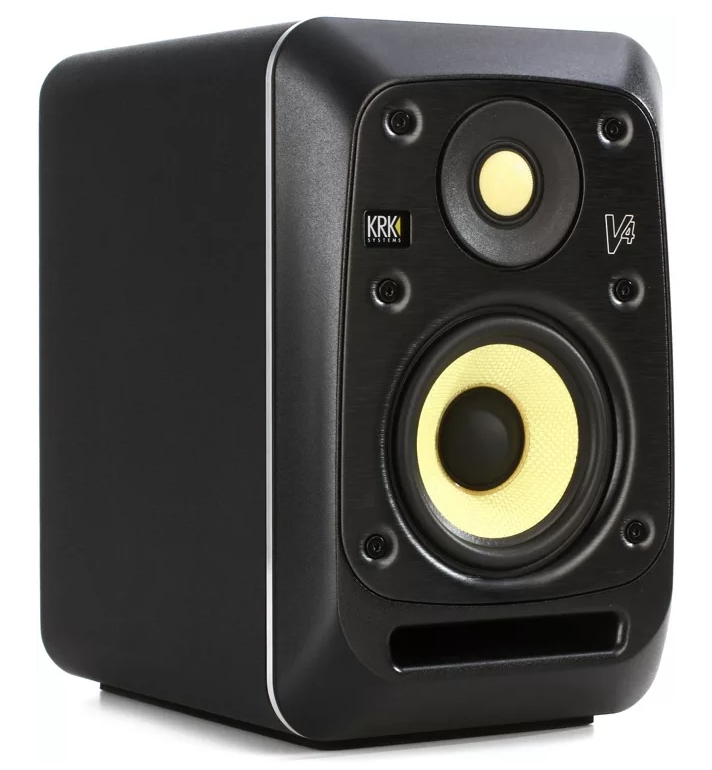

KRK V4S4 (Each)

Features

KRK custom designed Kevlar tweeter
KRK custom designed Woven Kevlar woofer
Optimised front ported bass reflex enclosure
Bi-amplified Class-D amplification
Acoustic and desk loading condition correction low frequency EQ's
Mid and high frequency EQ
49 different DSP driven EQ presets give you superior control for room/desk correction as well as personal taste
Precise input level attenuation switch
Standby, ground life, input sensitivity and logo LED selectors
Optional protective grille included for mobile broadcast applications
Friction lock, Neutrik combo (XLR and TRS) connectors
Robust EVA foam pad for non-skid and acoustic isolation
Universal threaded mounting bracket points



Specifications

Configuration: 2-Way
System Type: Active Studio Monitor
Low-Frequency Transducer: 4'' Woofer

Cast Aluminium Frame
Kevlar Cone
Ferrite Magnet


High-Frequency Transducer: 1'' Tweeter

Kevlar Dome
Ferrite Magnet


Frequency Response: 58Hz - 19kHz, ±3dB
Frequency Range: 50Hz - 24kHz, ±10dB
Crossover Frequency: 2.1kHz
Power Output: 85 Watts Total

LF: 55 Watts
HF: 30 Watts


SPL: 110dB Peak SPL
Connectors: XLR / 1/4'' Combo Input
Input Impedance: Balanced 10k
Auto-Standby: 30 Minutes
Enclosure Material: MDF/Aluminium
Grille: Perforated Steel, Powder Coated, Covered both Woofer and Tweeter (Optional)
Hardware:

Tool for Switches (Included)
Threaded Inserts on Bottom of Enclosures - Compatible with KRKSTDX4A1 Pole Mount and KRKSTDX8A1 Wall Mount


Dimensions: 10.08'' x 6.54'' x 8.58'' / 256mm x 166mm x 218mm (H x W x D)
Weight: 12.78lbs / 5.8kg


Controls

Level Attenuation: -3dB, -2.5dB, -2dB, -1.5dB, -1dB, -0.5dB, 0dB
System Settings:

A (Ground Lift)
B (Input -10dBV/+4dBu)
C (Standby On/Off)
D (Logo LED On/Off)
E (Logo LED Bright/Dim)


Low Control:

L1: Low Shelf -3dB, 75Hz
L2: Low Shelf -1.5dB, 75Hz
L3: Low Shelf -2dB, 75Hz / Low Mid Peq -2dB, 200Hz
L4: Flat
L5: Low Mid Peq -2dB, 200Hz
L6: Low Shelf +1.5dB, 75Hz
L7: Low Shelf +3dB, 75Hz


High Control:

H1: High Shelf -2dB, 10kHz
H2: High Shelf -1dB, 10kHz / High Mid Peq -1dB, 3.5kHz
H3: High Mid Peq -1dB, 3.5kHz
H4: Flat
H5: High Mid Peq +1dB, 3.5kHz
H6: High Shelf +1dB, 10kHz / High Mid Peq +1dB, 3.5kHz
H7: High Shelf +2dB, 10kHz



THSD www.music-blvd.com $399
(P)
