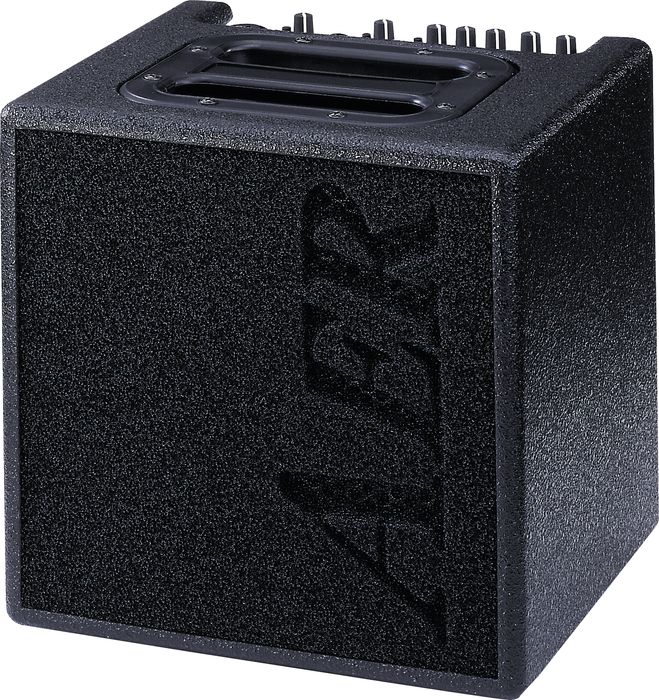

AER Alpha 40W 1x8 Acoustic Guitar Combo Amp Black

Small, smart, and surprisingly loud.

The AER Alpha is a compact combo amp for acoustic instruments. It has one channel with 2 individual inputs that allow parallel use of instrument and microphone, even though the instrument is the main focus. Inputs each have their own gain knob. Birch plywood cabinet provides great tone projection and is road tough. Dynamic controlled 40 Watts RMS and the 8" twin-cone speaker system give perfect performance at all sound pressure levels. Onboard reverb, external effects loop and headphone out. The Alpha amplifier defines the starting point of serious acoustic amplification at AER. Based on the success and the experience with the Compact 60 they have developed an even smaller, lightweight model that has no difficulties living up to the rigors of the road. Amazingly reduced, without losing what is essential for superb performance - the Alpha is a full size member of the AER product family. Open sounding and quick in response, this guitar amp masters different ranges and is not afraid of bigger instruments. Effects The AER Alpha has an integrated (internal) digital reverb effect on board. The return control determines the intensity of the effect (as far to the left as possible means no effect). Furthermore, a supplementary effect device can be connected (external effect). For this purpose, use the sockets send and return at the rear of Alpha to connect the external device (send to the input, return from the output of the external effect). The intensity will then be set by the controls of external effect device. A standard double foot switch can be connected to the footswitch socket on the rear of the amp with a stereo cable. This switch can be used to turn the internal and external effects on and off.


Features

Front panel
Combination XLR male and 1/4" inch input with individual gain knob
Line/mic preamp mode selector switch line: sources with line level, instruments with active preamplifiers and magnetic sound pick-ups, mic: symmetrical microphone input with 24V phantom source
1/4" input 2 line level with individual gain knob
Pad switch to adjust input sensitivity up position: standard line level down position: reduction by 10 db/V
LED Clip overload indicator for both channels
Color mid-range contour filter, only active for input 2
Bass, middle, treble, effect return and master levels for both inputs
On LED
Outputs
Phones: headphone output
Line-out: preamplifier output post-master control
DI-out: XLR output pre master control effect loop mono, parallel send: output, to input of an external device
Return: input, from output of an external device or from another signal source, e.g. CD player
Footswitch: connection to a double foot switch-to-switch internal and external effect on and off
Power: combined mains switch with a mains socket and a fuse holder (1 a slow-blow)
Accessory: 3/8" microphone stand adapter
Carrying bag



Size really doesn't matter when you build it right. Order today.


Alpha 40W 1x8 Acoustic Guitar Combo Amp Specifications:


Input one: XLR Combi
Line: unbalanced, 1 MEG, mic: balanced, 600 Ohm, Voice filter 300 Hz
Input two: line: unbalanced, 2.2 MEG, pad: -10dBV, eff.return: -10dBV/10k
Outputs: line: 0dBV, DI: -20dBV, send: -10dBV
Foot switch tip: built in effect, ring: external effect, sleeve: ground
EQ: bass: ±8 dB/100 Hz, middle: ±3 dB/550 Hz, treble: ±11 dB/ 10 kHz
Analog signal processor: limiter, subsonic filter and enhancer
Effect: digital reverb
power amp: power consumption - 220-240 V / 50-60Hz / 55 VA (110V / 50-60Hz)
Rating: 40 Watt / 4 ohm RMS
Mains Fuse: 1 A slow
Speaker: 8" twin-cone speaker-system (96 dB 1w/1m, freq. range 60Hz-18kHz)
Cabinet: 0.47" (12 mm) birch plywood
Dimension: 10.24' (260 mm) high, 10.43' (265 mm) wide, 9.25' (235 mm) deep
Finish: water based acrylic, black spatter finish
Weight: 14.33 (6.5 kg)
*** 0dB/V ~ 1V
*** specifications and appearance subject to change without notice



THSS: www.music-blvd.com $799/899USD
