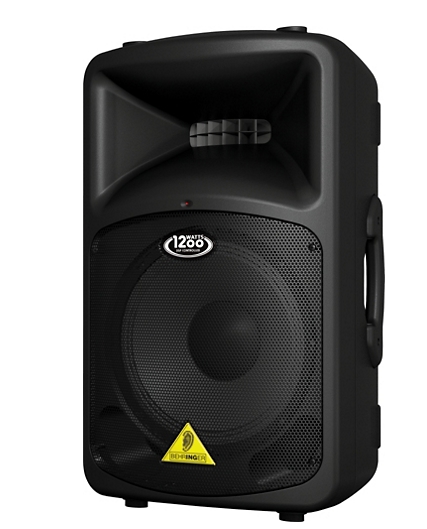

Behringer EUROLIVE B912 NEO 12 In 2 Way Speaker w DSP

OVERVIEW


DSP-controlled 1,200-Watt 12" PA speaker system with neodymium speakers and integrated mixer.
Packed with an incredible array of truly professional features, the 12" Behringer EUROLIVE B915NEO 2-way speaker—like the entire series of EUROLIVE NEO loudspeakers—is a brute providing extreme levels of low-end punch, with the kind of high-fidelity definition and clarity typically reserved for a much larger system. This powerful new speaker systems outperforms its predecessor, and weighs 30% less.Class-D Works its MagicWhat's the secret? The state-of-the-art EUROLIVE B915NEO active loudspeaker is powered by a custom-engineered Class-D amplifier, which drives the low- and high-frequency transducers to their limits without even the slightest hint of distortion. Best of all, Behringer's Class-D amplifiers use switch-mode power supplies, which don't need massive transformers and heat sinks, so they provide a much better power-to-weight ratio than many otheractive systems.Put simply, the cool-running Behringer EUROLIVE B915NEO system is much lighter than its predecessor, making it ultra-easy to transport and set up. The no-compromise design means you get solid punchy bass, along with powerful mids and pristine highs that will keep the party going all night long.Digital Signal ProcessingFrom the instant the signal enters the Behringer EUROLIVE B915NEO system, the digital processor takes over, ensuring the highest possible signal integrity. Much more than just selective EQ enhancement, the 24-bit DSP (Digital Signal Processor) circuitry analyzes the signal and intelligently applies specific filters to actually improve the sound quality. It's like having a tiny sound guy inside each enclosure (with all the best gear), monitoring the input and output signals, dialing in the perfect EQ, and constantly making subtle adjustments to the crossover, compressor/limiter, and more.Custom-Designed TransducersThe transducer (speaker) is the only part of a sound system you actually hear, so Behringer doesn't cut any corners. They wind their own voice coils, process the paper pulp into cones and even machine the frames and back plates. This enables Behringer to control the quality, and frankly, make better components&mdeash;like the neodymium woofers and 1.75" neodymium titanium diaphragm compression drivers deployed in the Behringer EUROLIVE B915NEO loudspeaker.Power to SpareCutting-edge technology and high-fidelity transducers are not all it takes to get your message across—you need power, and lots of it. At the heart of the Behringer EUROLIVE B915NEO is a bi-amped 1,200-Watt engine capable of driving the speakers to their very limit, without the slightest hint of distortion. When it comes to pure output power, the Behringer EUROLIVE B915NEO loudspeaker will simply blow you away with its massive punch, smooth mids, and articulate top-end.Instant PA SystemWith just a single Behringer EUROLIVE B915NEO loudspeaker system and one or two dynamic microphones, you can set up an instant sound system. The onboard mixer features a LEVEL control for each input and a dual-band master EQ, complete with an adjustable LOW CUT filter to help eliminate annoying breath pops and mic handling noise. An additional filter, called the CONTOUR, allows you to select SPEECH (for enhanced voice intelligibility), or MUSIC for the broader frequency range required for the high-fidelity reproduction of music. And, if you need more coverage, you can chain together as many as you like via the convenient LINE OUT XLR connector.Marvelous MonitoringWhen laid on its side, the Behringer EUROLIVE B915NEO loudspeakers tilt to the ideal angle for onstage monitor wedge applications. Hookup is simple, requiring only a single XLR cable from the monitor send on the mixing console and, of course, power. Additional monitors can be chained together via the XLR LINE OUT jack on the loudspeaker's rear panel.More Than Just a PA LoudspeakerThe Behringer EUROLIVE B915NEO loudspeaker also makes an excellent onstage monitor for keyboards, acoustic guitars, or any line-level instrument for that matter. You can plug your instrument into MIC/LINE 1 and use the MIC/LINE 2 input to connect the monitor signal from the PA mixing console, so that you can also hear the other members of your band. This opens up lots of possibilities.
FEATURES

High-power 1,200-Watt 2-way PA sound reinforcement speaker system with integrated mixer for live and playback applications
Ultra-compact and lightweight plastic composite material provides excellent sound even at extreme sound pressure levels
Powerful and lightweight 12" neodymium woofer provides incredibly deep bass and acoustic power
Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance
State-of-the-art, 24-bit digital signal processor for ultimate system control:
Digital crossover, phase and time correction for perfect driver alignment plus dual compressor/limiter for total system protection
Digital noise gate, low-cut filter, 2-band EQ, dynamic Contour filter for ultimate sound reproduction
2 Mic/Line inputs (XLR and 1/4" TRS) with individual volume controls and peak LEDs
State-of-the-art 1.75" titanium-diaphragm neodymium compression driver for exceptional high-frequency reproduction
Ultra-wide dispersion and large format exponential/conical horn with multi-cell aperture throat
Additional Line output enables linking of additional speaker systems
Versatile trapezoidal enclosure design allows different positioning: Stand mounting with 35mm pole socket or tilt on its side for use as a floor monitor
Ergonomically shaped handles for easy carrying and setup
Internal switch-mode power supply for noise-free audio, superior transient response, and very low power consumption
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany

SPECIFICATIONS
Output Power

Low-frequency range: (RMS @ 1% THD): 800W @ 8Î, (Peak power) 1200W @ 8Î
High-frequency range: (RMS @ 1% THD) 50W @ 8Î, (Peak power) 60W @ 8Î

Audio InputsXLR (servo-balanced):

Channels 1 and 2
Sensitivity: -40dBu to +10dBu
Input impedance: 27kÎ

Level control:

Channels 1 and 2
Input Trim: &pluamn; to + 50dB
Max. input level: +22dBu

Audio outputs

LINE OUT: XLR, balanced
Output impedance: 120 Î

Controls

Digital Signal Processor: 24-bit fixed-point Motorola
AD/DA converter: 24-bit / 48kHz
NOISE GATE: variable (off to -30dB < -45dB)TIMED TURNOFF: switchable (3 min.)
CONTOUR: switchable SPEECH / MUSIC contour
HIGH: 12kHz / ±15dB
LOW: 80Hz / ±15dB
LOW CUT: hi-pass filter, 40 - 160Hz (24dB / Oct.)

Loudspeaker system data

Frequency response: 45Hz to 20kHz
Crossover frequency: 1.54kHz
Sound pressure level: max. 127dB SPL @ 1m
Tweeter: 1.75" / 44mm, neodymium titanium-diaphragm HF driver
Woofer: 12" / 308mm neodymium LF transducer
Limiter Optical, dual protection for woofer and driver
Dynamic equalizer Processor-controlled, dual parametric EQs

Power Supply / Voltage (Fuses)

USA/Canada: 120 V, 60Hz (T 10 A H 250V)
Power consumption max.: 1000 Watts
Mains connection: Standard IEC connector
Dimensions (HxWxD): 660mm x 380mm x 395mm, 26.0" x 15.0" x 15.5"
Weight: 19kg / 42lb.
