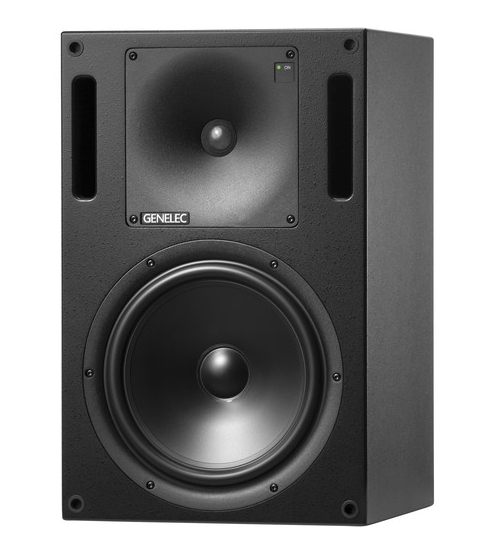

Genelec 1032C SAM Studio Monitor (single)

Key Features


10" Magnetically Shielded Woofer
1" Metal Dome Tweeter
Accepts Analog or AES/EBU Signal
Outputs AES/EBU Signal for Linking
Directivity Control Waveguide
SAM Technology for Automatic Tuning
Networkable via GLM Software
Treble Tilt, Bass Tilt, & Bass Roll-off
Switch & Rotary Control for Level
Store Standalone or Networked Settings


Genelec 1032C Specs


Studio Monitor



Monitor Type
Active 2-Way


Enclosure
Bass-Reflex, Shielded


Drivers
HF Driver: 1 x 1" / 25 mm Metal Dome TweeterLF Driver: 2 x 9.8" / 250 mm Cone


Amplification
HF Amplifier: Rated at 150 WLF Amplifier: Rated at 200 W





Performance



Frequency Response
40 Hz to 20 kHz ± 2.5 dB


Maximum Sound Pressure Level (SPL)
124 dB


Total Harmonic Distortion (THD)
0.05%


Maximum Input Level
+25 dBu


Analog Input Sensitivity/Gain
+6 to -6 dBu (Continuously Variable)


Self-Generated Noise
Less Than 5 dBA (at 3.28' / 1 m)


Protections and Limiting
Driver Protection





Signal Processing



EQ
1 x LF Shelf: -6 to 0 dB at 33 Hz1 x HF Shelf: -6 to 0 dB at 23 kHz





Crossover



Crossover Frequency
1.8 kHz





Connectivity



Audio I/O
1 x XLR Female Analog Input (10 Kilohms)1 x XLR AES/EBU Female Digital Input (110 Ohms)1 x XLR AES/EBU Male Digital Output/Thru (110 Ohms)


USB & Network I/O
2 x RJ45 (Controller, Network)





Digital Audio



Digital EQ & Crossover
GLM Software Adjustment16 x Parametric Notch Filter2 x Low Shelf EQ2 x High Shelf EQ


Max Sample Rate/Resolution
192 kHz / 24-Bit





Power



AC Input Power
100 to 240 VAC, 50/60 Hz


Power Consumption
1 W (Standby)11 W (Idle)200 W (Maximum)





General



Dimensions (W x H x D)
12.6 x 19.5 x 11.4" / 320 x 495 x 290 mm


Weight
37.5 lb / 17.0 kg





Packaging Info



Package Weight
44.4 lb


Box Dimensions (LxWxH)
26 x 17 x 17"




THCT www.music-blvd.com $2,425
