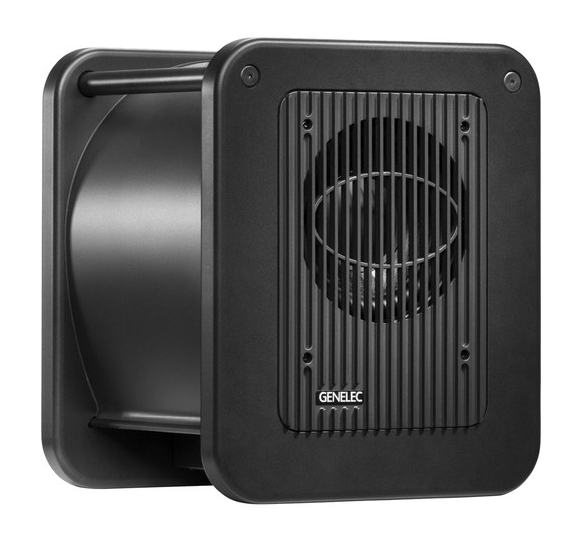

Genelec 7350A SAM 150W 8 SAM-Series Studio Subwoofer

Key Features


8" Woofer
Smart Active Monitor System
Laminar Spiral Enclosure Technology
Bass Management System
Intelligent Signal Sensing Technology
Optimized Amplifiers
Active Crossovers & Protection Circuitry
Frequency Response: 22 to 160 Hz
Class-D Amplifier: 150W
Includes Network Cable and Power Cord


Genelec 7350A Specs


Studio Monitor



Monitor Type
Active Subwoofer


Enclosure
Bass-Reflex, Shielded


Power Rating
150 W


Drivers
Subwoofer Driver: 1 x 8" / 203.2 mm Woofer





Performance



Frequency Range
22 Hz to 160 Hz (at -6 dB)


Maximum Sound Pressure Level (SPL)
104 dB


Total Harmonic Distortion (THD)
0.005%


Maximum Input Level
+24 dBu


Analog Input Sensitivity/Gain
+48 dBu to -6 dBu (Continuously Variable)


Self-Generated Noise
Less Than 5 dBA (at 3.28' / 1 m)





Signal Processing



Filters
Low-Pass at 85 HzHigh-Pass at 85 Hz





Connectivity



Audio I/O
6 x XLR Balanced Female Analog Input6 x XLR Balanced Male Analog Output1 x XLR AES/EBU Female Digital Input (110 Ohms)1 x XLR AES/EBU Male Digital Output (110 Ohms)


USB & Network I/O
2 x RJ45 (Controller, Network)





Digital Audio



Max Sample Rate/Resolution
192 kHz / 24-Bit





Power



AC Input Power
100 to 240 VAC, 50/60 Hz


Power Consumption
0.5 W (Standby)8.5 W (Idle)150 W (Maximum)





General



Dimensions (W x H x D)
13.8 x 16.1 x 12.6" / 350 x 410 x 319 mm


Weight
41.9 lb / 19.0 kg





Packaging Info



Package Weight
45.3 lb


Box Dimensions (LxWxH)
19.6 x 16.7 x 15.7"
