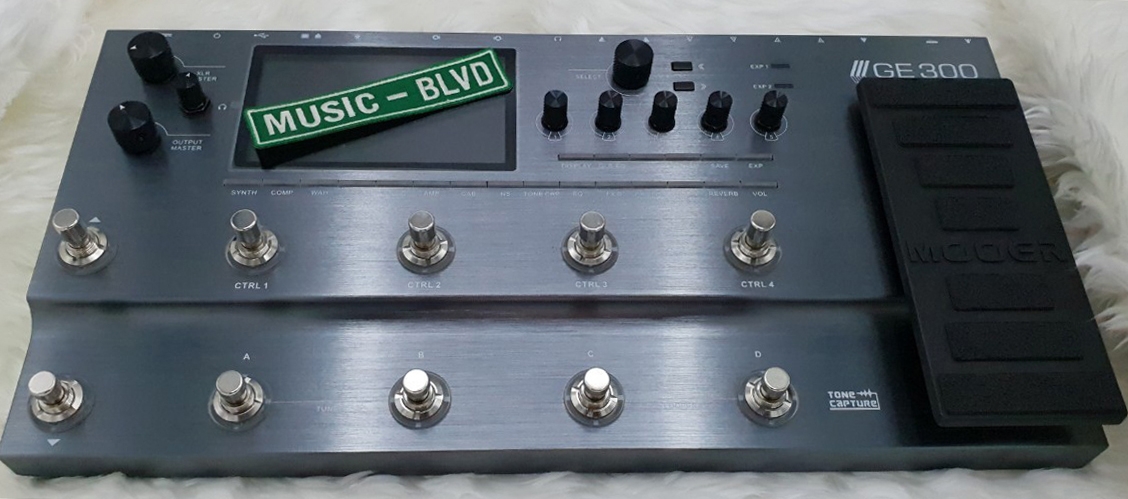

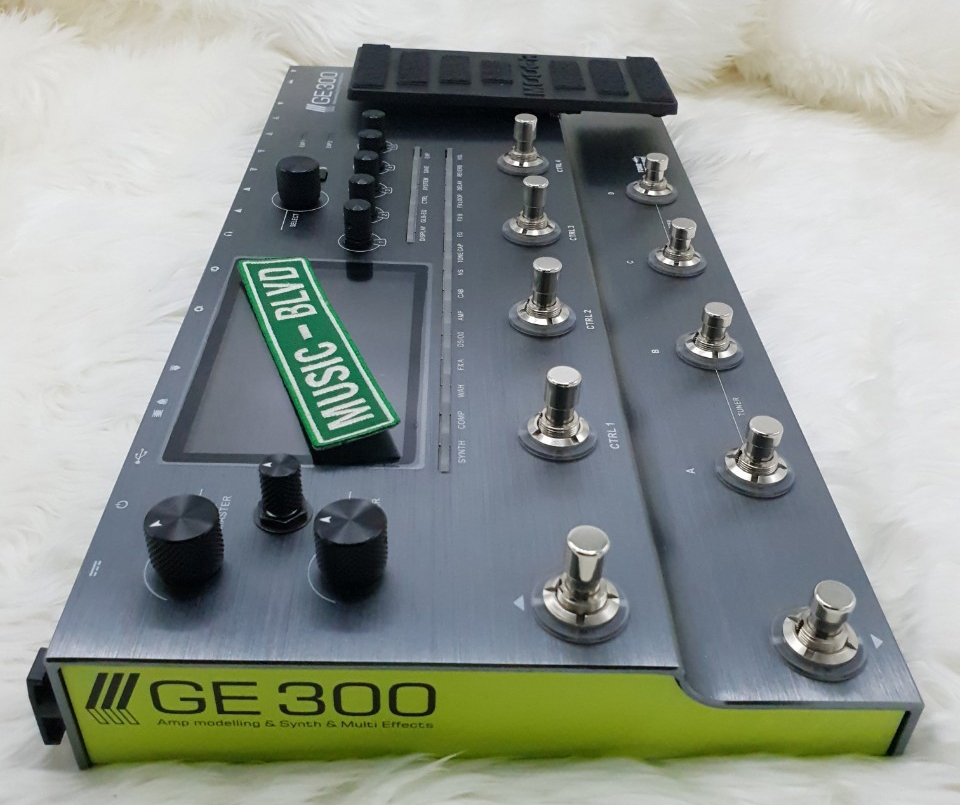

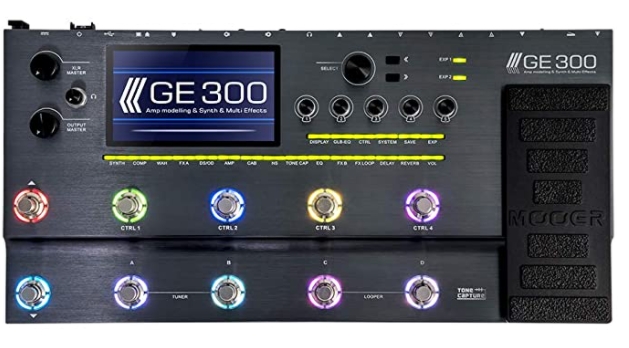

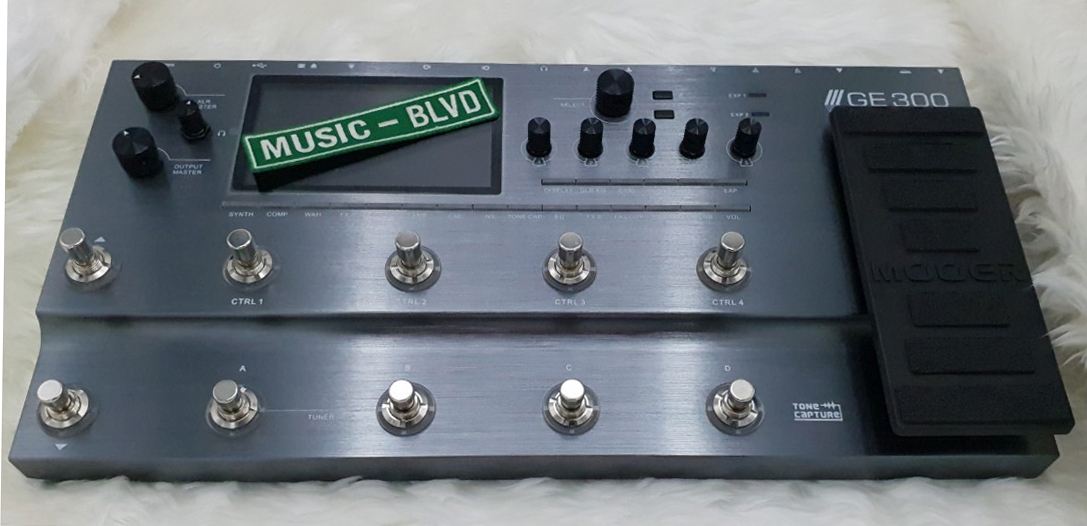

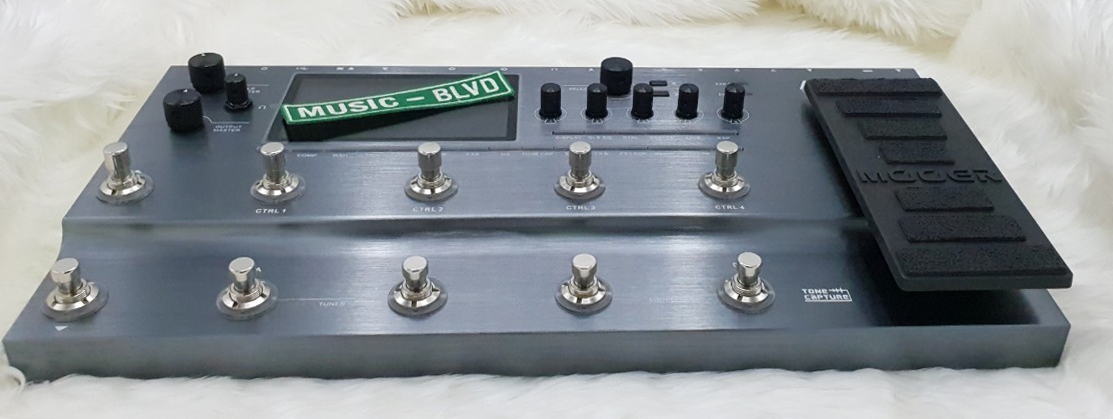

Mooer GE300 Guitar Multi-Effects

Mooer GE300 Guitar Multi-Effects
Driver & Editor Link http://www.mooeraudio.com/companyfile/GE300-Downloads-145.html
FEATURES

108 high-quality AMP models
43 IR based factory speaker cab models
Tri-voice polyphonic synthesizer module
TONE CAPTURE for sampling the tonal characteristics of guitar, amplifier, stomp box, and cabinet to create new digital preamp models, new impulse response files.
164 high-quality effects
Programmable FX loop with optional signal chain routing.
Stereo outputs (1/4’’ and XLR) with independent signal chain routing.
MIDI IN/MIDI OUT/THRU with easy mapping and external ctrl switching to control your other pedals and amps.
PROGRAMMABLE footswitches with user selectable LED colors and assignable functions, allowing complete user customization of control scheme.
Direct, low latency USB audio.
30 minutes loop station with undo/redo, direct dubbing, reverse 1/2 speed effects. Looper sessions can be stored and backed up for import /export of audio files.
High-precision programable TUNER will make sure you’re in-tune at all times.


The GE300 contains dual-DSP processors delivering the fastidious detailed characterizes of every delay, reverb, modulation or amp model inside. Thanks to the intuitive and simple UI, controls, and connection ports, the GE300 is an all-in-one working station for musicians whether in a live situation, at home, or in the studio.



With the synth module, your instrument will be transformed into an electronic synthesizer without the need for special pickups or instrument modifications, allowing you to spark your creativity with more possibilities.

As you can see from the diagram, the SYNTH ENGINE has 3 independent voices with their own parameters for waveform, pitch, attack, level, filter and arpeggiator. The signal path from the instrument input is split and routed directly to the front of each synth voice so they remain completely parallel and independent from one another. The thru dry signal can also be mixed parallel to the entire synth effect block, so you can opt for synth only or mix it with your guitar signal.



TONE CAPTURE is an intelligent learning and comparison engine that can be used to create your very own digital models by sampling real-life equipment.
The GE300 is the only MOOER product that features three different TONE CAPTURE modes.
AMP & STOMP MODE can be used to sample your favorite stomp box or amplifier. This can then be applied to an existing amp or drive pedal model within a preset to transform it into your sample.
GUITAR MODE allows you to capture the EQ characteristics of your instrument. Have you ever found yourself searching for a single instrument that has all the different guitar sounds you need? Be it classic country twang, warm ballsy blue tones, the funkadelic “4-position”, tight thrashing djent, Piezo acoustic-electric – GUITAR MODE can sample any guitar, provided it has some form of pickup, and create a detailed digital guitar model using MOOER’s proprietary non-linear IR technology.
CAB MODE allows you to create your own Impulse Response models of speaker cabinets to use instead of using the CAB effect block already installed on the GE300.



GE300 has 108 digital amp models that utilize MOOER’s non-linear amp modeling technology. Each model has been designed based on samples taken directly from real-life tube amplifiers. It is not only the accurate recurrence of the original amps’ tone but also the dynamics and feel of a real tube amp.



43 IR based factory speaker cab models with 20 user slots to load in your favorite 3rd party IR files. (Up to 2048 sample pts)



164 high-quality effects that cover all the bases from your favorite stompboxes, plugins and studio rack units.



30 minute capacity loop station with undo/redo, direct dubbing, reverse 1/2 time effects. Looper sessions can be stored and backed up for import /export of audio files. Recall that new song idea you had any time, or load in your favorite backing tracks to jam along with!



MIDI IN/MIDI OUT/THRU with easy mapping and external ctrl switching to control your other pedals and amps.



Direct, low latency USB audio lets GE300 double up as a digital audio interface and become a “one-stop-shop” solution for recording guitar. Apart from that, editor software on computer makes it an all in one working station. Firmware update via
USB available.

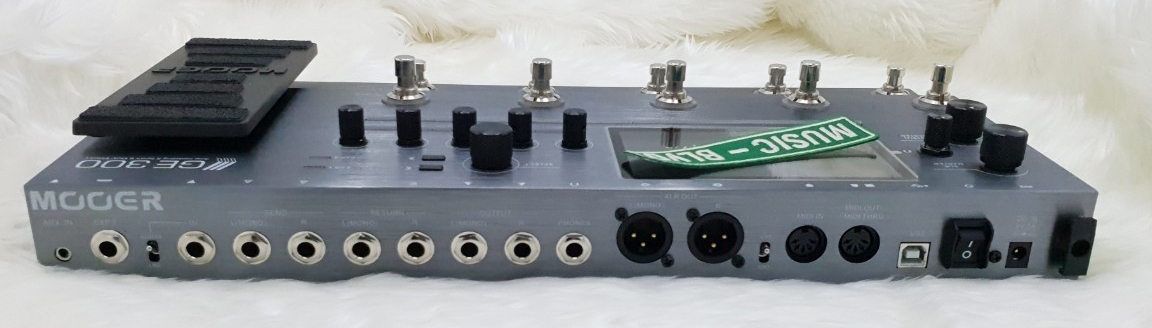

AUX IN Connect external media devices for audio playback by 1/8” stereo jack.
INPUT Instrument input, ¼” mono jack with Guitar/Line level switch.
OUTPUT 2 x ¼” mono jack.
XLR OUT 2 x Balanced XLR output with Ground lift switch.
USB Type-B USB. Connect to a computer to record direct digital audio. Interface with official MOOER software to edit and import/export presets. Support firmware update via USB.
MIDI IN For providing channel selection via MIDI commands from external devices.
MIDI OUT For controlling external devices with GE300 and creating effects presets for each preamp channel.
PHONES Dedicated headphone output. ¼” stereo jack
SEND/RETURN Integrated stereo effects loop.
EXP2 External expression pedal input. This can also be used as an external switching output. ¼” stereo jack




Specs







Algorithm


NO. of Effect Blocks
15


NO. of Effect Types
317


Patches
256 (Preset)


IR Loading
20 slots


IR Format
.wav


IR Sampling Rate
44.1kHzFull Sampling rate supported


IR Sampling Accuracy
24 Bits


IR Sampling Points
512 / 1024 / 2018 Points











Input

Input


Type
1/4” unbalanced mono audio jack


Impedance
Guitar: 1Meg ohm

Line: 10k ohm



Maximum Input Level
+12 dBu


Return


Type
1/4” unbalanced mono audio jack X 2


Impedance
1Meg ohm


Maximum Input Level
+12 dBu


Aux In


Type
1/8” unbalanced Stereo audio jack


Impedance
100k ohm


Maximum Input Level
+12 dBu


A/D Conversion


Sampling Rate
44.1 kHz


Sampling Accuracy
24bit


Dynamic
114 dB


Frequency
20Hz – 20kHz, +0 / -1 dB











Output

Output


Type
1/4” unbalanced mono audio jack X 2


Impedance
470 ohm


Maximum Output Level
+12 dBu


XLR Output


Type
XLR balanced output X 2


Impedance
300 ohm


Maximum Output Level
+18 dBu


Send


Type
1/4” unbalanced mono audio jack X 2


Impedance
100 ohm


Maximum Output Level
+12 dBu


Phones


Type
1/4” unbalanced Stereo audio jack


Impedance
16 ohm


Maximum Output Level
+12 dBu


D/A Conversion


Dynamic
114 dB


Frequency
20Hz – 20kHz, +0 / -1 dB








Others

MIDI


MIDI IN / OUT (THRU)
5 Pin Female Connector


USB


Type
USB Type B


USB Audio
USB 2.0, 2 IN 2 OUT, 44.1kHz, 24bit


EXP2 External Expression Jack


Type
1/4” TRS jack


Impedance
10k – 100k ohm


Power Supply
DC 9V, 3A,


Dimensions
410mmX201mmX62mm


Weight
3.0 kg


Accessories
Power Supply, USB Cable, Quick Guide manual.



THCT www.music-blvd.com 529 euro
