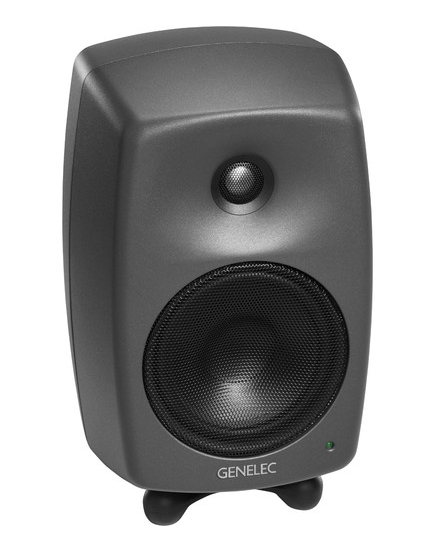

Genelec 8330A SAM Series 5 2-Way 100W Active Studio Monitor (Single)

Key Features


Powerful 100W Class-D Amplification
5" Woofer, 3/4" Metal-Dome Tweeter
Proprietary Waveguide for Sweetspot
Bass Reflex Port For Low-End Extensio
Supports Software Control & Calibration
Low-Diffraction Aluminum Enclosure
XLR Analog and Digital Inputs
Power-Saving Mode & Overload Protection
Multiple Mounting Options
Includes Isolation Stand


Genelec 8330A Specs


Studio Monitor



Monitor Type
Active 2-Way


Enclosure
Bass-Reflex, Shielded


Drivers
HF Driver: 1 x 0.7" / 1.9 cm TweeterLF Driver: 1 x 5.1" / 13 cm Woofer


Amplification
1 x HF Amplifier: Class-D Rated at 50 W1 x LF Amplifier: Class-D Rated at 50 W





Performance



Frequency Range
45 Hz to 23 kHz (at -6 dB)


Frequency Response
58 Hz to 20 kHz ± 1.5 dB


Maximum Sound Pressure Level (SPL)
110 dB


Total Harmonic Distortion (THD)
0.05%


Maximum Input Level
+24 dBu


Analog Input Sensitivity/Gain
-6 dBu (Continuously Variable)


Self-Generated Noise
Less Than 5 dBA (at 3' / 1 m)





Crossover



Crossover Frequency
2.9 kHz





Connectivity



Audio I/O
1 x XLR Female Analog Input (10 Kilohms)1 x XLR AES/EBU Female Digital Input (110 Ohms)1 x XLR AES/EBU Male Digital Output/Thru (110 Ohms)


USB & Network I/O
2 x RJ45 (Controller, Network)





Digital Audio



Max Sample Rate/Resolution
192 kHz / 24-Bit





Power



AC Input Power
100 to 240 VAC, 50/60 Hz


Power Consumption
0.5 W (Standby)3 W (Idle)50 W (Maximum)





General



Enclosure Material
Aluminum


Dimensions (W x H x D)
7.4 x 11.8 x 7" / 18.9 x 29.9 x 17.8 cm


Weight
12.1 lb / 5.5 kg





Packaging Info



Package Weight
13.55 lb


Box Dimensions (LxWxH)

17.4 x 11.8 x 11.7"
