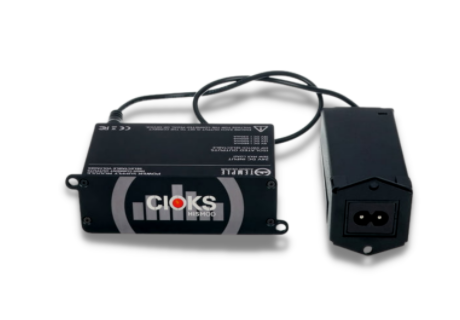

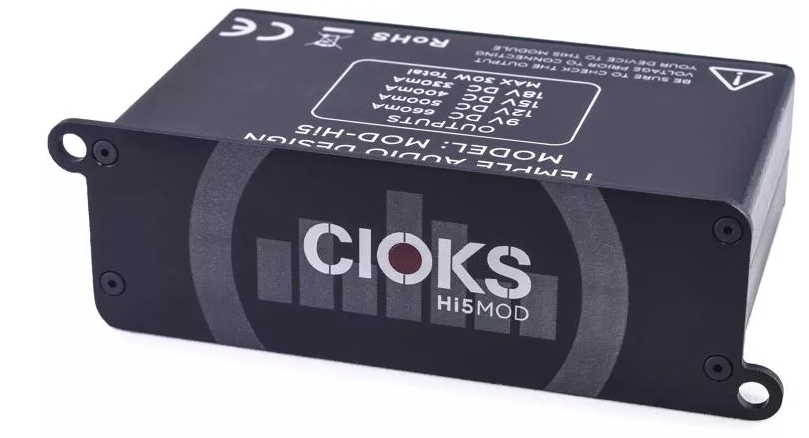

Temple Audio Hi5 MOD High Current Isolated Power Module With AC Adaptor

High-current Power Supply for Your Templeboard
Built in cooperation with CIOKS — the high-power pedalboard power supply experts — the Hi5 MOD packs a ton of juice into a compact Templeboard mini module. This power supply features five high-current, isolated outlets. Each outlet is individually configurable to 9, 12, 15, or 18 volts, and boasts enough current to power nearly any commercially available DC pedal. It mounts into the modular end panel of your Templeboard, which preserves real estate on the top and bottom of your board. What’s more, when we ran the Hi5 MOD through its paces here at Sweetwater, we found it to be one of the cleanest power supplies we’ve ever used. The Hi5 MOD includes a 24-volt DC auxiliary outlet for linking with additional power supplies and eight Flex cables for connecting your pedals.







Temple Audio Hi5 MOD Features:

Packs a ton of juice into a compact Templeboard mini module
5 high-current (660mA), isolated outlets
Each outlet is configurable to 9V at 660mA, 12V at 500mA , 15V at 400mA, or 18V at 330 mA
Boasts enough current to power nearly any commercially available DC pedal
Mounts into the modular end panel of your Templeboard to preserve pedalboard real-estate
One of the cleanest power supplies on the market
24-volt DC auxiliary outlet for linking with additional power supplies
Includes 8 Flex cables for connecting your pedals





Tech Specs

Type:Pedalboard Power Supply Module
Inputs:24V DC (in/out)
Outputs:9V DC 660mA, 12V DC 500mA, 15V DC 400mA, 18V DC 330mA
Maximum Output Current:AC adapter dependent
Connectivity:RCA
Height:1.08"
Width:3.78"
Depth:2.35"
Weight:0.35 lbs.
Manufacturer Part Number:MOD-Hi5
