Versatile connectivity
The Xone 43 can be the centre piece to your DJ setup thanks to the range of connectivity options. Whether operating a home or professional setup, every input you require including phone and line inputs, RCA/phone, 4 stereo dual input channels and MIC/AUX input channel are available. It is possible to connect up to four simultaneous sources, making switching simple between vinyl, CV/media players or external effects. The Xone 43 also has a range of output options. A separate booth output allows you to monitor whilst running audio to external speakers. A headphone jack can also be used for monitoring your performance.

X:FX
The design of the Xone 43 provides you with a better X:FX control. X:FX is an intuitive and simple way to work with your favourite external FX units. A single control per channel is designated to the send return of your effects unit. Once your FX unit is connected and X:FX is activated, simply use the wet/dry knob on a channel to send that signal to the fx unit.

A versatile crossfader
The Xone 43 is fitted with a customisable crossfader. Three different curve settings can be used to adapt to your DJ’ing style. Dipped, dipless and fast-cut crossfader settings can be utilised for both scratch and cut mixing. The crossfader is interchangeable should you wish to upgrade your Xone 43 further.

Intuitive design
A rugged build protects the analog design of the Xone 43, making it an ideal mixer for any professional or home studio set up. The VCA faders and durable, built to withstand intense performances and regular use. The backlit LED’s provides good visibility in low light environments. This helps you see what is CUE’d and whether filter FX are applied.

Features
4 channells with phono/line inputs
VCF Filter system – low-pass, high-pass and band-pass filters plus frequency and resonance controls
3-band EQ
External FX loop (Send/Return) system with dry/wet control per channel
Mic input on balanced XLR, with 2-band EQ
Balanced main mix out on XLR
Smooth VCA channel faders
User changeable crossfader
Innofader compatible
Crossfader curve switch
Independent booth out
Record out
3.5mm and 1/4″ headphone outputs
Touring grade build quality
20dB pro standard headroom
9-segment signal level monitoring
Specifications
Nom/max output levels
Main mix: +4dBu, +27dBu
Booth: 0dBu, +22dBu
X:FX send: 0dBu, 20dBu
Record out: 0dBu, +20dBu
Internal headroom: Channels +20dB
Frequency response: +/-0.5dB 20 Hz - 20kHz
Distortion: 0.05 THD+noise @1kHz
Crosstalk: -83dB inter-channel
Residual noise
Mix 1: -89dBu
Booth: -93dBu
X:FX -77dBu
Rec: -92dBu
Mix noise
Mix 1: -82dBu
Booth: -84dBu
X:FX -77dBu
Rec: -87dBu
Channels and faders
Channel meters: Peak reading 9 LED -20dB - +10dB
Main meters: Peak reading 9 LED -20dB - +10dB
Mic EQ: 2-Band +/-12dB
Channel EQ: 3-Band +6dB / total kill
Channel fader: 45mm stereo VCA, Crossfader: 45mm stereo VCA - replaceable
Filters: Stereo VCF, analogue
Physical
Dimensions: 320mm x 110mm x 370mm
Weight: 5.1kg
Power: 20W max


THOTH: www.music-blvd.com 999
(M)

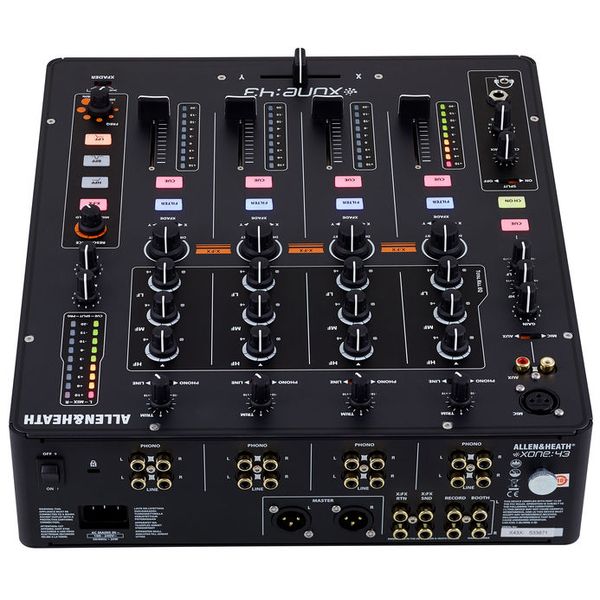

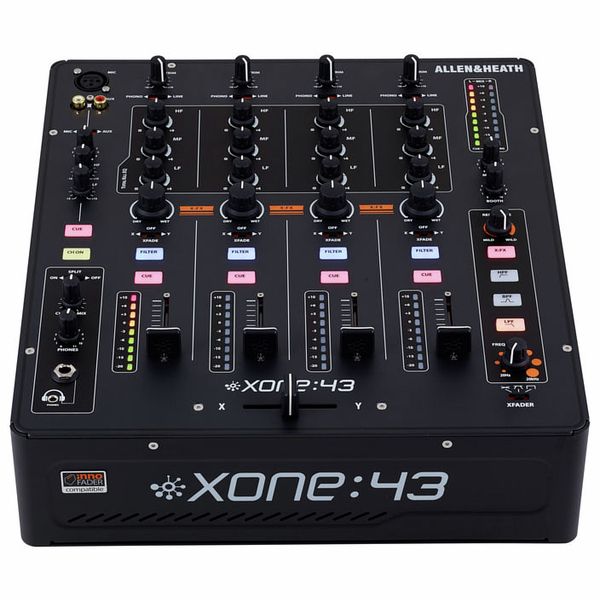

Allen & Heath Xone:43 4-channel DJ Mixer
