Compact classics, one box
The PX-1 puts a curated library of 16 BOSS icons at your feet, loading one model at a time for a clean, focused signal path that sounds and feels like the originals. Choose your effect and enjoy instant access to proven tones without hauling a whole board of separate pedals
Authentic feel, focused DSP
Newly developed algorithms run on a powerful processor dedicated to a single effect, so dynamics, sweet spots and knob responses behave just right. The familiar BOSS layout and a clear display make dialling in stage-ready sounds fast, even under low lights
Flexible control and connectivity
Stereo in/out opens up wide chorus, flanging and panning, while tap tempo and TRS MIDI keep delays and modulations locked to the groove. Add external footswitches or an expression pedal to sweep parameters live, and use Swap to jump between two loaded effects mid-song
Expand as you go
Grow the palette with additional models via affordable Model Passes in the BOSS Effect Loader app over Bluetooth or USB-C. Power it from the included adaptor or USB, add it to any rig with ease, and gig with confidence thanks to the five-year BOSS warranty
Specifications

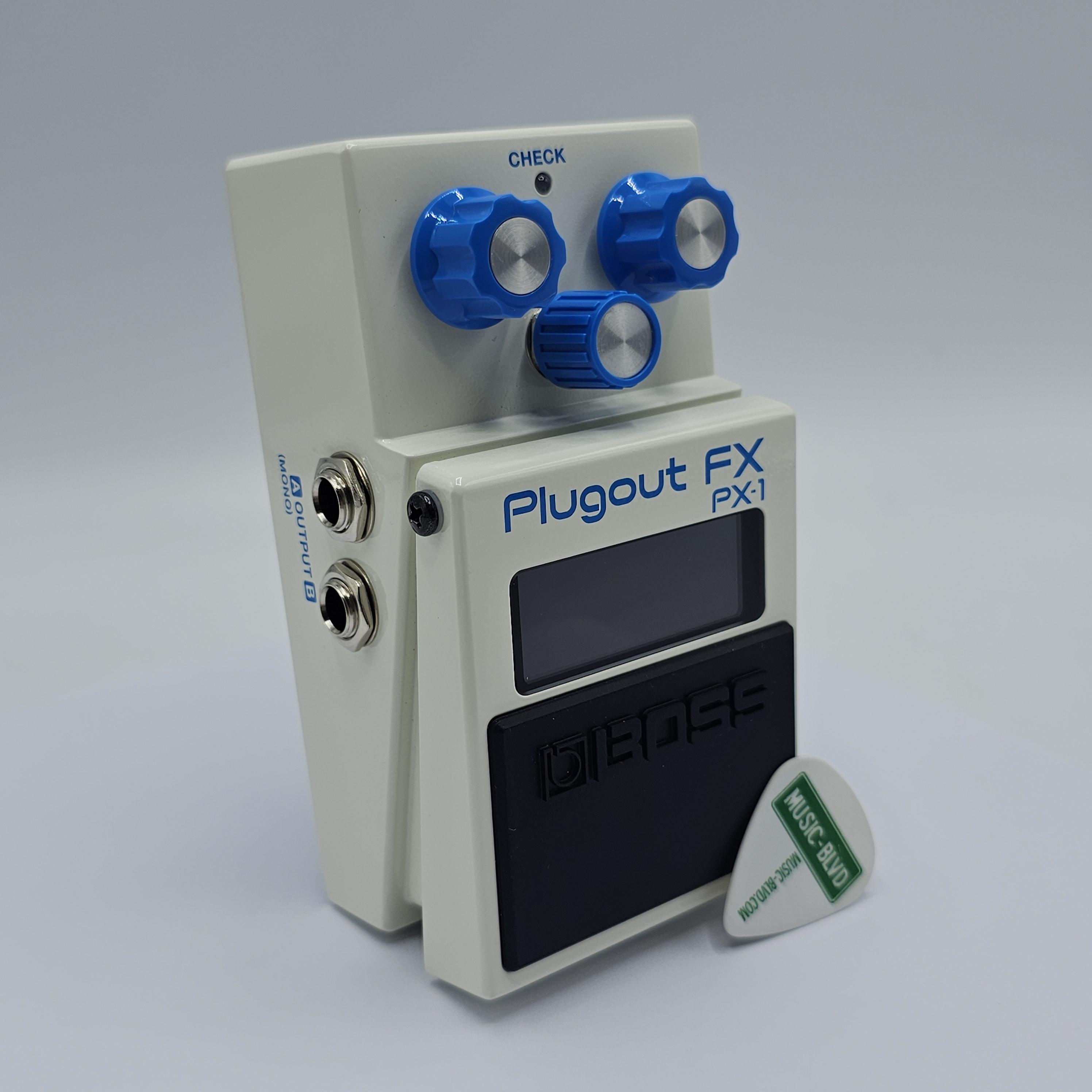

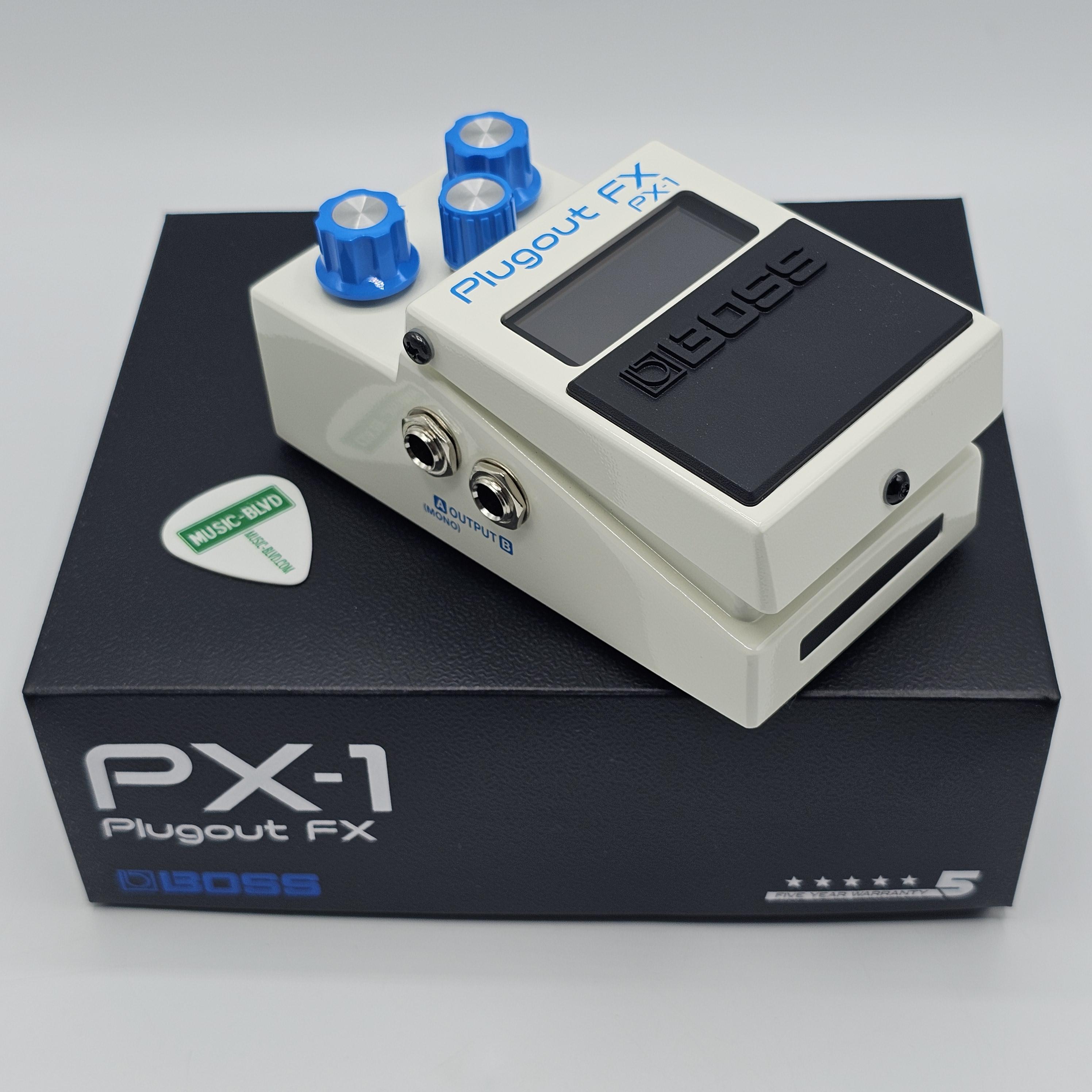

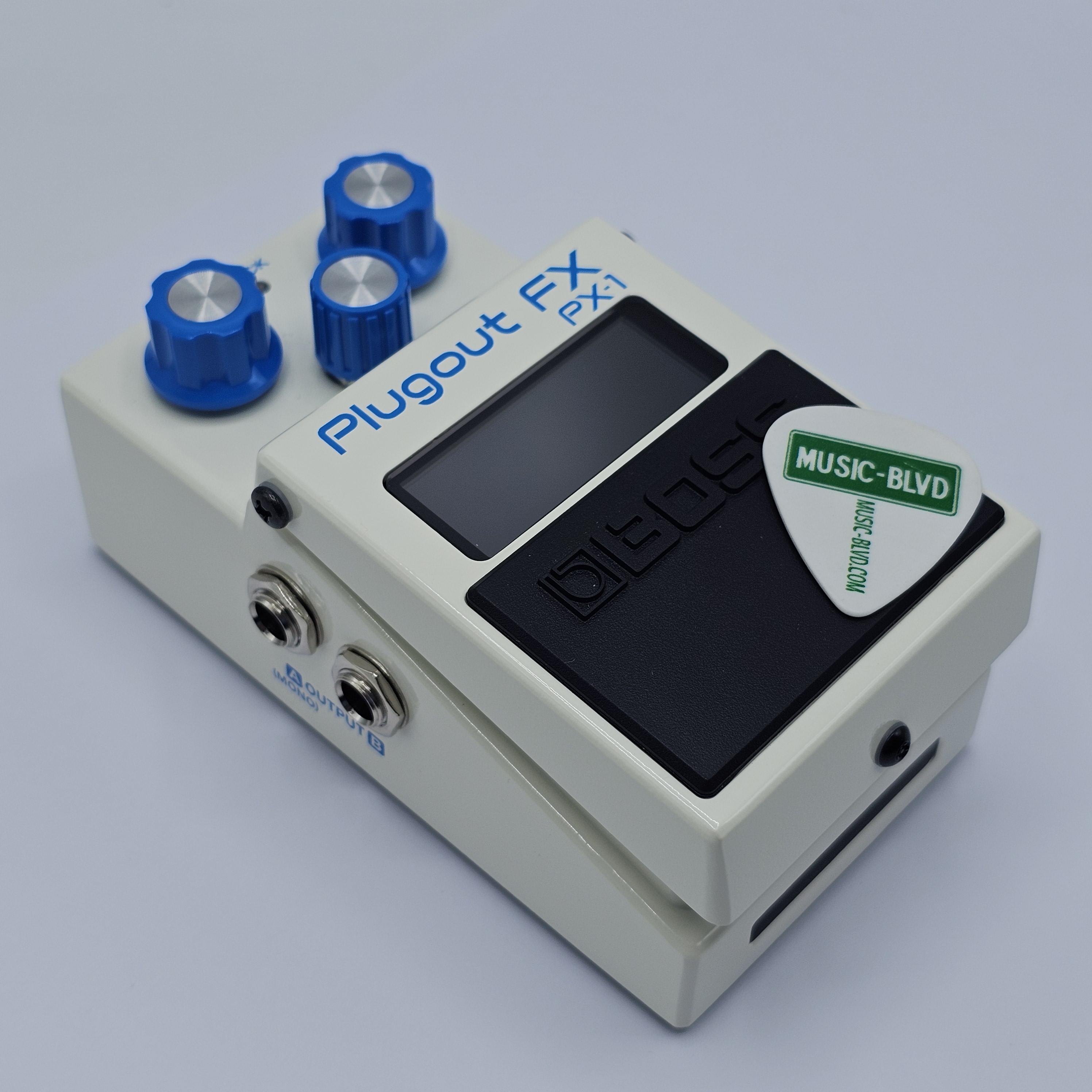

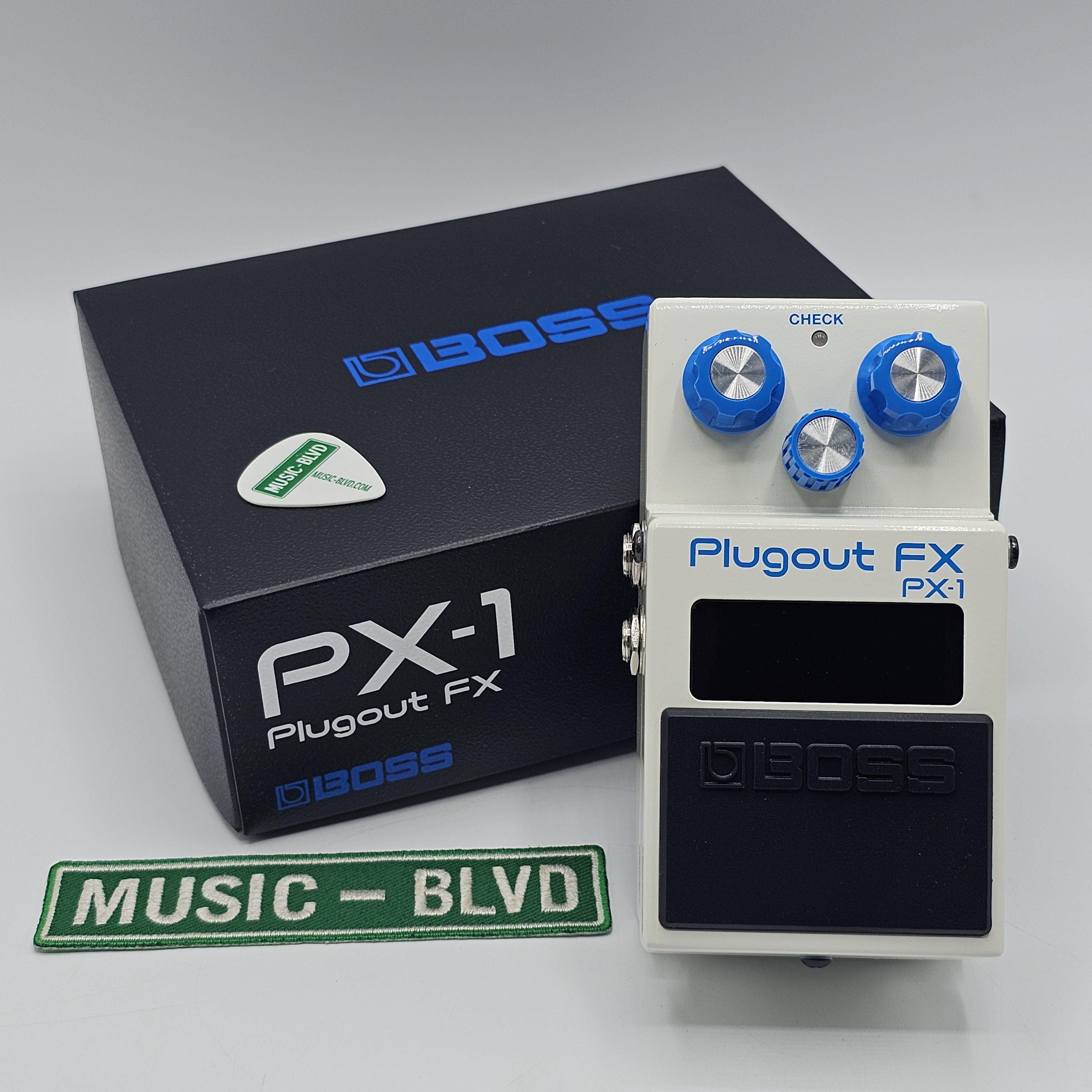

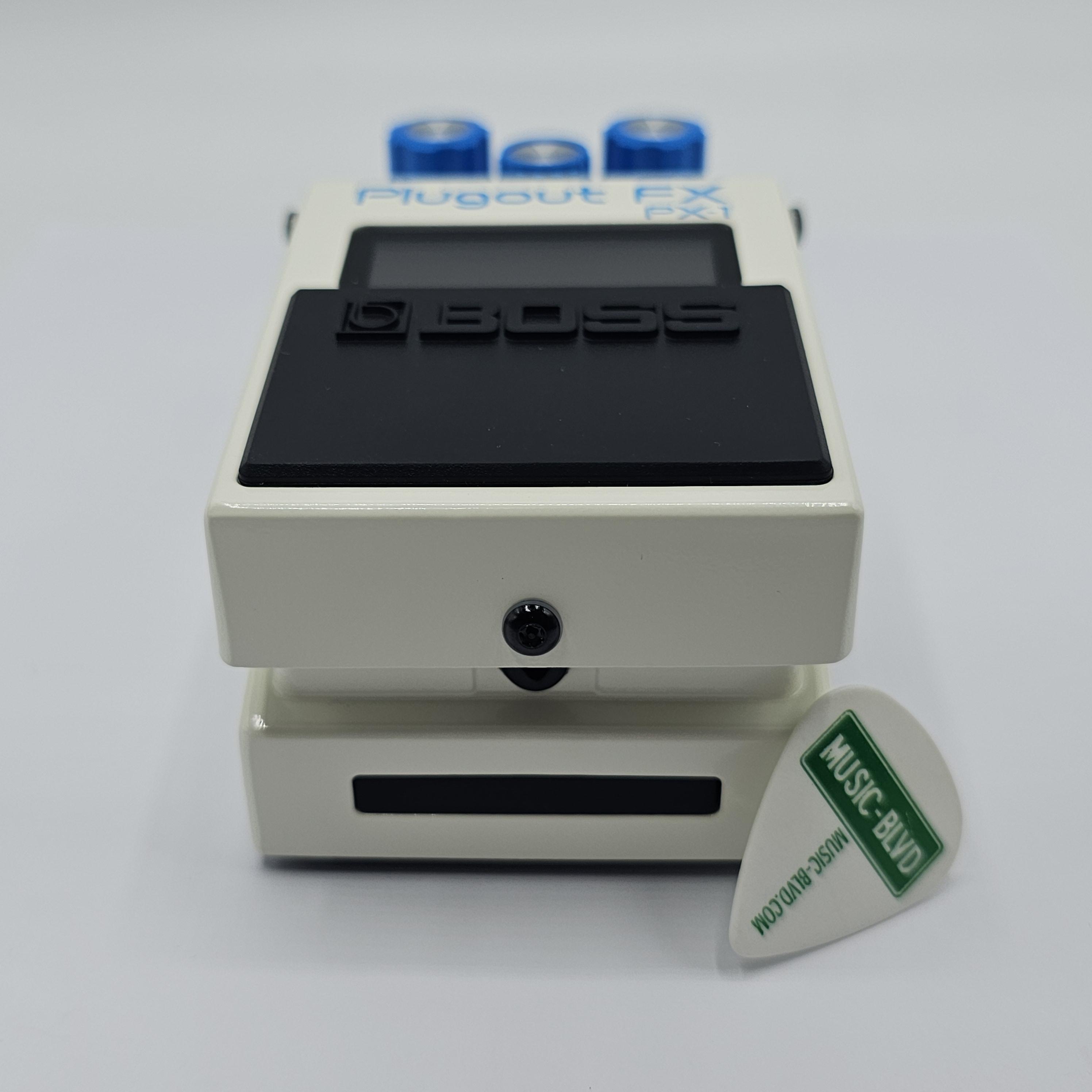

Product Name: BOSS PX-1 Plugout FX
Product Code: PX-1
Format: Convertible single-effect pedal platform
Operation: Loads one model at a time for a focused signal path
Bypass: Buffered bypass
Warranty: BOSS five-year warranty
Dimensions: 73 (W) x 125 (D) x 56 (H) mm; 2-7/8 (W) x 4-15/16 (D) x 2-1/4 (H) inches
Weight (excluding AC adaptor): 400 g; 15 oz

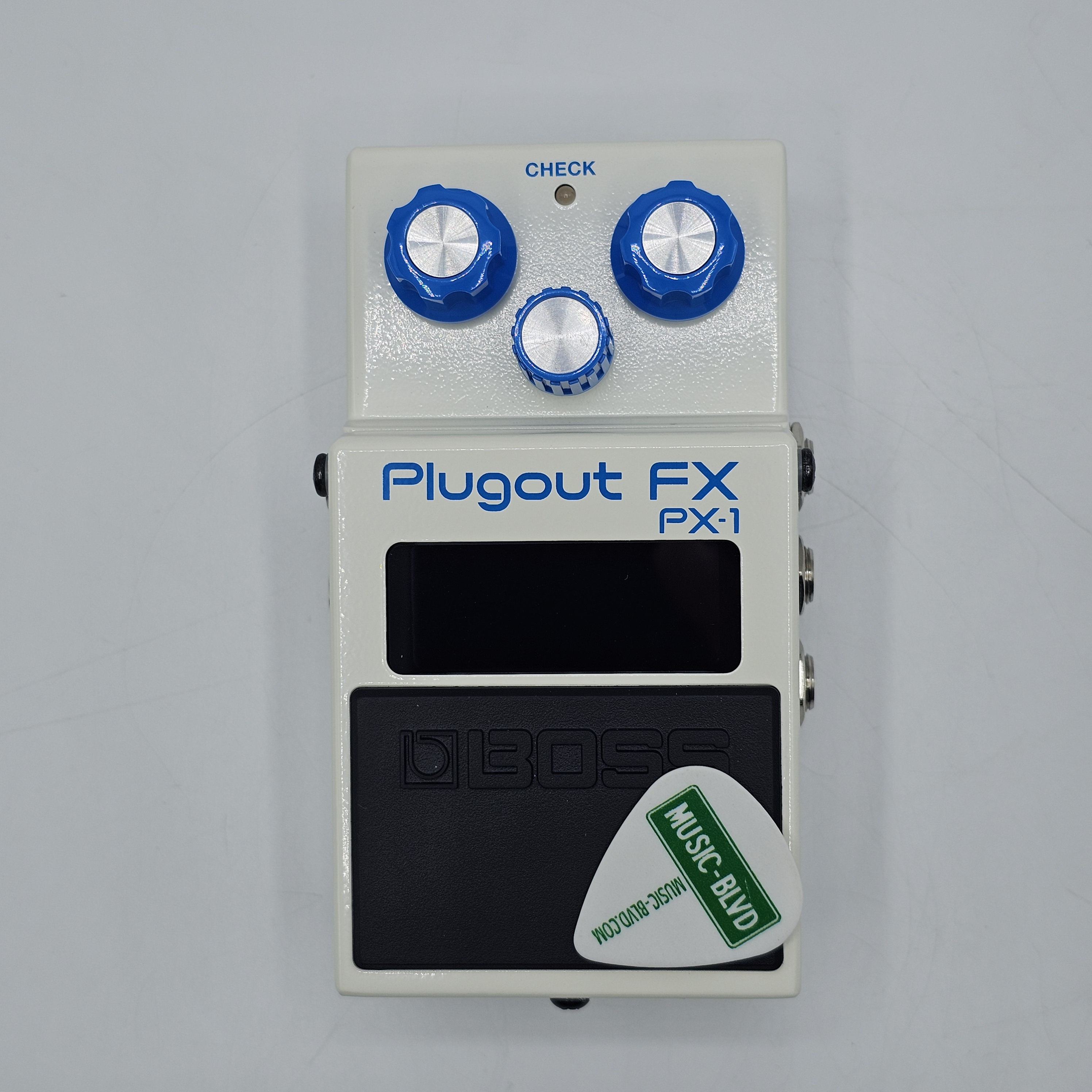

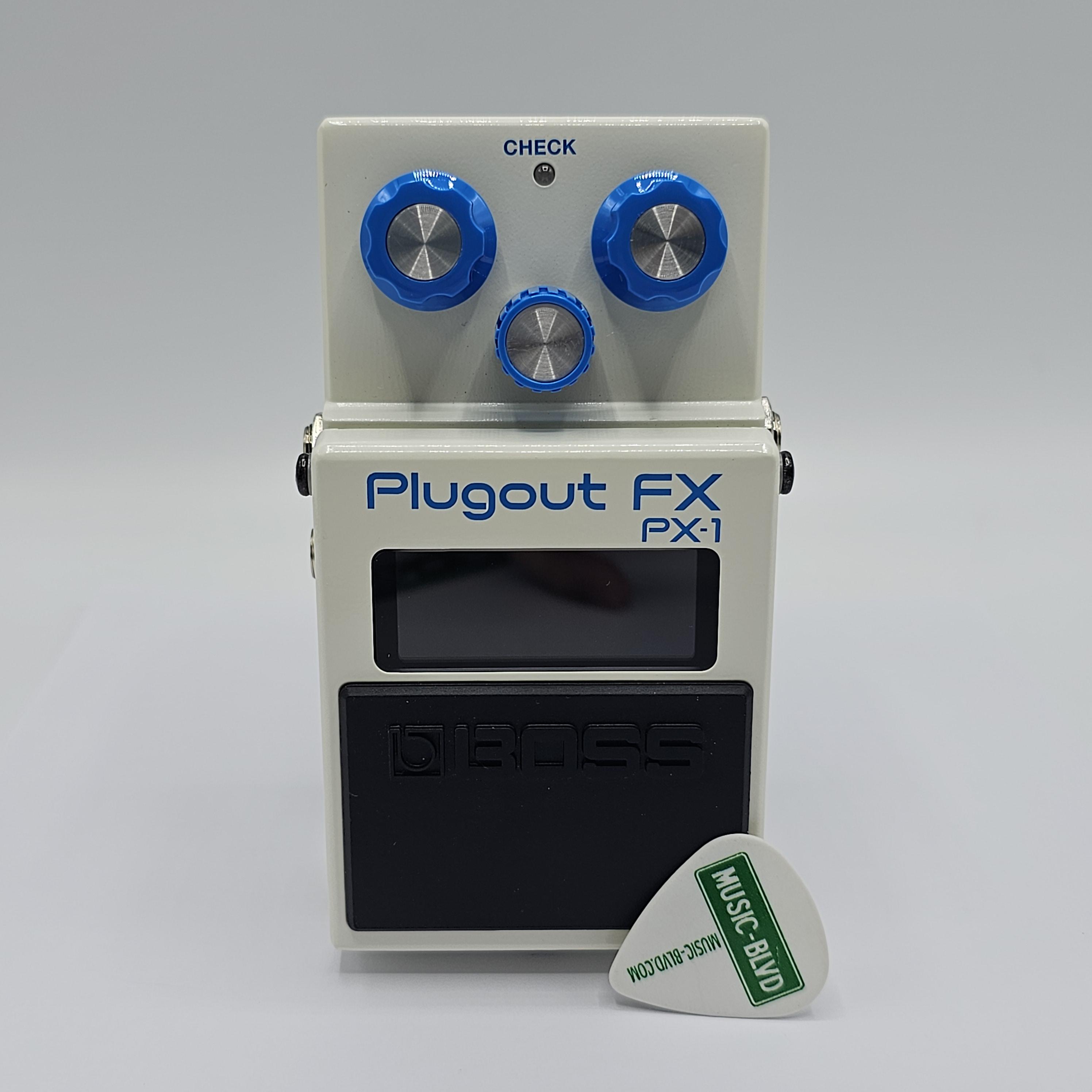

Controls: LEFT knob, CENTER knob, RIGHT knob, pedal switch
Indicator: CHECK indicator
Display: Graphic LCD 128 x 48 dots
Bluetooth: GATT profile (MIDI over Bluetooth Low Energy)
Editor/app: BOSS Effect Loader via Bluetooth or USB-C
Processing: Dedicated DSP per effect for authentic tone and response
Sampling frequency: 48 kHz
AD conversion: 24 bits + AF method (Adaptive Focus method)
AF method note: Proprietary Roland & BOSS technique that markedly improves AD/DA S/N
DA conversion: 32 bits
Nominal input level: INPUT A (MONO), INPUT B: -20 dBu
Maximum input level: INPUT A (MONO), INPUT B: +7 dBu
Input impedance: INPUT A (MONO), INPUT B: 1 MΩ
Nominal output level: OUTPUT A (MONO), OUTPUT B: -20 dBu
Maximum output level: OUTPUT A (MONO), OUTPUT B: +7 dBu
Output impedance: OUTPUT A (MONO), OUTPUT B: 1 kΩ
Recommended load impedance: OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater

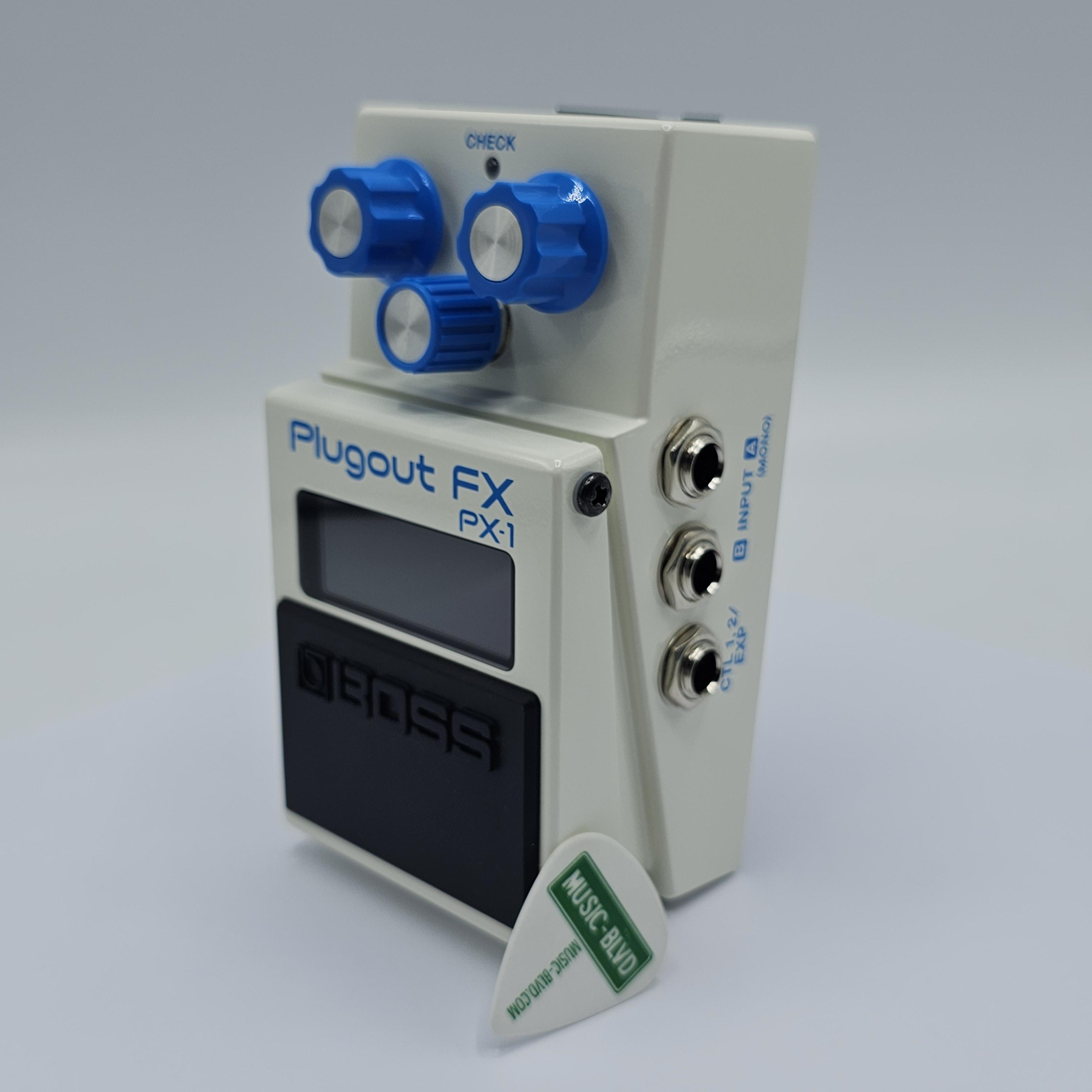

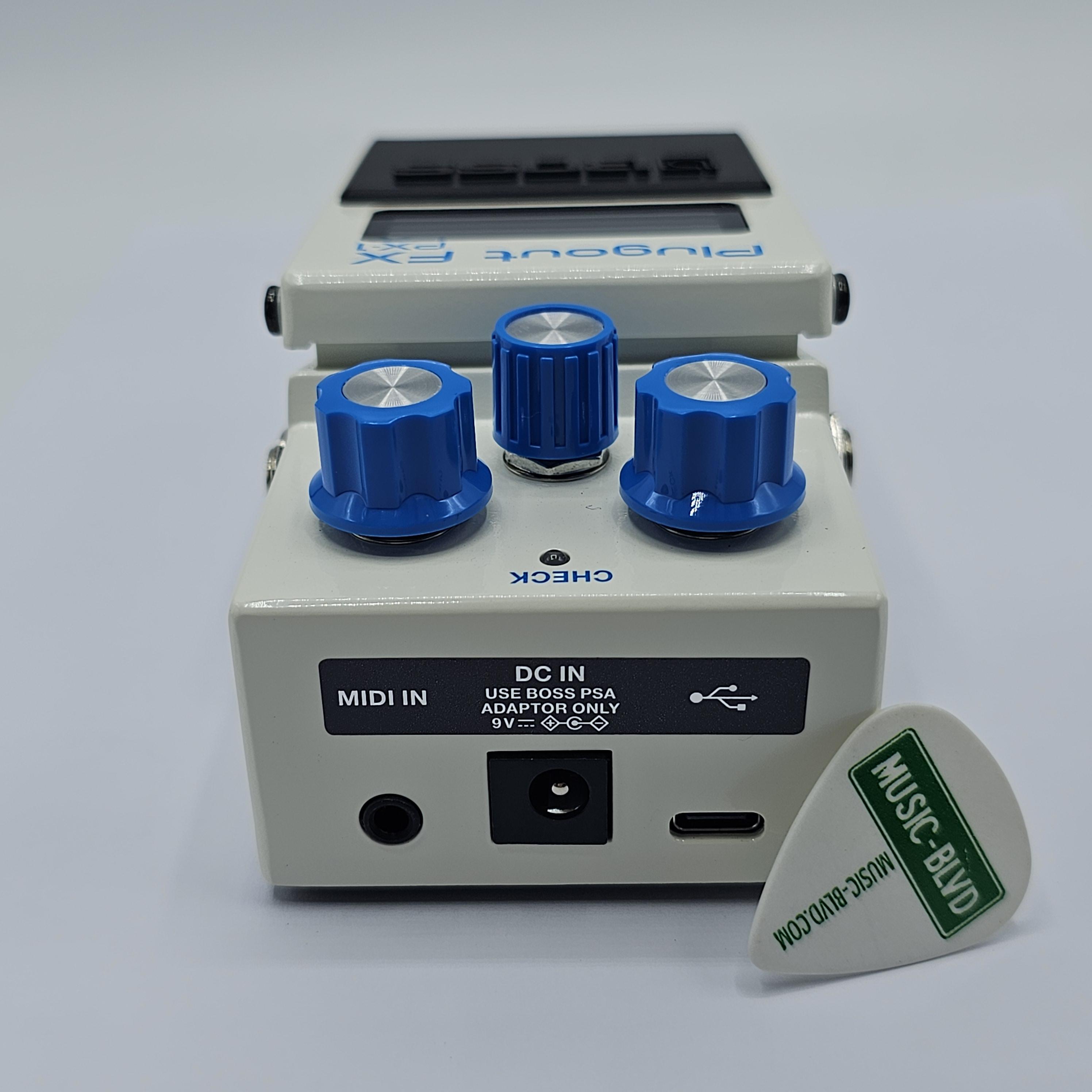

Connectors: INPUT A (MONO), INPUT B, OUTPUT A (MONO), OUTPUT B: 1/4-inch phone type; CTL1,2/EXP: 1/4-inch TRS phone type; DC IN; MIDI IN: stereo miniature phone type; USB COMPUTER: USB Type-C
Inputs/outputs: Stereo input & stereo output
Tap tempo: Supported; MIDI clock sync via TRS MIDI IN
External control: Supports 1–2 footswitches or an expression pedal
Power supply: AC adaptor or USB bus power
Current draw: 260 mA (AC adaptor), 420 mA (USB)
Included effects (16): OD-1, SP-1, PH-1, SG-1, CS-1, TW-1, SD-1, DS-1, CE-2, BF-2, PN-2, OC-2, PS-2, VB-2, DD-2, DF-2

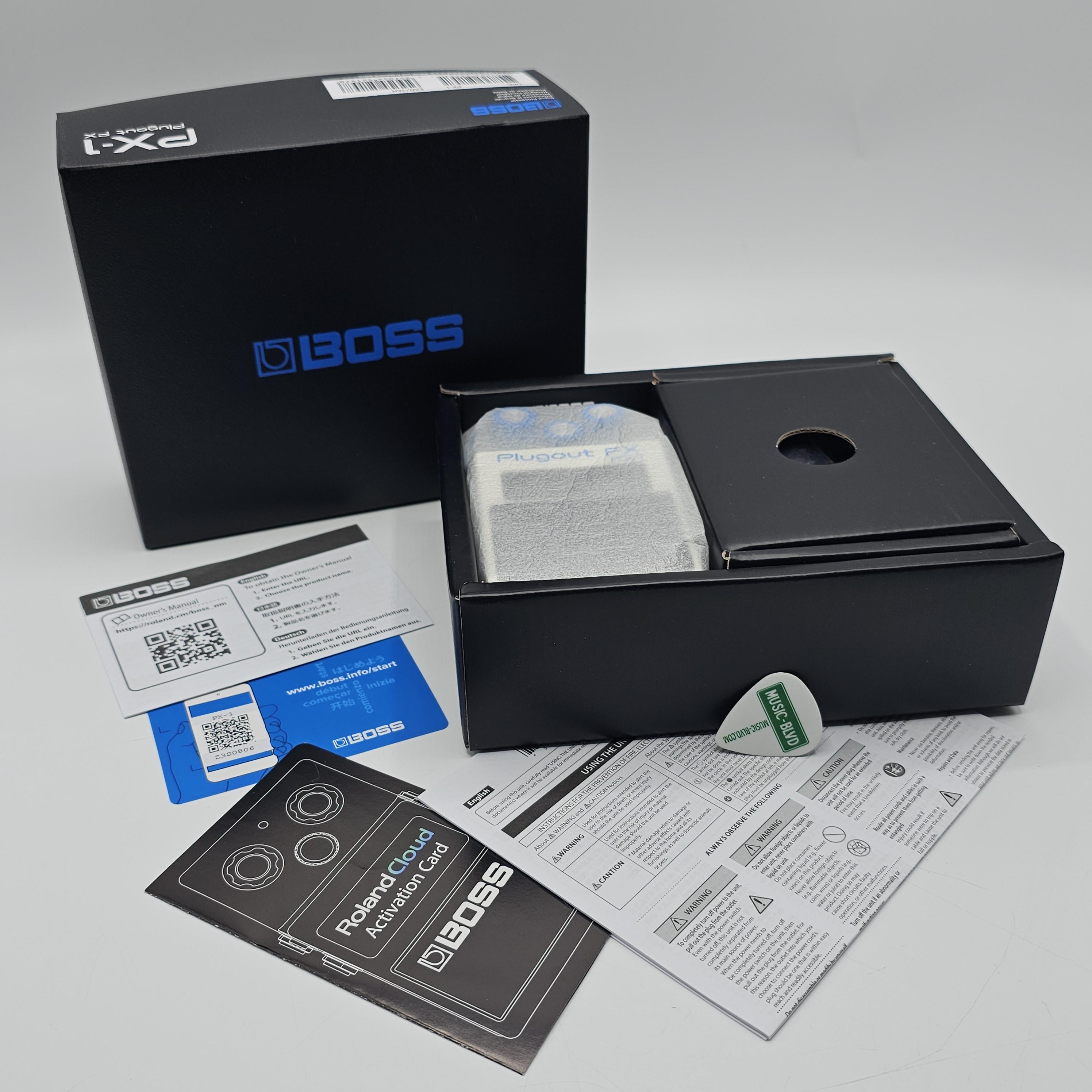

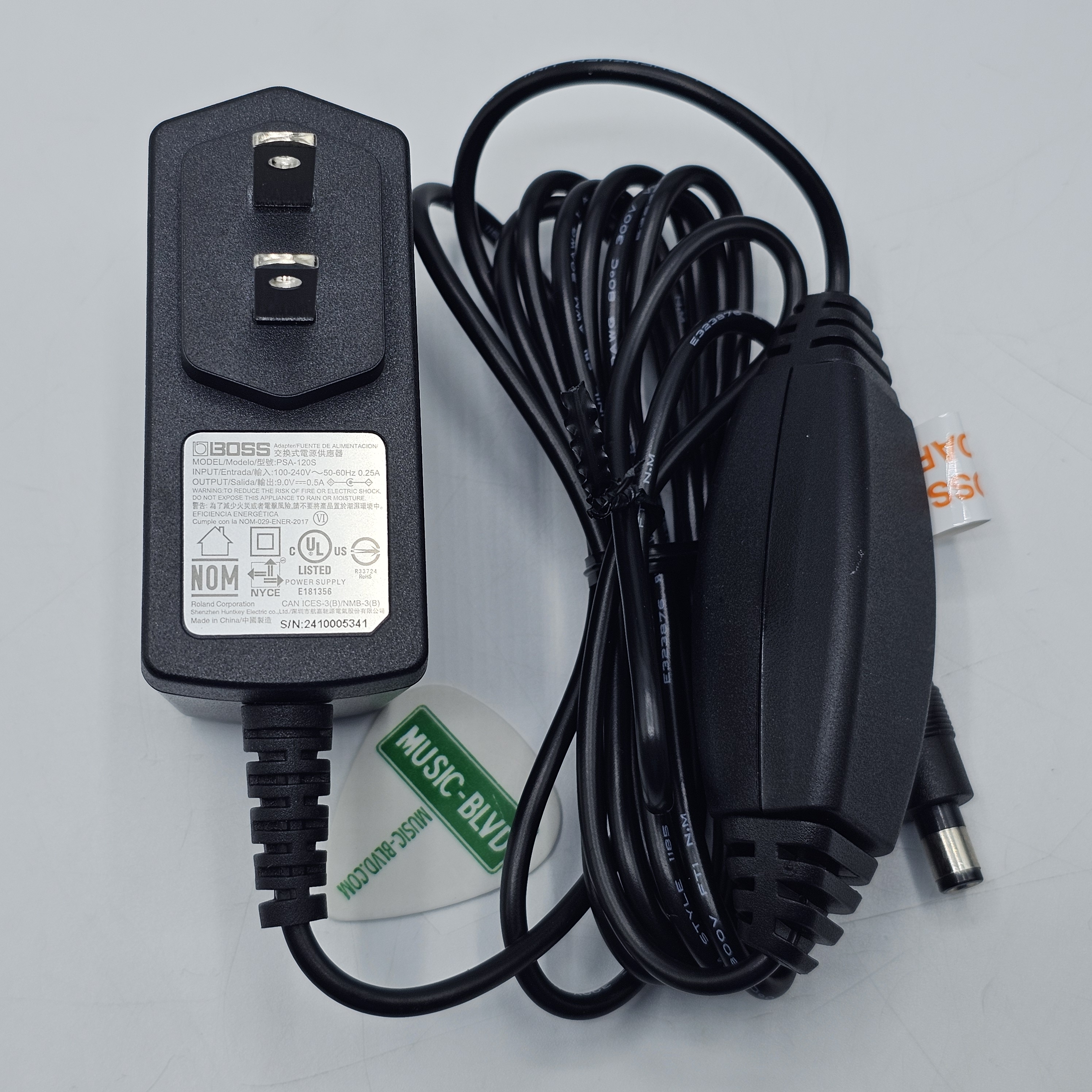

Accessories included: AC adaptor; leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” “Information”); Roland Cloud Activation Card
Options (sold separately): Footswitch: FS-5U; dual footswitch: FS-6, FS-7; expression: FV-500H, FV-500L, EV-30, Roland EV-5; TRS/MIDI cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
