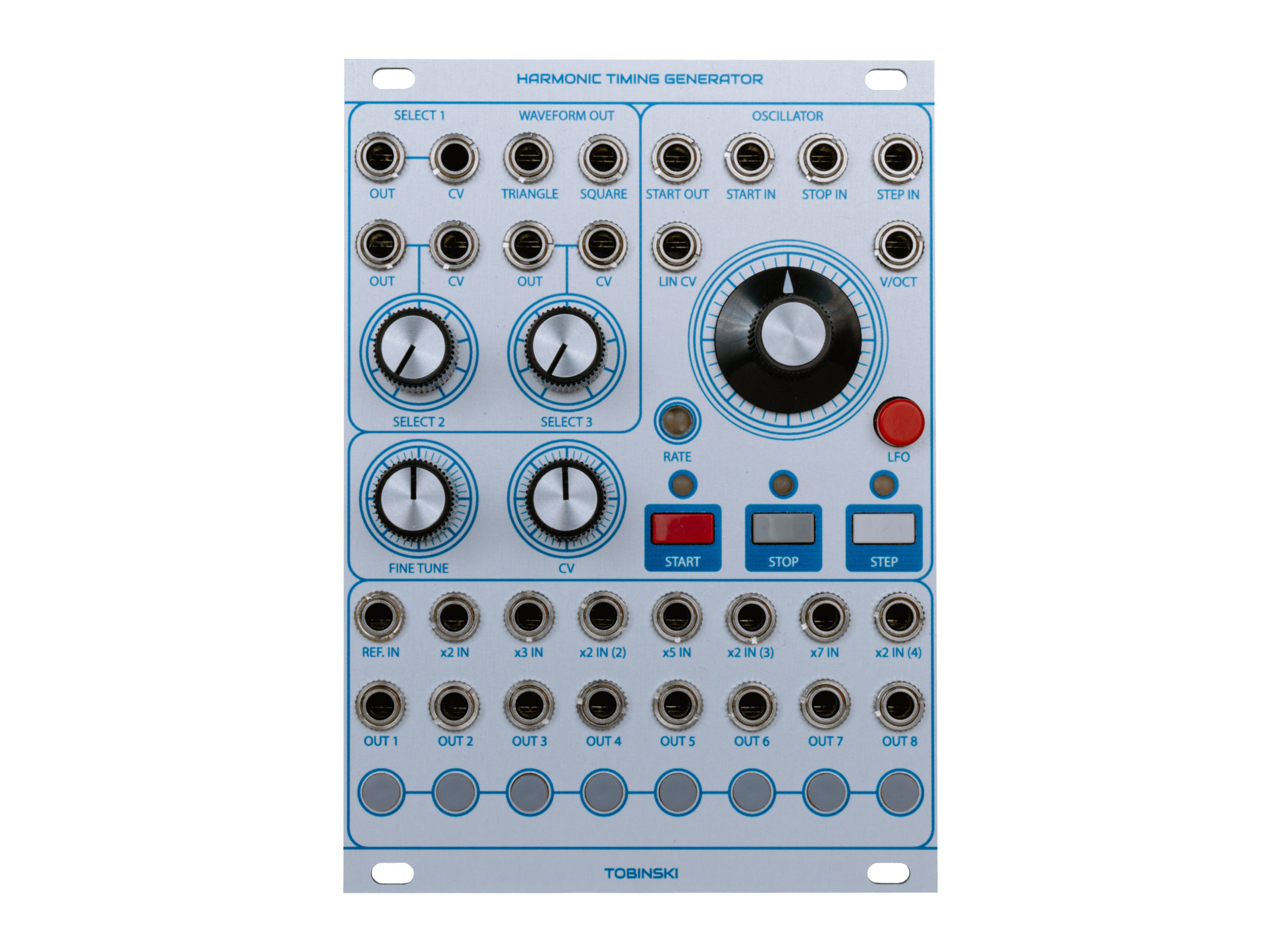

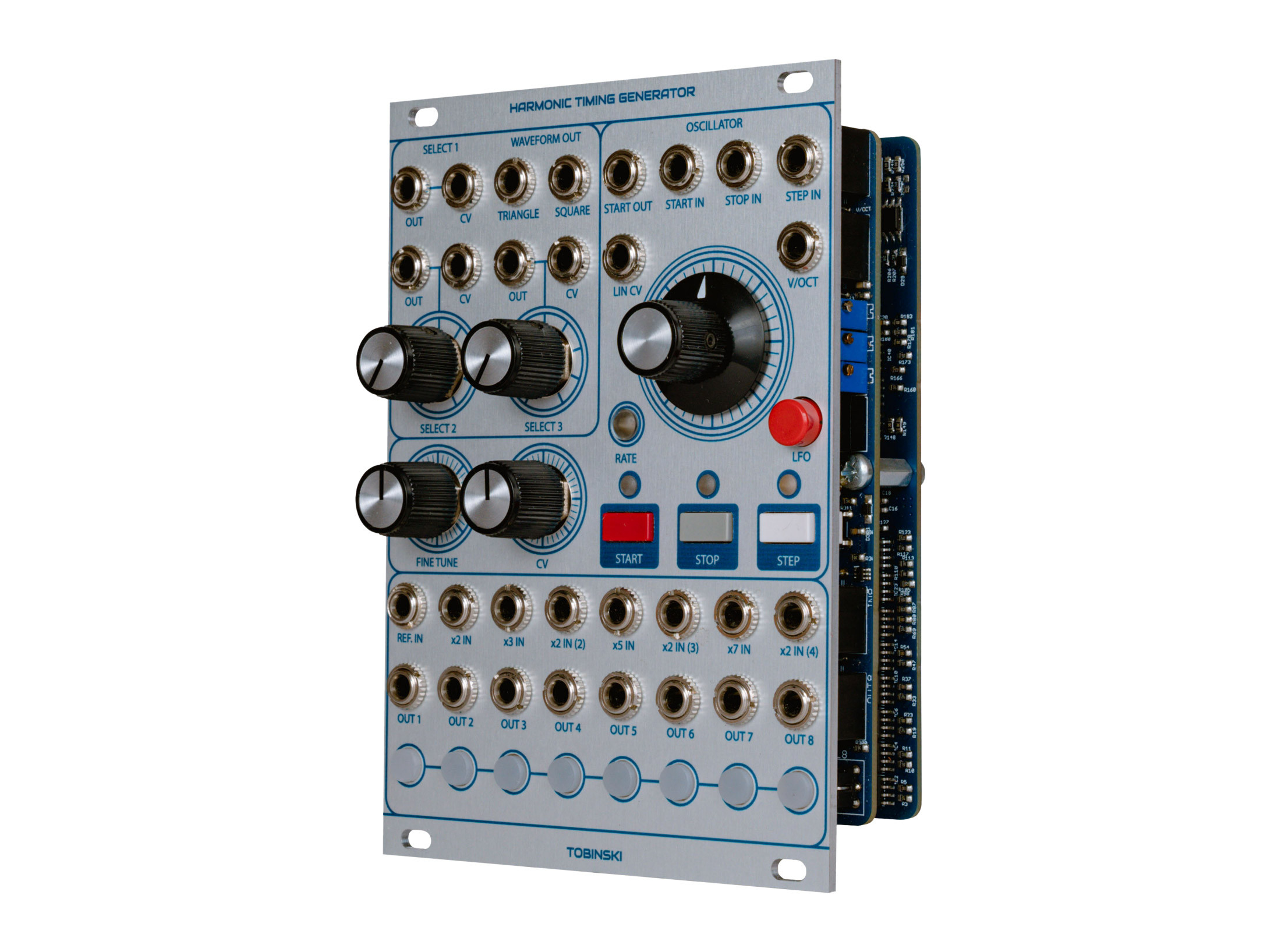

Tobinski Harmonic Timing Generator

Tobinski Harmonic Timing Generator

The Harmonic Timing Generator is a Eurorack module that functions as both a clock generator and a harmonic waveform processor. Not merely content with being a humble clock generator, this module gives you frequency multipliers (x1 to x8) that transform basic pulses into intricate, interlocking timing structures. LFO mode lets you slow things down and stretch time like so much taffy. Or, if you're feeling particularly bold, use it as a harmonic oscillator and hear the sawtooth waves sing their angular songs. Integrate it with the Interpolating Scanner, and suddenly, those jagged edges melt into sine waves, harmonics stacking upon harmonics, a cathedral of sound built in real-time. The Harmonic Timing Generator opens up rhythmic and harmonic possibilities perfect for the curious synthesist.

Harmonic Timing Generator Features

• Analog harmonic oscillator and timing generator
• Analog frequency multipliers for X1–X8
• 3 Frequency selectors
• LFO Mode for modulation and clocking
• Sawtooth outputs
• Internal connections to Interpolating Scanner inputs

• Eurorack module
• Width: 18hp
• Depth: 27mm
• Current draw: 235mA @ +12v, 176mA @ -12v, 30mA @ +5v
