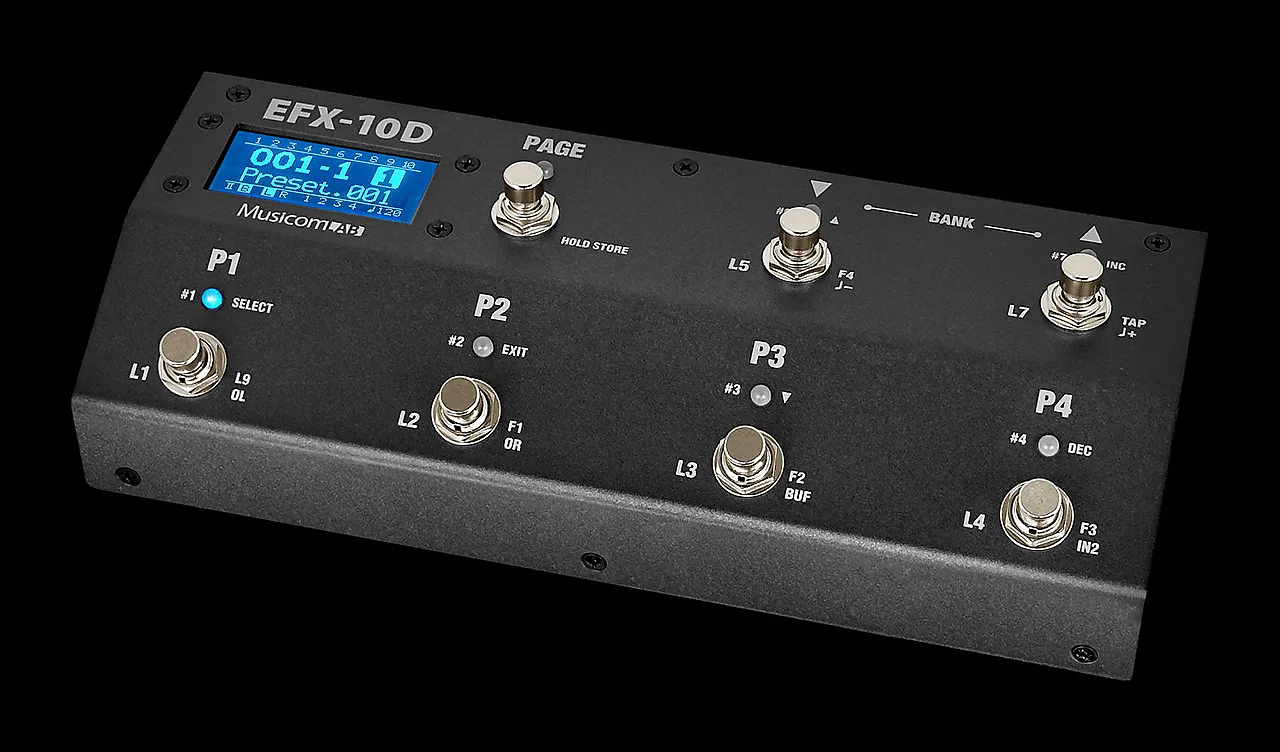

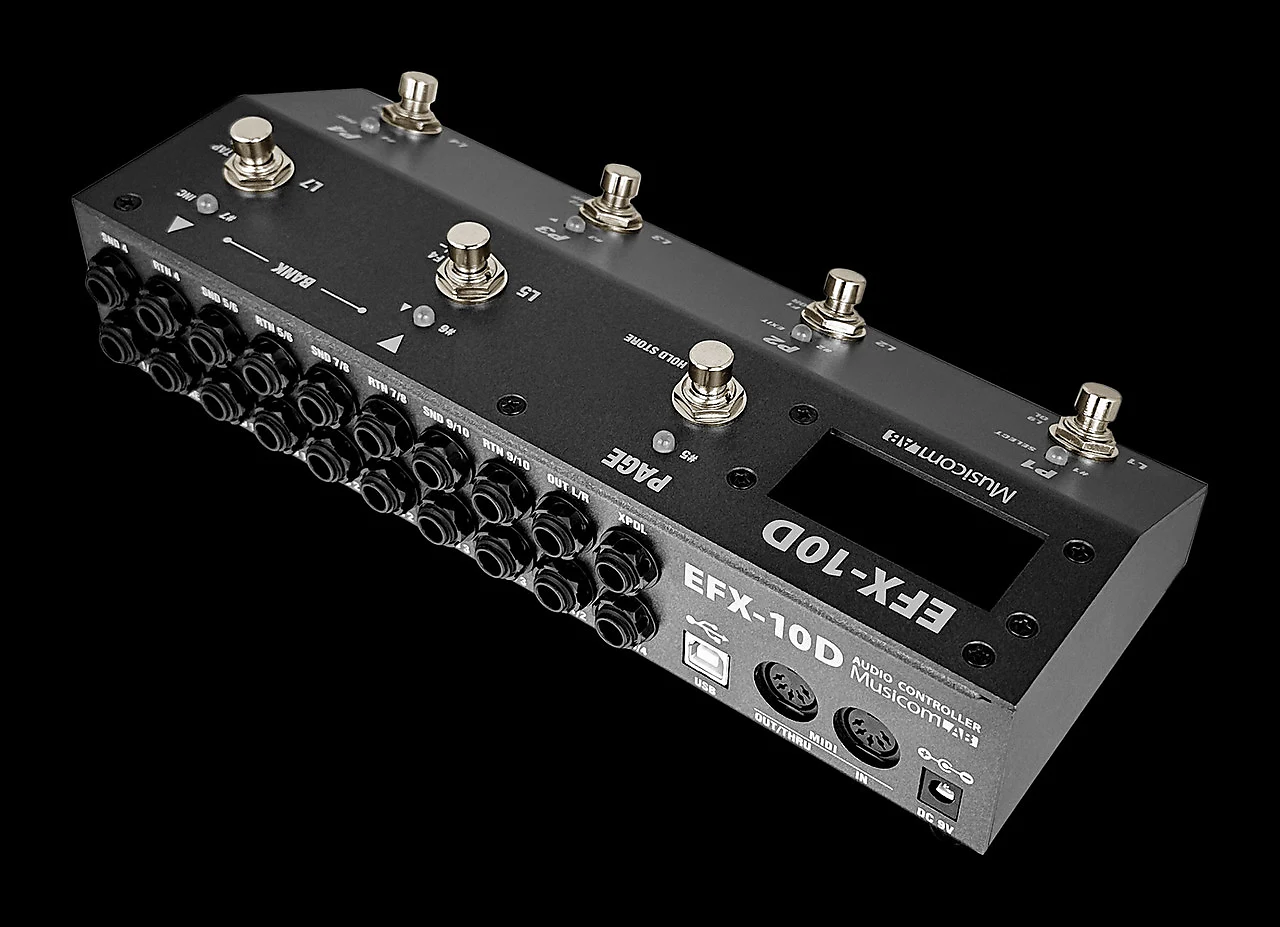

MusicomLAB EFX-10D Audio Controller

Presenting the all new MusicomLAB EFX-10D Audio Controller/MIDI Controller.  This compact switcher packs a powerhouse level of features into a compact format.

You can easily edit all of the presets and functions via their computer-based editor that is available for Windows or Mac, as well as update the firmware via the built-in USB port.

• 10 mono loops
• Programmable loop order each preset
• One of 2 inputs is selectable using TRS jack
•  Output L/R are capable using TRS jack
•  Loop5/6, Loop7/8 and Loop9/10 are capable using TRS jacks
•  Up to 2 loops can be assigned to Carry-over between presets
•  801 preset memory locations (200 banks of 4 presets, plus a Global Preset)
•  Create up to 800 songs
•  Organized the 800 songs in to 64 sets of 120 songs
•  4 function switches via 2 TRS jacks (Latched / Momentary / Tempo Sync)
•  Flexible switch setting
•  Click-Less functions
•  16 MIDI messages (PC, CC, Note or SysEx) each preset
•  8 MIDI messages (PC, CC, Note or SysEx) each switch
•  8 Audio actions each IA switch
•  MIDI Time Clock or Analog Tempo out for TAP-TEMPO
•  One expression pedal or 2 foot-switches (XPDL)
•  USB Connection to a PC or MAC
•  Graphic LCD for to show a lot of information
•  Easily copy presets, banks, songs and sets
•  Easily name presets, songs, sets, pages and switches
•  Heavy-duty footswitches

Powered by 9VDC(center negative) 250mA
Dimensions : 263(W) x 110(D) x 68(H) mm
10.4(W) x 4.3(D) x 2.7(H) inches
 Weight : 1,000 g / 2.2 lbs
