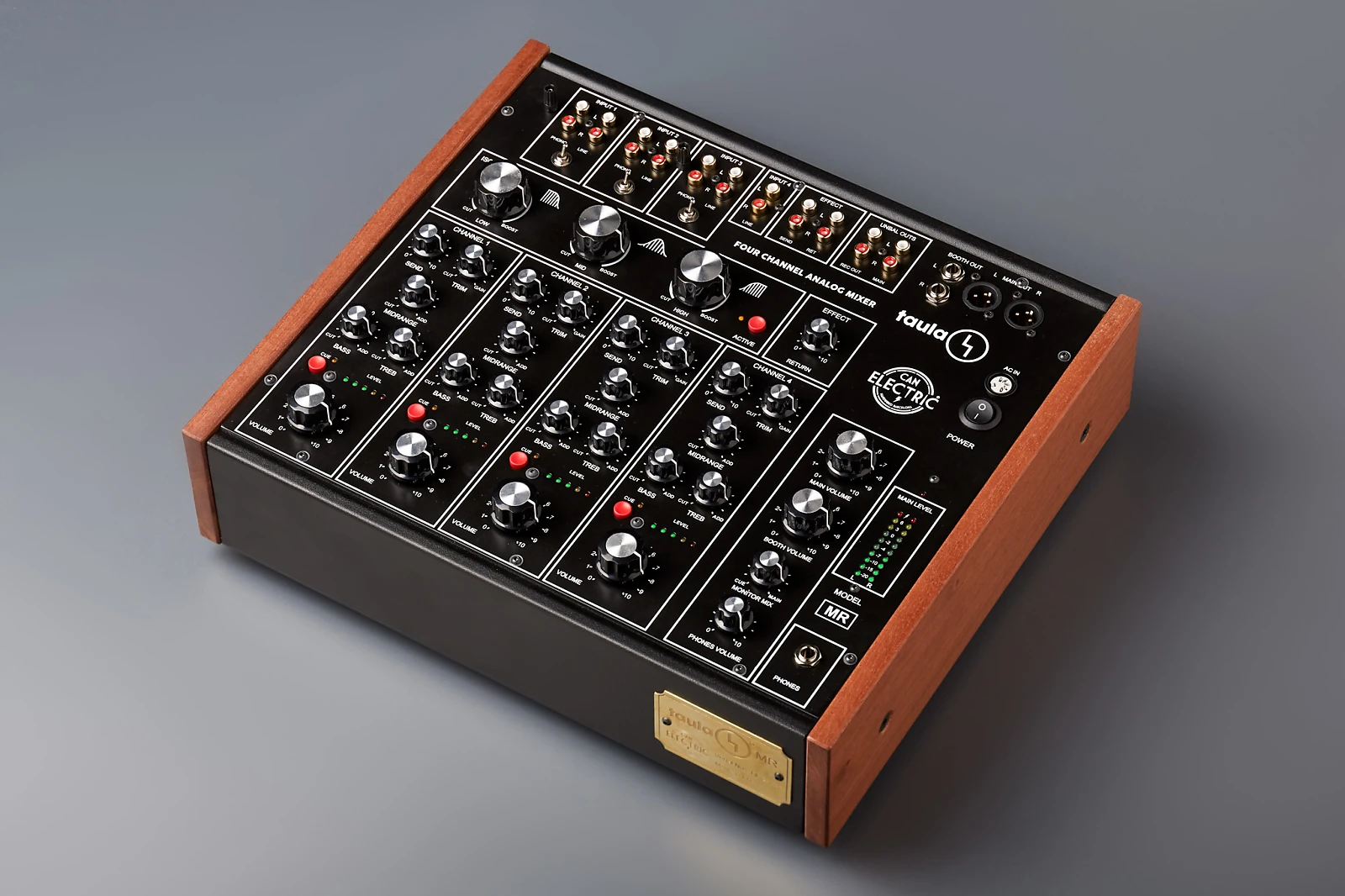

Can Electric Audio Rotary Mixer Taula 4 MR

Analogue hand-wired, high-quality, compact designed audio mixers.

With a vintage look, Can Electric Audio recovers the functionality and aesthetics of the classics from the club culture, by carefully crafting the electronics to get the most from any sound source, especially when using turntables.

Most manufacturing is done in-house, including PCB assembling, painting, silk screening, wiring, woodworking, etc.

The voltage and mains connectors of the power supply delivered with the mixer are adapted to the recipient country.

These mixers are custom hand-made. The average build time for a Taula 2 MR is around 25 working days + delivery.

You can choose from 13 vibrant colours.

-----------

Operational features
4 Stereo input Channels
Channels 1 to 3 with selectable – Phono /Line input
Channel 4 Line input only.

On every Channel:

Gain control:
+-18dB
Fx send:
Post fader.
EQ controls:
Assymetrical
Bass: -22dB+12dB
Mid: -22dB+12dB
Treble:-22dB+12dB
Cue:
Activation push switch.
Pre fader 5 led vumeter.
Volume:
Audio control via ALPS Blue Velvet Potentiometer.

Main mix ISOLATOR:
3 way 24dB/Octave.
Bass to Mid crossover freq: 300Hz
Mid to High crossover freq: 3Khz
Controls cut to infinity/boost to 12dB
Engage push switch.

Master controls:
Master volume, controls main mix output.
Booth volume, same as above controls booth output.
Cue/mix blends output to headphones, from cue to pre-master output mix.
Headphones volume, takes care of your most important tool, your ears
Fx Return Master volume.

Main connectors:
Channel inputs: RCA for phono and line on channels 1 to 3.
Fx In/Out: RCA
Direct pre Master volume recording outputs: RCA
Booth Monitor Output: 2 balanced 6,3mm Jack.
Main Output: 2 balanced XLR
Headphones output: 6,3mm Jack

Vumeter:
10 led per channel stereo post master metering.

Power Supply:
Internal linear supply.
External 16VAC 2A wall wart.

Additional Information:
Weight: 5.2 kg
Dimensions: 40 x 34,5 x 10 cm
Wood sides
