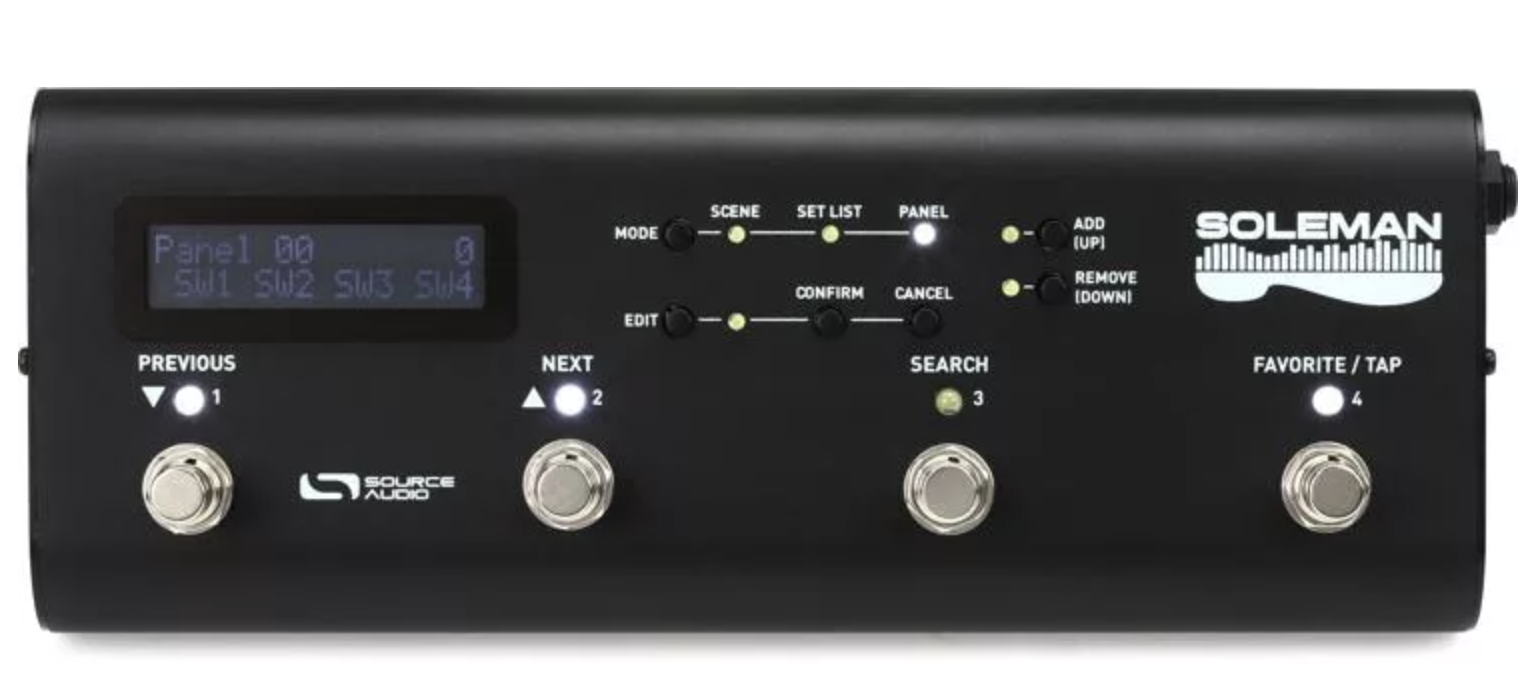

Soleman MIDI Controller Pedal

Create a fully integrated effects rig

The Soleman makes creating a fully integrated effects rig a piece of cake. Two MIDI Out ports accommodate up to two external hardware MIDI devices. A built-in USB-MIDI interface enables you to take direct control of MIDI-compatible software, such as DAWs, virtual instruments, or plug-ins. Connect two additional footswitches to the Soleman’s Expansion port to streamline navigation or connect a passive expression pedal to its Expression input and convert it to MIDI Continuous Controller messages. At Sweetwater, we appreciate the flexibility offered by the Soleman.

Soleman User Modes:

• Scene Mode — Allows you to scroll through all of the Soleman’s 128 Scenes, in order, with the onboard foot switches.
• List Mode — Enables you to arrange Scenes in any order and step through them in sequence. The Soleman stores up to 64 Lists, each containing up to 90 scenes.
• Panel Mode — Lets you store up to 64 “Panels.” Within each panel, you can assign specific functions to each of the four footswitches like Program Change, Continuous Controller, and Note On/Off messages. You can also assign multiple commands to a single footswitch with macro messages.

Source Audio Soleman Features:

• Versatile, highly configurable MIDI controller pedal

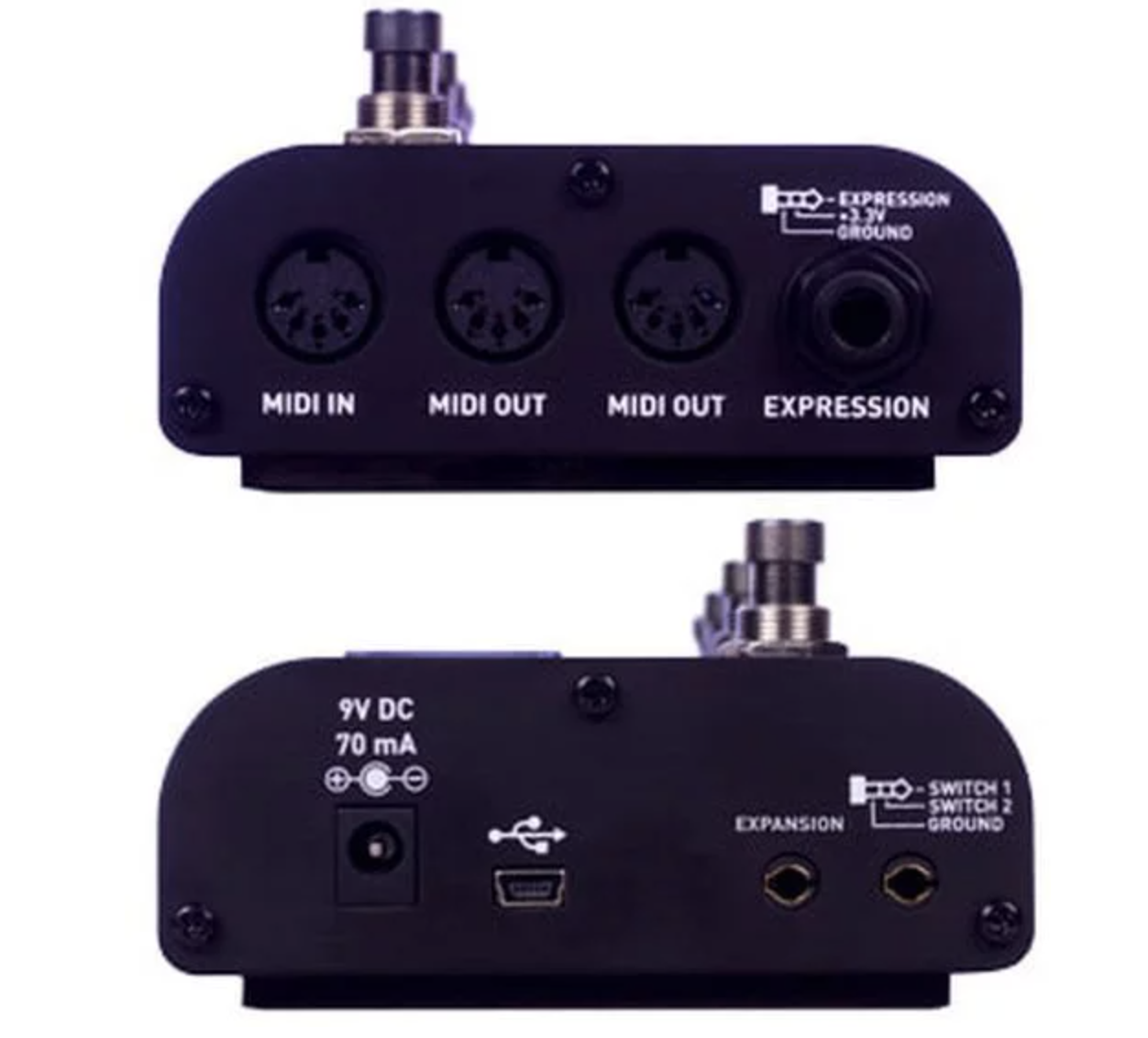

• 2 hardware MIDI outputs make it easy to control multiple standalone devices
• Built-in USB-MIDI interface enables you to take direct control of MIDI-compatible software, such as DAWs, virtual instruments, or plug-ins
• 4 footswitches for effortless scrolling through scenes, launching individual MIDI messages, stepping through setlists, or triggering MIDI macros
• Expansion port accepts 2 additional footswitches to streamline navigation
• Expression input accommodates an expression pedal for generating MIDI continuous controller messages
• Tap Tempo switch creates on-the-fly MIDI clock messages that can be simultaneously distributed to all connected pedals
• 3 user modes offer flexible operation
• Easy customization via Mac or PC and Source Audio’s USB Editor Software
• High-contrast LCD screen for displaying scenes, setlists, MIDI configurations, and more
• Durable anodized aluminum housing

Tech Specs

• Type:MIDI Foot controller
• Presets:128 Scenes, 64 Lists
• Pedal Inputs:1 x 1/8" (external switching), 1 x 1/4" (expression)
• MIDI I/O:In, 2 x Out, USB
• USB:1 x Mini-B
• Other I/O:1 x 1/8" (future feature)
• Software:Soleman Editor (Windows, Mac)
• Power Source:9V DC power supply (sold separately) / USB bus powered (screen may dim)
• Height:2.75"
• Width:10.5"
• Depth:3.75"
• Weight:2.2 lbs.
• Manufacturer Part Number:SA165
