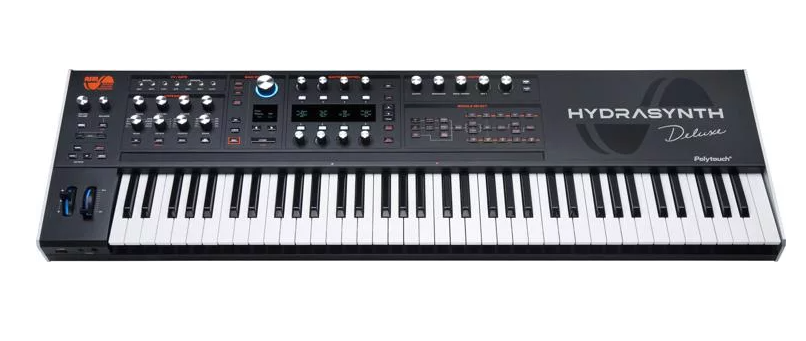

ASM Hydrasynth Deluxe 73-key Polyphonic Wave Morphing Synthesizer

ASM Hydrasynth Deluxe 73-key Synthesizer Features:

• 73-note virtual analog synthesizer with polyphonic aftertouch
• Combines multiple synthesis methods like wavetables, linear FM, WavePWM, subtractive, and more
• 16-voice polyphony, with 3 oscillators per voice and 4 Mutator waveshapers total
• Layer or split two 8-voice patches in Multi mode; crossfade between patches with balance control
• 7 types of Mutator waveshapers: FM-Lin, WaveStack, PW-Orig, PW-Squeeze, PW-ASM, Harmonic Sweep, and Hard Sync
• WaveScan oscillators offer a total of 219 waveforms
• Dual filters: 1 multimode (11 types) and 1 variable LPF-BPF-HPF, with series/parallel routing options
• 5 envelope generators (ADSR) per voice with delay, hold, and looping abilities
• Envelopes can be locked to BPM (MIDI Clock) for tempo-synced modulation
• 5 LFOs per voice, with 11 waveforms: Sine, Triangle, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, and Step
• Powerful arpeggiator with 8 modes, including chord and phrase modes

Tech Specs

• Type:Keyboard Synthesizer
• Sound Engine:Dual Wavetable Synthesis Engines
• Analog/Digital:Digital
• Number of Keys:73
• Type of Keys:Semi-weighted
• Aftertouch:Polyphonic Aftertouch
• Velocity Sensitive:Yes
• Other Controllers:Pitchbend, Mod wheel, 4-octave Ribbon Controller
• Polyphony:16 Notes
• Number of Presets:1024 Factory Patches, 640 Factory Multi-mode Patches
• Oscillators:2 x WaveScan Oscillators, 1 x Fixed Wave Oscillator, 1 x Noise Generator
• Waveforms:219 x Waveforms, 4 x Wave Mutators
• LFO:5 x LFO (sine, triangle, saw up/down, square, pulse 27%, pulse 13%, S&H, noise, random, step)
• Filter:Multimode Filter, 2-mode Filter (lowpass/bandpass/highpass, lowpass/notch/highpass)
• Envelope Generator:5 x ADSR ; Delay, Hold, Looping
• Effects Types:4 x Reverb, 6 x Delay, 5 x Modulation, Distortion, EQ, Compressor, Lo-Fi
• Arpeggiator:8 x Modes with Direction, Octave, Chord, Phrase
• Audio Outputs:2 x 1/4" Main/Upper (L/mono, R), 2 x 1/4" Lower (L, R)
• Headphones:1 x 1/4", 1 x 1/8"
• USB:1 x Type B
• MIDI I/O:In/Out/Thru/USB
• Pedal Inputs:1 x 1/4" (expression), 1 x 1/4" (sustain)
• Other I/O:2 x Mod In, 2 x Mod Out, Pitch Out, Gate Out, Clock Out
• Features:32-slot Modulation Matrix
• Power Source:12V DC power supply (included)
• Height:4.7"
• Width:44.5"
• Depth:14.1"
• Weight:29.8 lbs.
• Manufacturer Part Number:HSLX
