Power Up Your Eurorack!

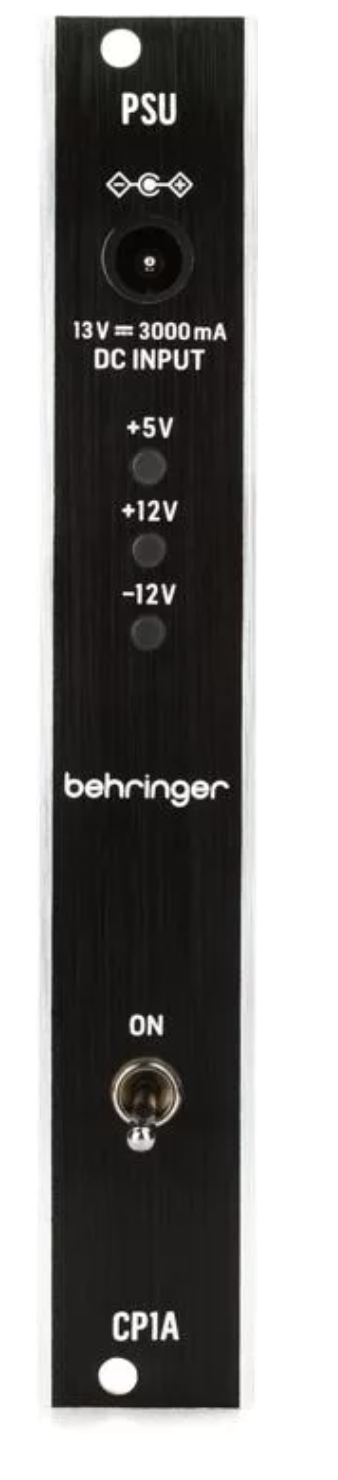

The Behringer CP1A power supply module delivers clean, ultra-low noise power to your Eurorack system. This 4HP power supply slots easily into your Eurorack case or rack and distributes 35W of DC at +5 VDC, -12VDC, and +12VDC — enough for approximately one 84HP row of modules. The CP1A includes a power adapter and two 16-pin ribbon connectors, and it has a front-panel DC input and on/off toggle switch. When using the Behringer CP1A, make sure to confirm the total power requirements of connected modules. Need help? Reach out to your Sweetwater Sales Engineer. They’re happy to assist you in setting up your Eurorack system.
Behringer CP1A Power Supply Module for Eurorack System Features:
- 35-watt DC power distribution module in a 4HP Eurorack module
- Provides enough power distribution for roughly 84HP worth of modules
- LED indicator lights for each power rail
- Distributes +12V at 1A, -12V at 1A, and +5V at 0.5A
- Includes power adapter and two 16-pin ribbon connectors
Tech Specs
- Power Supply Module
- 4HP
- ±12V/1000mA, +5V/500mA
- External Power adapter (included), 2 x 16-pin ribbon connectors (included)
