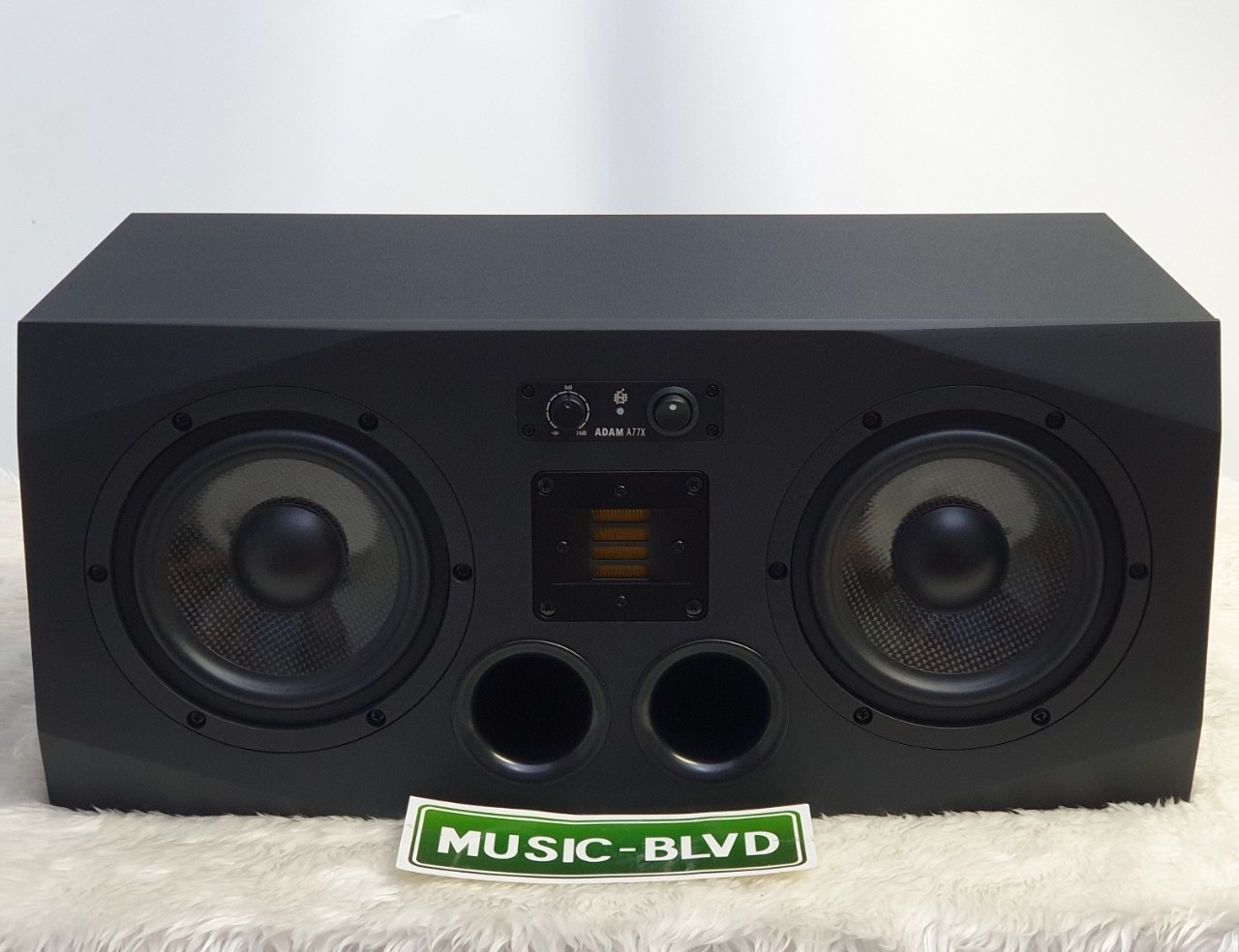

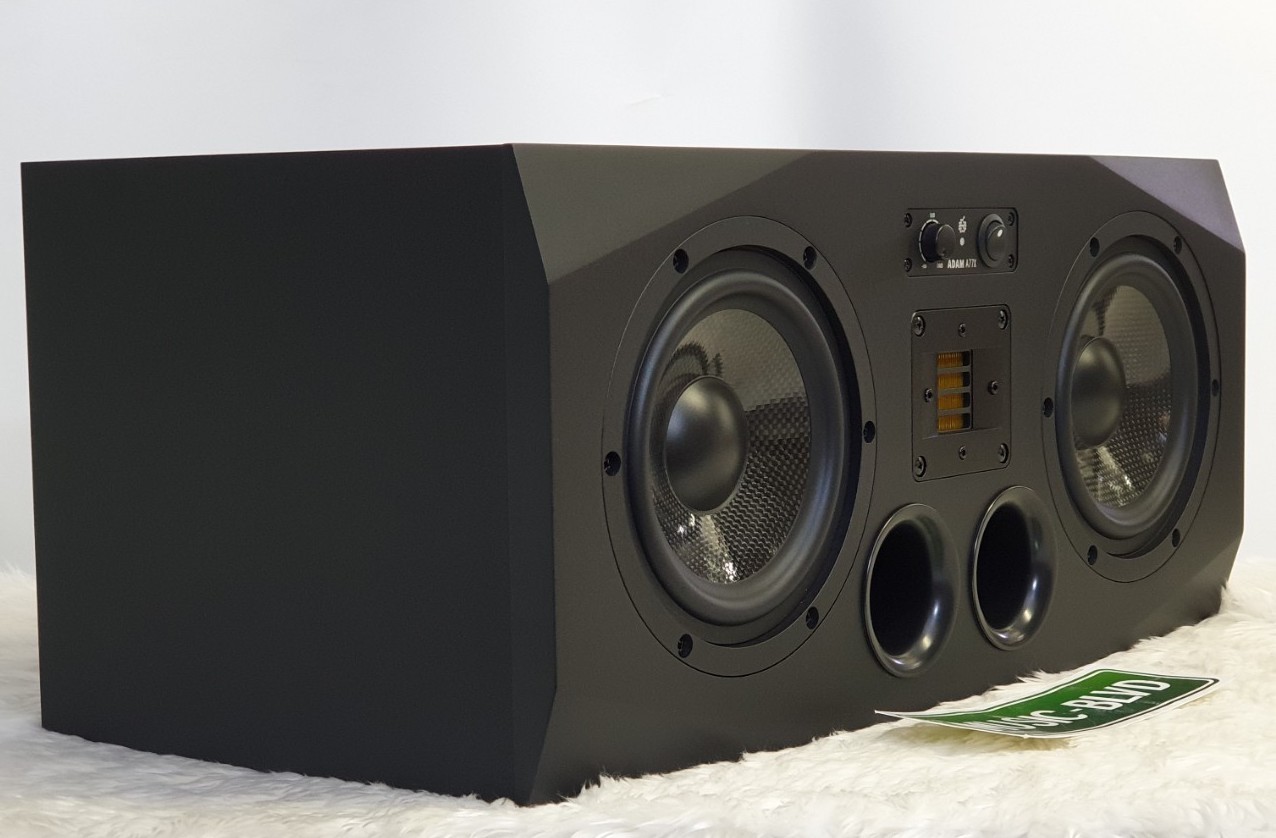

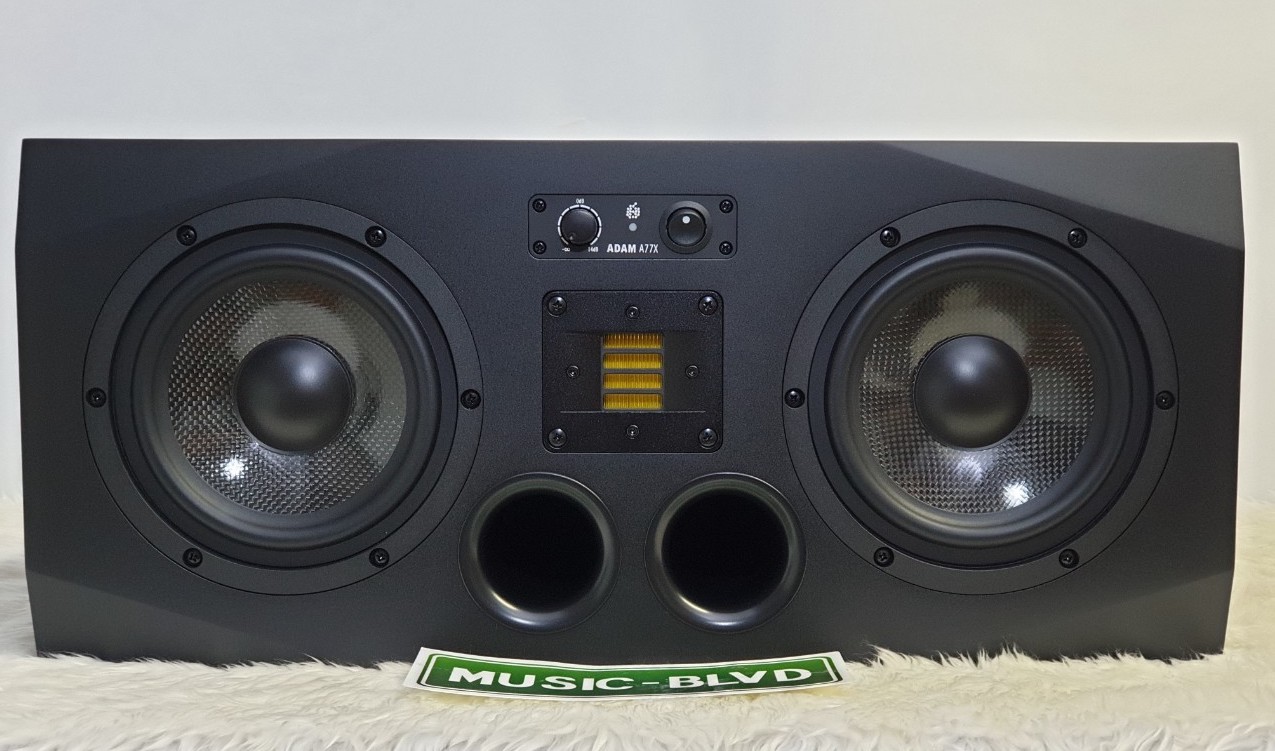

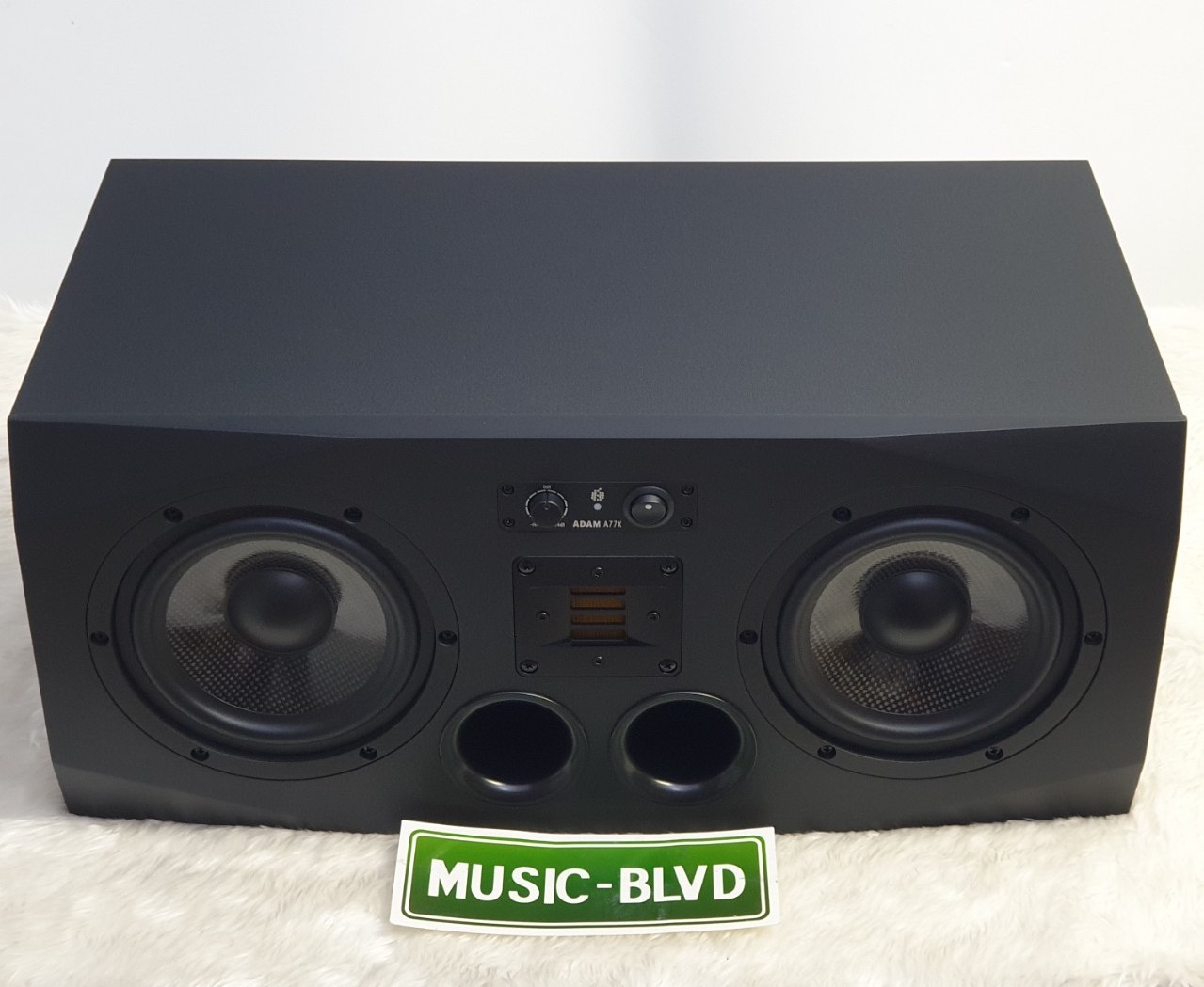

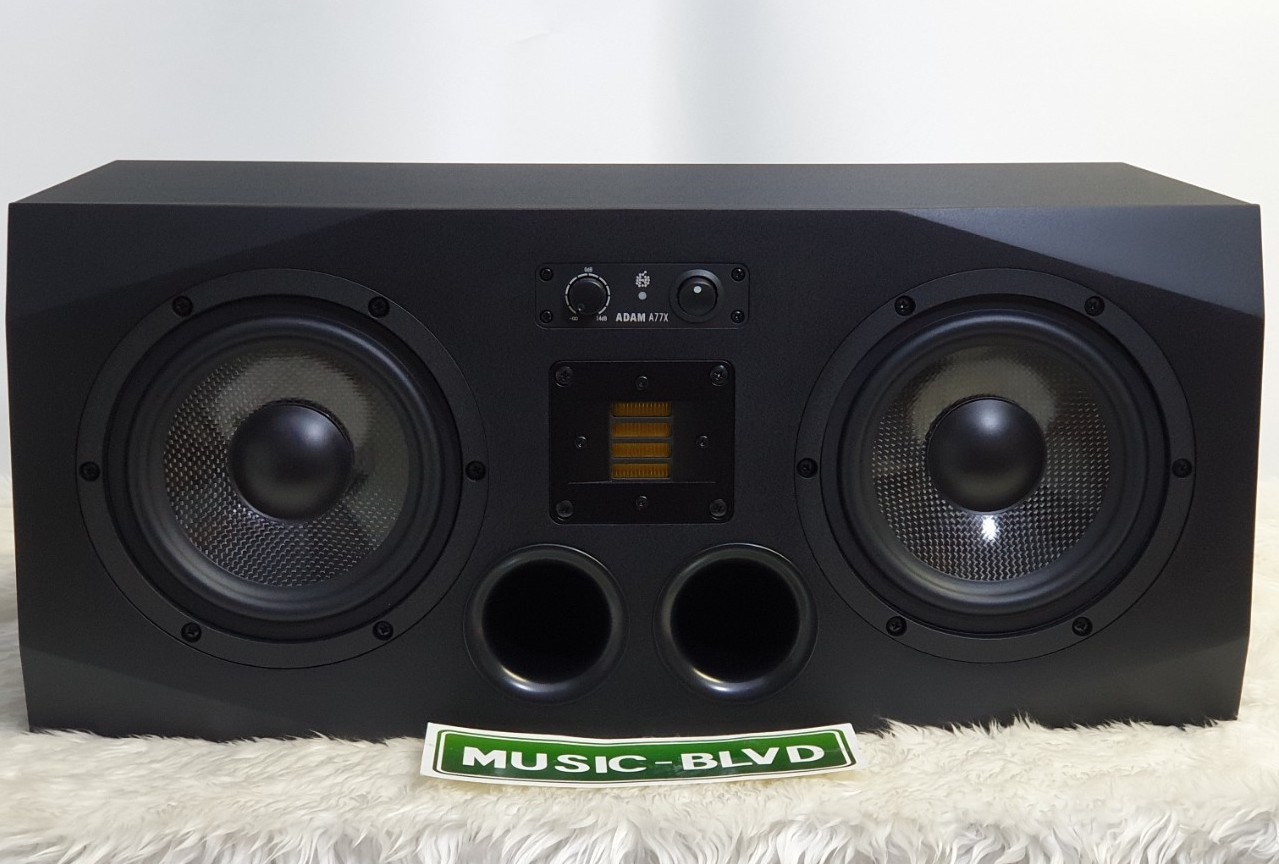

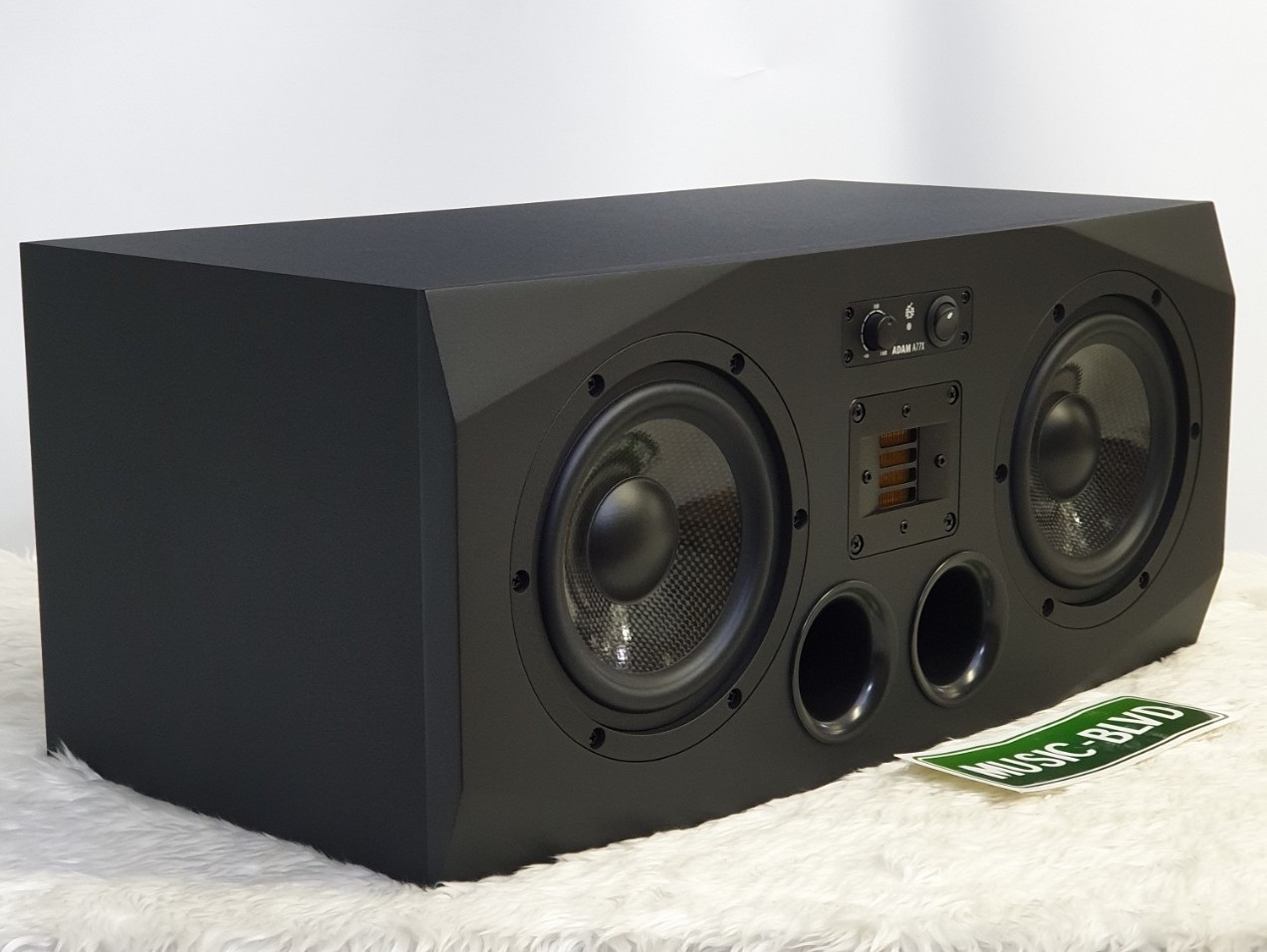

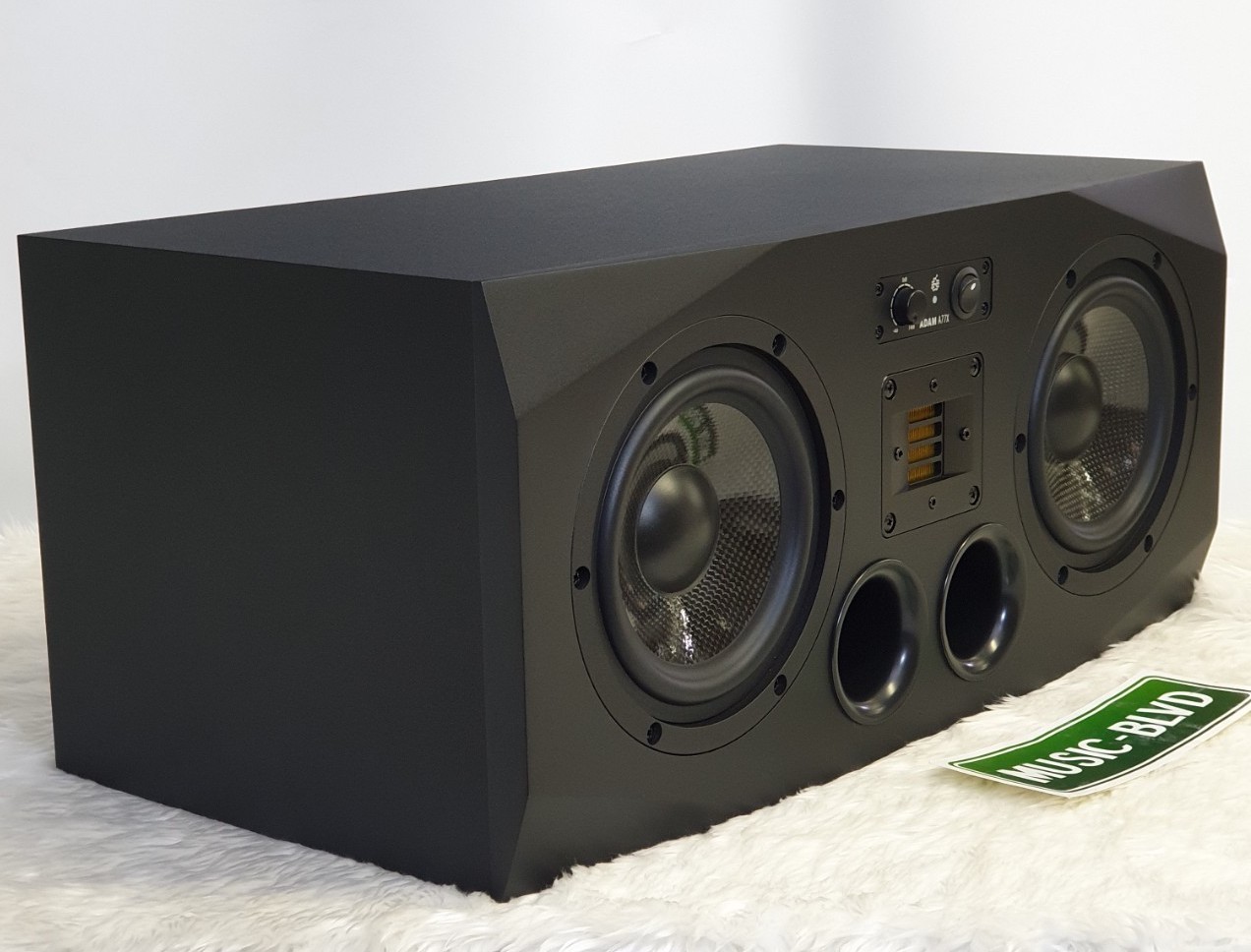

ADAM Audio A77X Dual 7 3-way Powered Studio Monitor (Each)

Two 7" carbon/Rohacell/glass fiber bass/midrange drivers
The drivers in ADAM Audio studio monitors benefit from years of in-house research and development and take advantage of the latest advances in technology and materials science. The two carbon/Rohacell/glass fiber bass/midrange drivers in the A77X are engineered to deliver optimized low-frequency reproduction with extended dynamic range and freedom from coloration. They incorporate a rigid, yet low-mass honeycomb driver cone; a highly efficient magnet assembly and precisely aligned voice coil; and an optimized driver chassis/basket design. The bass drivers are integrated into a unique crossover network where both woofers are active up to 400Hz, where one of them rolls off and the other carries the midrange until it crosses over to the tweeter at 3kHz, thus preventing phase cancellation in the critical midrange. Because of this novel arrangement, there are mirror-imaged Left and Right versions of the A77X (A77XA and A77XB; available separately). The A77X's 7" woofers extend response down to 38Hz, making the speaker a suitable choice for nearfield and midfield monitoring in small-to-midsized control rooms.






The X-ART folded-ribbon tweeter
Instead of producing sound with a piston-like diaphragm like most loudspeakers, ADAM Audio's X-ART folded-ribbon tweeter uses a pleated diaphragm capable of moving air four times faster than the folds themselves are moving. Handcrafted to the tightest tolerances, the X-ART tweeter delivers ultra-low distortion and breathtaking highs up to 50kHz, enriching the soundfield with stunning detail and faithfully conveying every nuance of the source material so you can work over long periods without listening fatigue. Being handcrafted and meticulously tested in the ADAM’s Berlin laboratories, the X-ART high-frequency driver is a rare exception in these days of automated mass production.




ADAM Audio: elevating the state of the art
From its 1999 launch in Berlin, ADAM Audio has built a solid reputation among the pro audio cognoscente. Sweetwater knows that a superior speaker system has superior components, and this is one area where the company has a distinct edge. With years of R&D behind each proprietary driver, ADAM Audio's custom driver technology expresses itself in breakthroughs such as their X-ART (eXtended Accelerating Ribbon Technology) tweeter, which is based on a groundbreaking 1960s invention, the Heil Air Motion Transformer — and in fact, was the main impetus for the formation of ADAM Audio. The X-ART tweeter became the key to ADAM's signature transparent, high-definition sound; and the core development of ADAM’s proprietary designs going forward.






Embracing, exploiting, and working with modern materials has allowed ADAM Audio to formulate loudspeaker components that continually elevate the state of the art in studio monitor design. Materials such as rare-earth magnets and high-strength diaphragm foils have increased reliability, enhanced performance, and made possible new driver geometry. As compared with conventional driver technology, Adam drivers deliver optimized radiation characteristics, lower distortion, and higher efficiency. Along with installations in a growing number of top studios, ADAM Audio's monitor range has garnered rave reviews from audio experts and recording engineers worldwide. If you're considering an upgrade to world-class monitoring, you'll be in good company with ADAM Audio monitors.



ADAM Audio A77XA Active Near/Midfield Studio Monitor (Left) Features:

Horizontal 3-way system with 2 x 7" carbon/Rohacell/glass fiber bass/midrange drivers and X-ART tweeter
X-ART tweeter, handmade in Berlin and manufactured to the tightest tolerances
Large bass reflex ports, volume control, and power switch on the front baffle
Highly efficient 250W PWM tri-amplification
Linear frequency response of 38Hz–50kHz
Maximum peak sound pressure per pair at 1m ≥ 122dB

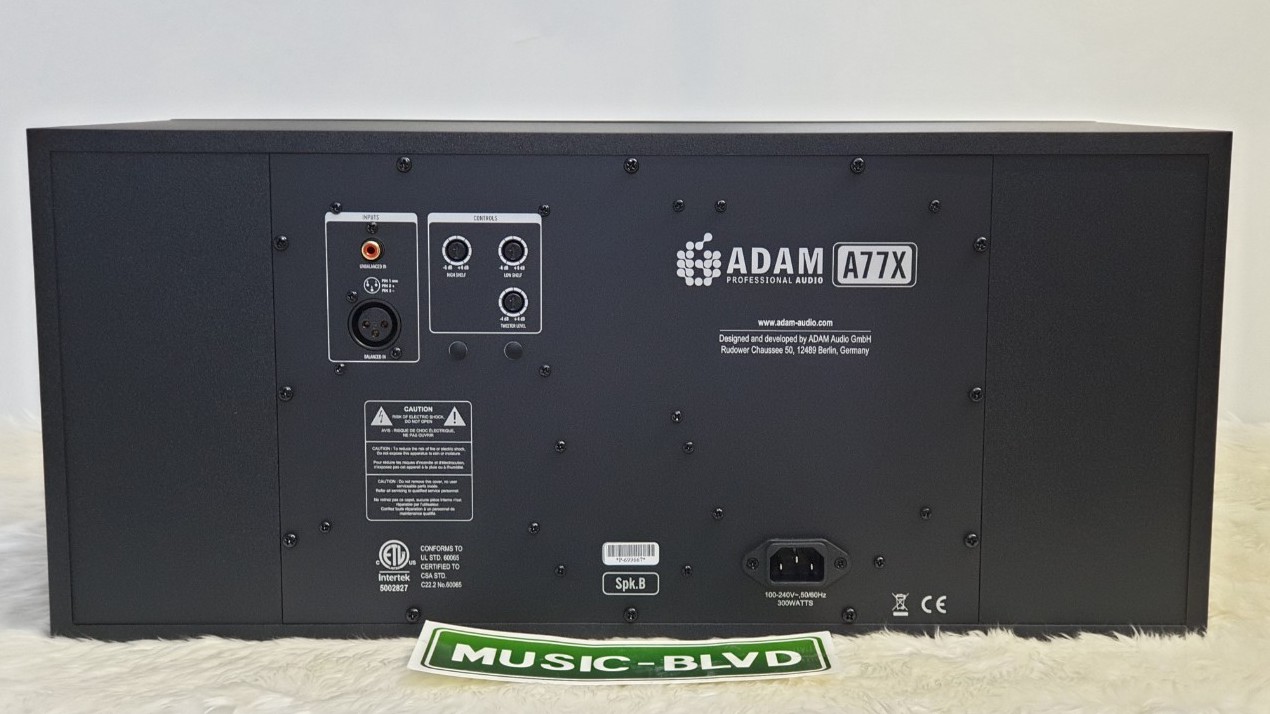

Analog XLR and RCA inputs
2-year warranty; optional extension to 3 years with product registration
Sold individually

Tech Specs

Powered:Yes
Power Configuration:Tri-amped
LF Driver Size:2 x 7" woofer
LF Driver Type:Carbon, Rohacell, Glass Fiber
HF Driver Size:2" X-ART tweeter
LF Driver Power Amp:2 x 100W (RMS)
HF Driver Power Amp:50W (RMS)
Frequency Response:38Hz-50kHz
Crossover Frequency:400Hz, 3000Hz
Maximum Peak SPL:≥122dB SPL @ 1m
Input Types:1 x XLR, 1 x RCA
Enclosure Type:Ported
Height:9.5"
Width:21"
Depth:11"
Weight:28.2 lbs.
