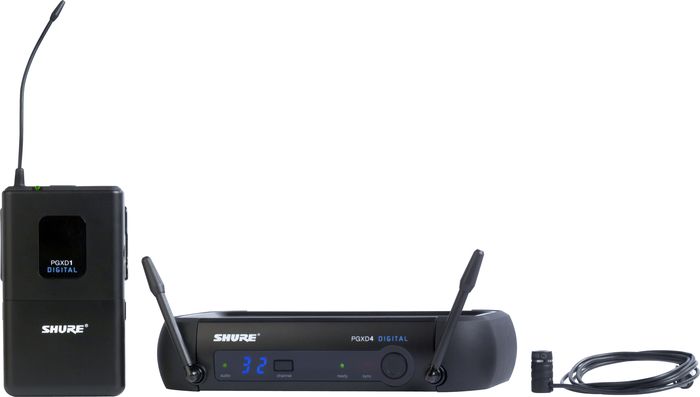

Shure PGXD14/85 Digital Wireless System with WL185 Lavalier Mic

A condenser lavalier mic with bodypack transmitter and receiver for 200' of wireless freedom.






This PGXD 14/85 Digital Wireless System includes a PGXD1 Bodypack Transmitter with WL185 Lavalier Microphone and a PGXD4 Wireless Receiver. The PGX Digital Vocal Wireless System adds the clarity of 24-bit digital audio to the renowned PGX line of Shure wireless products. Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state of the art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.

The rugged PGXD1 bodypack transmitter easily clips onto a belt or guitar strap, and provides you with a 20Hz - 20kHz frequency range, up to 10 hours of continuous use on 2 standard AA batteries (not included), and 200' of wireless freedom.

The PGDX4 receiver offers 24-bit/48kHz accurate sound, offers technology for incredibly accurate sound, auto frequency selection, and greater reliability thanks to its true digital diversity.

The WL185 is recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise. Use of the included windscreen is highly recommended. It has a pickup angle of 130 degrees.


Shure PGXD14/85 Digital Wireless System with WL185 Lavalier Mic Features:


PGXD1 Bodypack Transmitter with WL185 Lavalier Microphone
Cardioid condenser lavalier microphone for general purpose sound reinforcement
Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
Power, mute, and battery status LED
Up to 10 hours of continuous use from 2 AA batteries
200" (60m) operating range
Rugged construction for reliable performance show after show
Low-profile bodypack, easily clips onto belts or clothing

PGXD4 Wireless Receiver
24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity delivers rock-solid wireless signal reliability
Up to 5 systems can be used at once
1⁄4" and XLR audio outputs
Included padded carrying case for portability and protection

Applications
Vocalists
Guitarists/bassists
Brass/Woodwinds
Aerobics
Houses of Worship
Small Theaters
Schools/Lecture Halls
Karaoke

Includes
PGXD1 Bodypack Transmitter
PGXD4 Wireless Receiver
WL185 Lavalier Microphone
Tie clip
Windscreen
Padded carrying case
2 AA batteries
Power supply


Move around without losing the quality of sound. Order this digital wireless system today. Order now!



Shure PGXD14/85 Digital Wireless System with WL185 Lavalier Mic Specifications:



PGXD1 transmitter
Audio input level: +10 dBV maximum, at minimum gain setting -16 dBV maximum, at maximum gain
Gain adjustment range: 26dB
Input impedance: 1MΩ
RF Output Level: 10 mW maximum (dependent on applicable country regulations)
Dimensions (HxWxD): 108mm x 64mm x 19mm (4.25"x 2.50" x 0.75")
Weight: 128g (4.5oz.) without batteries
Housing: Molded polycarbonate case
Power requirements:
Battery Life: Up to 10 hours

PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. ±38kHz deviation, 1kHz tone): XLR connector (into 3000Ω load): -2.5dBV 1/4" connector (into 10000Ω load): +10 dBV
Impedance:
XLR: 50Ω
1/4": 50Ω
Sensitivity: -102 dBm @ 10-5 BER
Image rejection: > 70dB, typical
XLR output:
Impedance balanced Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio LED:
Red: 2dB below clip
Amber: 12dB below clip
Green: 50dB below clip
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments: XLR: 1 = ground, 2 = hot, 3 = cold 6.35mm (1/4") TRS: Tip = audio, Ring = no audio, Sleeve = ground

WL185 Lavalier Microphone
Type: Condenser (electret bias)
Frequency Response: 50 to 17,000Hz
Output Impedance: 1800Ω
Sensitivity (1 Pa = 94 dB SPL): -45.5 dBV/Pa
Maximum Sound Pressure Level: 130.5 dB SPL
Output Noise (A-weighted): WL185: 28.0 dB SPL
Dynamic Range: 102.5dB
Polarity: Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1
Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter
