Shure PGXD14/PG30 Digital Wireless System with PG30 Headset Mic

An affordable wireless system which provides you with high-quality hand's free performance.

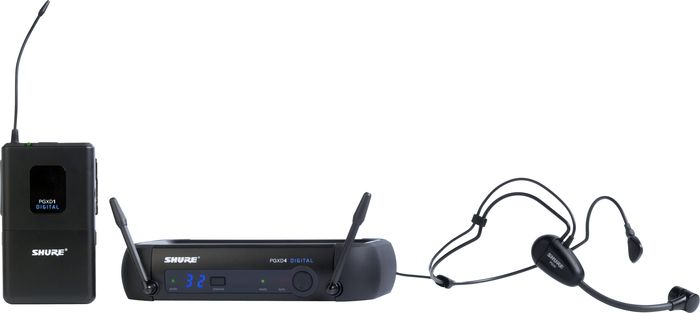

The PGXD14/PG30 Digital Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the PG30 Headset Mic, PGXD1 bodypack transmitter, and a PGXD4 receiver.

The PC30 is an electret condenser microphone for headworn use with a wireless bodypack transmitter. It has a comfortable wireframe for secure fit and has a smooth, natural frequency response comparable to handheld microphones to give you excellent sound in a convenient, hands-free solution.

The rugged PGXD1 bodypack transmitter easily clips onto a belt or guitar strap, and provides you with a 20Hz - 20kHz frequency range, up to 10 hours of continuous use on 2 standard AA batteries (not included), and 200' of wireless freedom.

The PGXD4 receiver offers 24-bit/48kHz accurate sound, offers technology for incredibly accurate sound, auto frequency selection, and greater reliability thanks to its true digital diversity.


Shure PGXD14/PG30 Digital Wireless System with PG30 Headset Mic Features:


PGXD1 transmitter with WA302 Instrument Cable
Rugged, compact bodypack with belt clip and instrument cable
20Hz – 20kHz frequency range captures every nuance of your tone
Power, mute, and battery status LED
Up to 10 hours of continuous use from 2 AA batteries
200' (60m) operating range
26dB of continuously adjustable gain to match variable input levels

PGXD4 Wireless Receiver
24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity delivers rock-solid wireless signal reliability
Up to 5 systems can be used at once
1⁄4" and XLR audio outputs
Included padded carrying case for portability and protection

PG30
Comfortable wireframe for secure fit
Smooth, natural frequency response comparable to quality handheld microphones
Reliable at temperature and humidity extremes


Order this wireless headset mic system today and free up your hands today.



Shure PGXD14/PG30 Digital Wireless System with PG30 Headset Mic Specifications:



PGXD1 transmitter/strong>

Audio input level: +10 dBV maximum, at minimum gain setting -16 dBV maximum, at maximum gain
Gain adjustment range: 26dB
Input impedance: 1MΩ
RF Output Level: 10 mW maximum (dependent on applicable country regulations)
Dimensions (HxWxD): 108mm x 64mm x 19mm (4.25" x 2.50" x 0.75")
Weight: 128g (4.5oz.) without batteries
Housing: Molded polycarbonate case
Power requirements:
Battery Life: Up to 10 hours

PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. ±38kHz deviation, 1kHz tone): XLR connector (into 3000Ω load): -2.5dBV 1/4" connector (into 10000Ω load): +10 dBV
Impedance:
XLR: 50Ω
1/4": 50Ω
Sensitivity: -102 dBm @ 10-5 BER
Image rejection: > 70dB, typical
XLR output:
Impedance balanced Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio LED:
Red: 2dB below clip
Amber: 12dB below clip
Green: 50dB below clip
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments: XLR: 1 = ground, 2 = hot, 3 = cold 6.35mm (1/4") TRS: Tip = audio, Ring = no audio, Sleeve = ground

PG30
Polar pattern: Cardioid ­(unidirectional)
Output impedance: 1200Ω @1kHz
Output level: -52dBV/Pa­(2.5­mV)
Signal-to-noise ratio: 61dB,­ 1kHz­at­1­Pa
Maximum SPL: 125dB
Dynamic range (max.­SPL­to­A-weighted­noise­level): 92dB
Output Noise: 33dB ­(typical,­ A-Weighted)
Recommended Operating Voltage: +5VDC, ­10V­ max­ (pin­ 2­ to ­pin ­1)
Polarity: Positive­ sound­ pressure ­on ­diaphragm­ produces­ positive­ voltage ­on ­pins­ 3 ­and ­4­relative­ to ­pin ­1­ (ground)­ on ­the ­mini­ TA4F ­connector
Cable: 1.27­m­ (50") two-conductor­ shielded
Connector: Mini ­TA4F
Net Weight: 51.6­g ­(1.82­oz)
