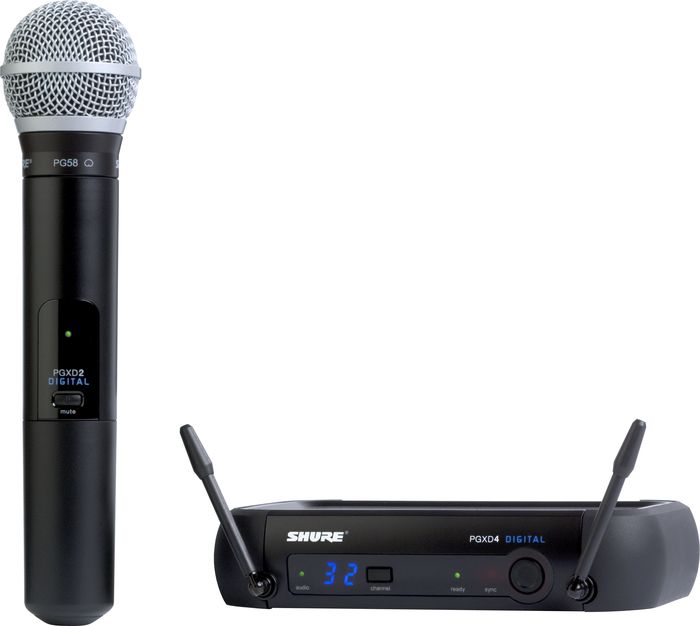

Shure PGXD24/PG58 Digital Wireless System with PG58 Mic

24-bit digital wireless receiver and top-notch dynamic mic/transmitter deliver strong, clean RF performance.






This PGXD24/PG58 Digital Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the legendary PG58, a professional quality microphone ideal for lead and backup vocal performance applications.

Engineered to be easy to operate, the Shure PG58 lets you capture the imagination of your audience so you can get your message across. Just as artists, visionaries and social leaders across generations and around the world have done with Shure products for more than 75 years.

The Shure PG58 has a tailored frequency response that is smooth, extended and is tuned specifically for vocal applications The cardioid polar pattern picks up the most sound from in front of the microphone and some sound from the sides and is less susceptible to feedback. The dynamic cartridge has a simple, rugged coil and handles extreme volume levels without distortion.

Besides the PG58 microphone, you also get a PGXD4 wireless receiver, PGXD2 handheld transmitter, padded case, and a microphone clip.

The PGXD2 transmitter features automatic setup, a multi-function LED Indicator (power, lockout, mute, low battery), and provides you with 8 hours of continuous use on 2 AA batteries. It gives you and your microphone a generous 200' (60m) operating range without losing audio quality.

The PGXD4 receiver offers 24-bit/48kHz accurate sound, offers technology for incredibly accurate sound, auto frequency selection, and greater reliability thanks to its true digital diversity.


Shure PGXD24/PG58 Digital Wireless System with PG58 Mic Features:


PGXD4 Wireless Receiver
24-bit / 48kHz digital technology for incredibly accurate sound
Automatic frequency selection locates a clear channel instantly
One-touch sync automatically syncs the transmitter and receiver
True digital diversity delivers rock-solid wireless signal reliability
Up to 5 systems can be used at once
1⁄4" and XLR audio outputs
Included padded carrying case for portability and protection

PGXD2 Handheld Transmitter Power, mute, and battery status LED
Up to 9 hours of continuous use from 2 AA batteries
200" (60m) operating range
10dB of adjustable gain
Lockable interface prevents accidental setting changes
Rugged construction for reliable performance show after show


Get pure digital sound without being bogged down by wires. Order this wireless system today!



Shure PGXD24/PG58 Digital Wireless System with PG58 Mic Specifications:



PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. ±38kHz deviation, 1kHz tone): XLR connector (into 3000Ω load): -2.5dBV 1/4" connector (into 10000Ω load): +10 dBV
Impedance:
XLR: 50Ω
1/4": 50Ω
Sensitivity: -102 dBm @ 10-5 BER
Image rejection: > 70dB, typical
XLR output:
Impedance balanced Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio LED:
Red: 2dB below clip
Amber: 12dB below clip
Green: 50dB below clip
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
Pin Assignments: XLR: 1 = ground, 2 = hot, 3 = cold 6.35mm (1/4") TRS: Tip = audio, Ring = no audio, Sleeve = ground

PGX2 Handheld Transmitter

Audio Input Level:
+2 dBV maximum at –10dB position
–8 dBV maximum at 0dB position
Gain Adjustment Range: 10dB
RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)
Dimensions including SM58 cartridge: 254mm x 51mm dia. (10" x 2")
Weight: 290g (10.2oz.) without batteries
Housing: Molded PC/ABS handle and battery cup
Power Requirements: 2 AA size alkaline or rechargeable batteries
Battery Life: > 8 hours (alkaline)

PG58 microphone
Microphone Type: Dynamic (moving coil)
Polar Pattern: Cardioid (unidirectional)
Frequency response: 60 to 15,000Hz
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector
Output Impedance (at 1000Hz): 300Ω
Sensitivity (at 1000Hz): -53dBV/Pa, (2.2 mV), 1 Pascal=94dB SPL
Electromagnetic Hum Sensitivity: 26dB equivalent SPL in a 1 millioersted field (60Hz)
Switch: Built-in On/Off switch
Connector: Three pin professional audio connector (male XLR type)
Case: Die cast metal handle, black matte finish; hardened silver colored, spherical steel mesh grille
Environmental Conditions: This microphone operates over a temperature range of -29 to 57° Celsius (-20 to 135° Fahrenheit), and at a relative humidity of 0 to 95%.
Weight: Net: 321g (11.3 oz) Packaged: 908g (2lb.)
