Fender Engine Room LVL12 12-output Isolated Power Supply

Give Your Pedals the Clean, Quiet Power They Deserve
With 12 isolated outputs delivering clean, quiet power, the Fender Engine Room LVL12 pedalboard power supply is ideal for large pedalboards. And if you have a mega board, the LVL12 offers an AC power outlet for daisy-chaining to a Fender LVL5 or LVL8 power supply, for a truly scalable power solution. Its chassis is constructed from rugged anodized aluminum for road-ready durability. And each power output features a 2-color LED indicator to confirm that power is flowing to your pedals. Whether you're playing out live or recording in your studio, you'll appreciate the pristine power provided by the Fender Engine Room LVL12 pedalboard power supply.


Cables included:

6 x 2.1mm barrel connector 24-inch (60cm) length
4 x 2.1mm barrel connector 18-inch (45cm) length
2 x 2.1mm barrel connector 12-inch (30cm) length
1 x 2.5mm to 2.1mm barrel
1 x 2.5mm to 2.1mm barrel reverse polarity
1 x 3.5mm TS to 2.1mm barrel
1 x 9V Battery clip to 2.1mm barrel
1x IEC daisy-chain cable (male to female)


Fender Engine Room LVL12 Features:

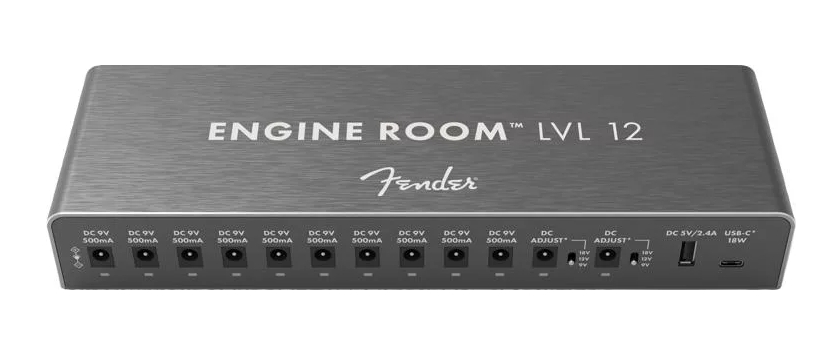

Pedalboard power supply with 12 isolated outputs for clean, reliable power: 10 x 9V DC (500mA) power outputs and 2 x 9V/12V/18V DC power outputs

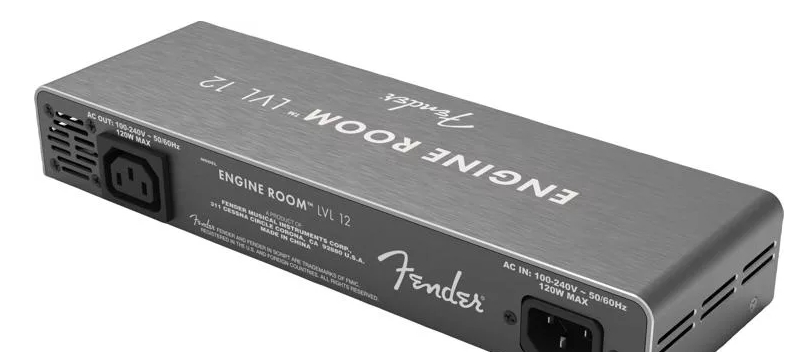

Perfect for large pedalboards; AC outlet allows you to daisy-chain another pedal power supply for a scalable power solution
Convenient USB-A and USB-C ports for charging peripheral devices
Rugged anodized aluminum chassis
2-color LED indicators show you when power is flowing to your pedals


Tech Specs

Type:Pedalboard Power Supply
Inputs:120V AC Standard IEC cable
Outputs:10 x 9V DC 500mA, 2 x 9V/12V/18V DC selectable
Manufacturer Part Number:0230100012

TH: www.music-blvd.com $270
