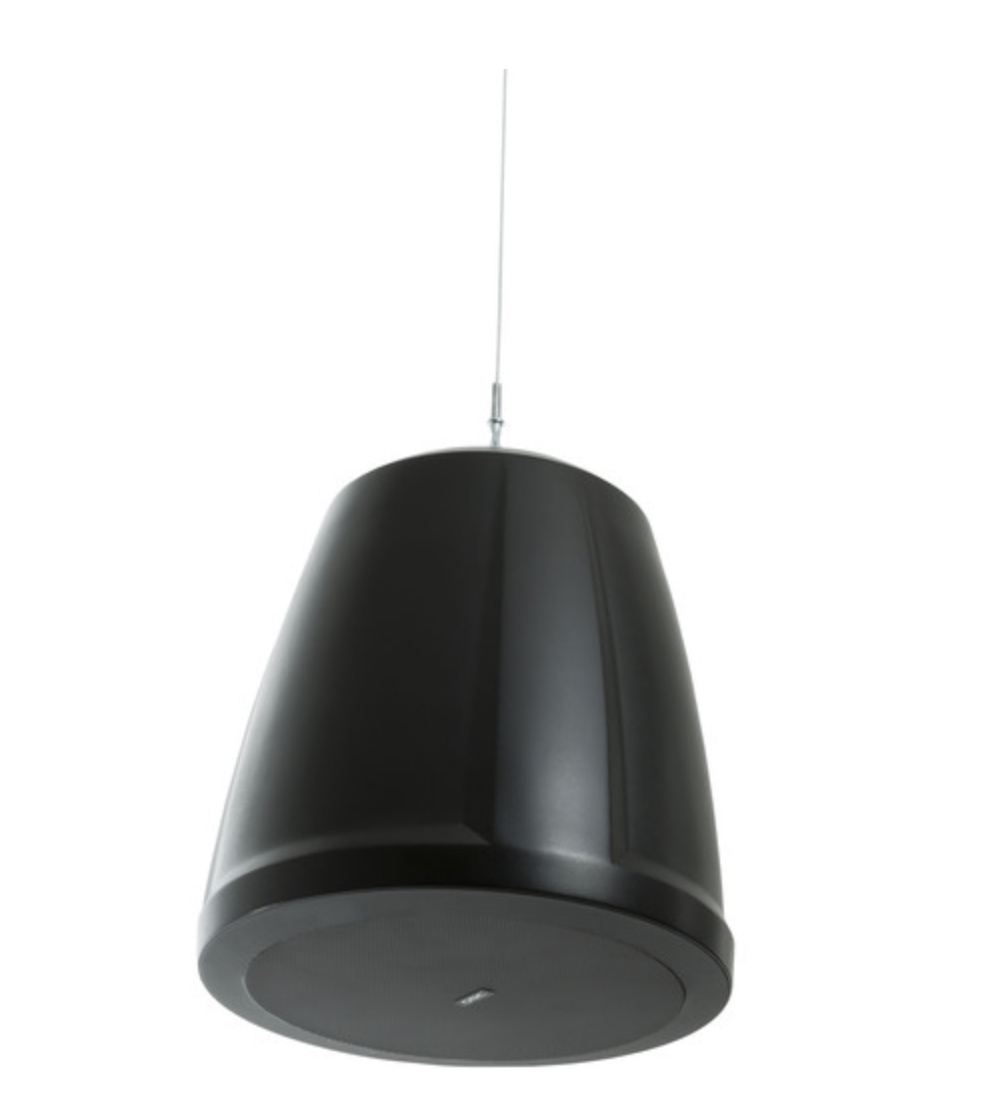

QSC AD-P4T AcousticDesign Series 4.5inch 2-Way 30W Pendant-Mount Loudspeaker

QSC AD-P4T-BK Overview





The black AcousticDesign Series QSC AD-P4T is a transformer-equipped 4.5" pendant-mount loudspeaker voiced to deliver tonal consistency throughout the AcousticDesign range of speakers, making them suitable for 70/100V or 16-ohm operation in a variety of foreground and background music applications.
Outfitted with a 4.5" weather-treated woofer and a 0.75" aluminum dome tweeter on a DMT waveguide, the AD-P4T offers broad 150° conical coverage and improved off-axis power while providing a frequency range of 65 Hz to 20 kHz (-10 dB). The speaker is capable of handling 30W RMS and producing a peak maximum SPL of 108 dB.
The AD-P4T utilizes a 4-pole Euroblock connector under a sealable input cover for easy wiring and protection from moisture. It features a UV-treated ABS enclosure and a magnetic steel grille with a blemish-free removable logo. Quick-link cable assemblies and slip-lock fasteners are supplied for efficient installation.









Designed for foreground and background music sound reinforcement in restaurant, retail, audio visual, education, and large system ancillary support applications as well as in concourses, casinos, transportation terminals, and worship facilities



Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications

4.5" weather-treated paper cone woofer with a 1" voice coil and a 0.75" aluminum dome tweeter

150° of conical coverage with improved off-axis power response reduces the number of loudspeakers required for even coverage

DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area

Rugged ABS enclosure is treated with UV inhibitors that prevent discoloration

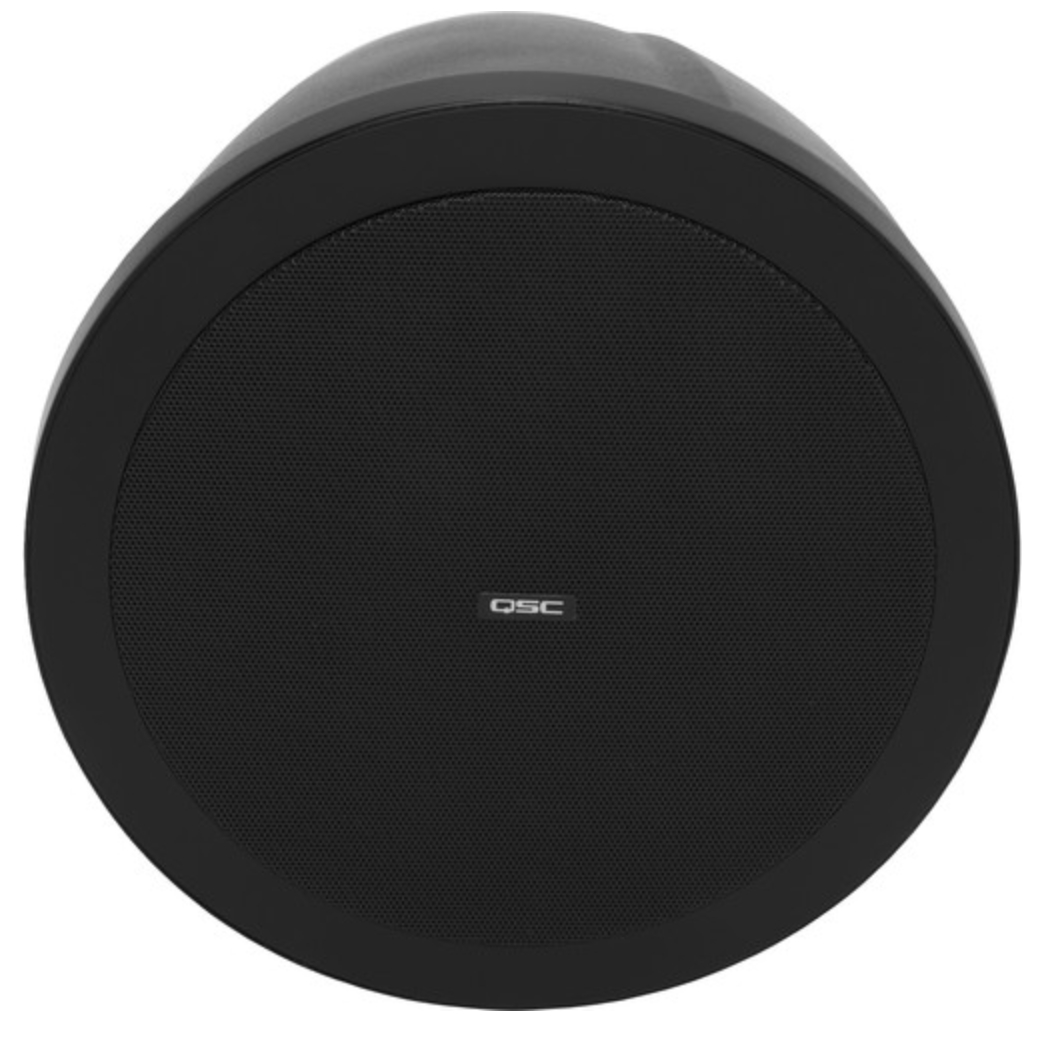

Snap-fit magnetic grille

Low-saturation, low-loss 70/100V transformer with 16-ohm bypass and a rotary selector located under the grille

4-pole Euroblock connector with loop-thru wiring located under a sealable input cover to prevent moisture at the terminals

Advanced voicing filter sets using QSC Intrinsic Correction are available through either Q-Sys processing or CXD amplifier platforms (available separately)

Includes two quick-link cable assemblies and slip-lock fasteners to speed installation

Blemish-free removable logo













Key Features


4.5" Woofer, 0.75" Aluminum Dome Tweeter
30W RMS Power Handling
150° Conical Coverage
108 dB Peak Maximum SPL
65 Hz to 20 kHz Frequency Range
Low-Saturation Multi-Tap Transformer
Supports 70V, 100V, or 16-Ohm Operation
Euroblock Connector for Easy Wiring
Includes Quick-Link Cable Assemblies



QSC AD-P4T-BK Specs


Speaker



Active or Passive
Passive


Number of Included Speakers
1


Speaker Configuration
2-Way


Power Handling
For 2 Hours / At Low-Z:30 W RMS


Recommended Amplifier Power
60 W


Constant Voltage / Transformer Taps
70 V:30 / 15 / 7.5 / 3.75 W or 16 Ohms Bypass100 V:30 / 15 / 7.5 W or 16 Ohms Bypass


Impedance
16 Ohms (Nominal, Transformer Bypassed)


Transformer Wattage
30 W


Enclosure Type
Sealed


Shielded
No





Drivers



HF Driver
1 x 0.75" / 1.91 cm Waveguide-Coupled Aluminum Dome Tweeter


LF Driver
1 x 4.5" / 11.43 cm Paper Woofer


LF Voice Coil
1" / 2.54 cm





Performance



Frequency Range
65 Hz to 20 kHz -10 dB


Maximum SPL
102 dB (Continuous)108 dB (Peak)


Sensitivity
87.9 dB


Coverage Angle
150° (Conical)


Directivity
4.5 (Directivity/Q Factor)6.5 dB (Directivity Index)


Maximum Input Voltage
22 V RMS





Connectivity



I/O Connectors
1 x Euroblock 4-Pole Speaker Input/Thru (Locking, Removable)


Maximum Wire Gauge
18 AWG





Environmental



Certifications
UL, as per Manufacturer


Water / Weather Resistance
Water Resistant


IP Rating
IP34


Operating Temperature
-4 to 122°F / -20 to 50°C





Physical



Color
Black


Mounting
1 x Suspension (Rear)


Construction Material
ABS, Metal Grille


Dimensions
10.7 x 9.3" / 27.18 x 23.62 cm


Weight
6.5 lb / 2.9 kg





THMS: www.music-blvd.com $245
